Remove/Install Fresh Air/Ram Air/Recirculation Flap Actuator Motor - AR83.10-P-2038LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253
Model 293

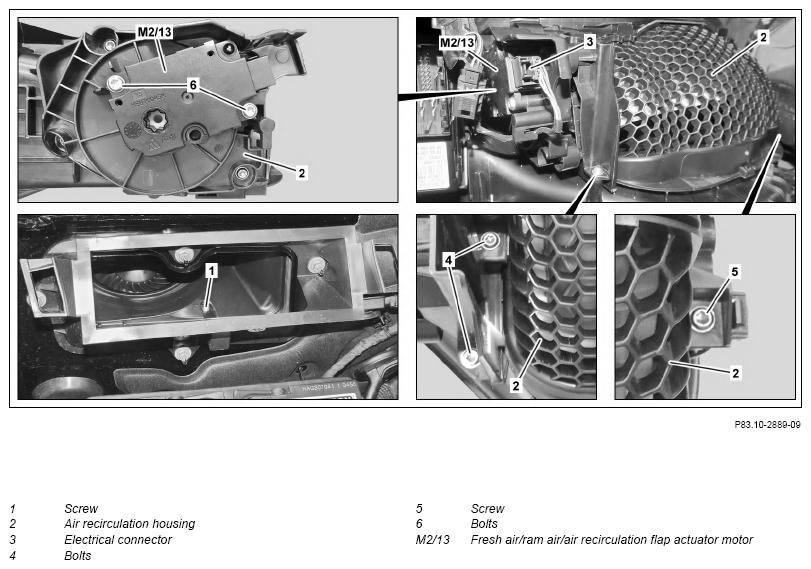

Fig 1: Fresh Air/Ram Air/Recirculation Flap Actuator Motor Components Location - Model 253 (Shown On Model 205)
Shown on MODEL 205 with CODE 581 (automatic air conditioning)
| Remove/install | |||
| 1 | Remove instrument panel. | Model 205, 253 | AR68.10-P-1000LW |
| Model 213 | AR68.10-P-1000LWE | ||
| Model 293 | AR68.10-P-1000EQ | ||
| 2 | Remove crossmember under instrument panel. | Model 213 | AR62.30-P-1250LWE |
| Model 205 Model 253 Model 293 |
AR62.30-P-1250LW | ||
| 3 | Remove screw (1) of recirculated air housing (2). | ||
| 4 | Disconnect electrical connector (3). | ||
| 5 | Unscrew screws (4, 5) and remove recirculated air housing (2). | ||
| 6 | Unscrew screws (6) and remove fresh air/ram air/air recirculation flap actuator motor (M2/13). | ||
| 7 | Install in the reverse order. | ||
| 8 | Connect diagnostic system, teach-in and normalize fresh air/ram air/air recirculation flap actuator motor (M2/13), and clear fault memory. | ||
| Model 205, 213, 253 | AD00.00-P-2000-04B | ||
| Model 293 | AD00.00-P-2000-06FR | ||
Adaptations → Teach-in processes → Teach-in of actuator motors → Normalizing of positioning motors |
