Remove/Install Climate Control Operating Unit In Rear Passenger Compartment - AR83.30-P-6640LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
with code 581 (Automatic air conditioning)
Model 213
with code 581 (Automatic air conditioning)
Model 253
with code 581 (Automatic air conditioning)
Model 293
with code 581 (Automatic air conditioning)
Shown on model 205
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear cover from center console. | AR68.20-P-2358LW | |
| 2 | Remove rear air vents (1). | Model 205, 213, 253 with code 581 (Automatic air conditioning) | AR83.10-P-4800LW |
| Model 293 with code 581 (Automatic air conditioning) | AR83.10-P-4802EQ | ||

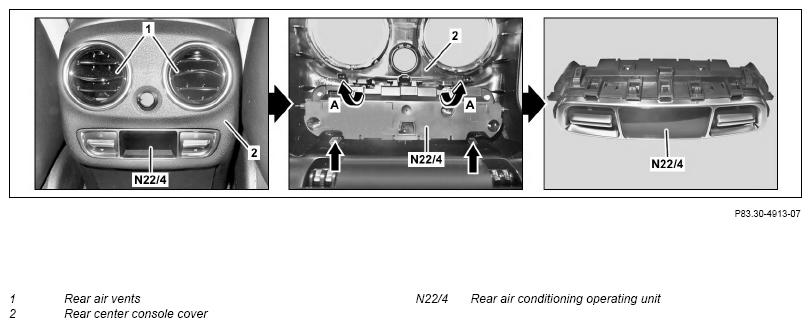

| 3 | Unclip rear air conditioning operating unit (N22/4) at bottom from rear center console cover (2) (arrows). | Fig 1 | |
| 4 | Guide top of rear air conditioning operating unit (N22/4) out of guides (arrows A) on rear center console cover (2) and remove. | ||
| 5 | Install in the reverse order. |
