Remove/Install Rear Air Vent - AR83.10-P-4800LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253
| Remove/install | |||
| 1 | Remove rear center console cover (2) | AR68.20-P-2358LW | |

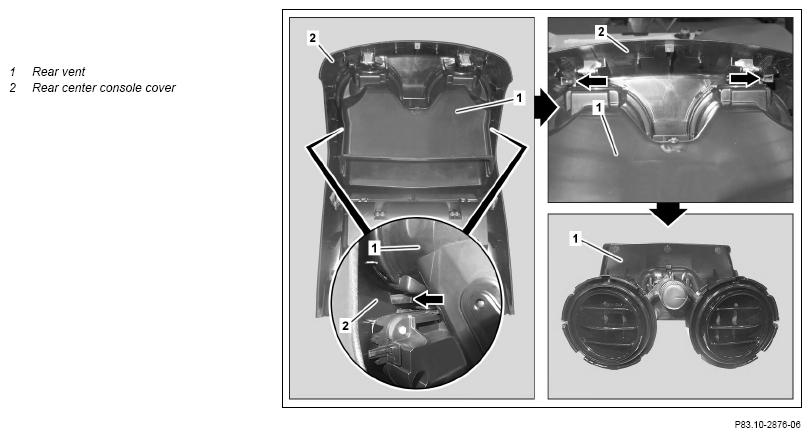

| 2 | Unclip rear vent (1) at top and bottom from rear center console cover (2) (arrows) and remove rear vent (1) | Fig 2 | |
| 3 | Install in the reverse order |
