Remove/Install Air Conditioning System/Climate Control, Control Unit - AR83.30-P-6600LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253
Model 293
Shown on model 213

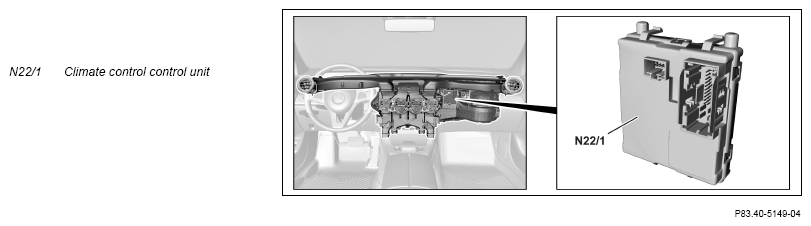

Fig 1: Air Conditioning System/Climate Control, Control Unit Components Location - Model 253 (Shown On Model 213)
Shown on model 213
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Carry out commissioning of climate control control unit (N22/1). | When replacing climate control control unit (N22/1). | |
| Model 205, 213, 253 | AD00.00-P-2000-04B | ||
| Model 293 | AD00.00-P-2000-06FR | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove glove box. | Model 213 | AR68.10-P-1402LWE |
| Model 205, 253, 293 | AR68.10-P-1400LW | ||

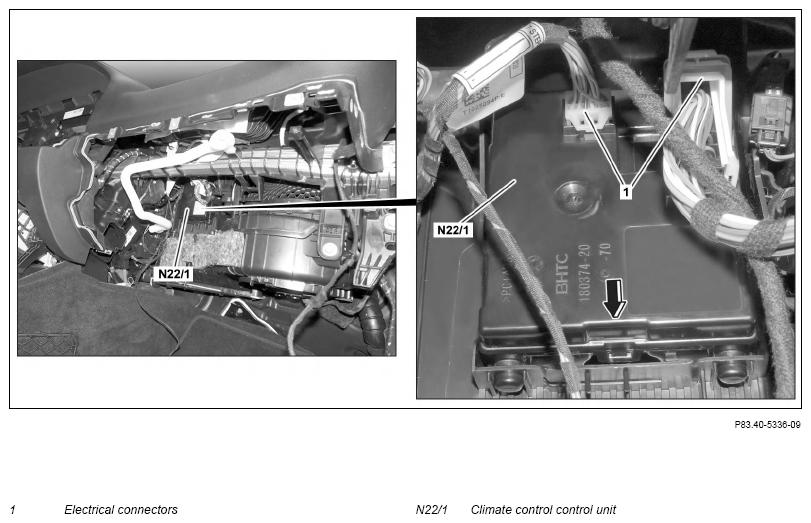

| 4 | Disconnect electrical connectors (1). | ||
| 5 | Push climate control control unit (N22/1) downwards (arrow) and remove. | ||
| 6 | Install in the reverse order. |
