Remove/Install Actuator Motor For Flap Of Right Footwell/Center Air Vents - AR83.10-P-2036LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 with code 581 (Automatic air conditioning)
Model 213 with code 581 (Automatic air conditioning)
Model 253 with code 581 (Automatic air conditioning)
Model 293 with code 581 (Automatic air conditioning)
Shown on model 205

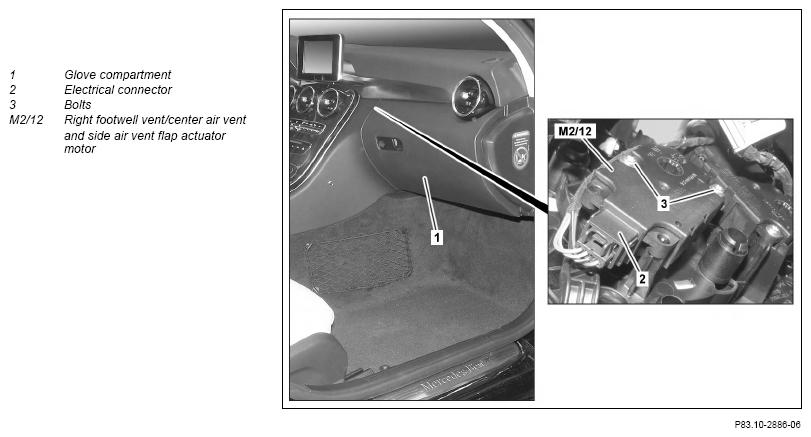

Fig 1: Actuator Motor For Flap Of Right Footwell/Center Air Vents Components Location - Model 253 With Code 581 (Shown On Model 205)
| Remove/install | |||
| 1.1 | Remove glove compartment (1). | Model 205.### 1#, 213.### 1#, 253.### 1#, 293.### 1# with code 581 (Automatic air conditioning) Model 213.### 1# with code 581 (Automatic air conditioning) |
AR68.10-P-1402LWE |
| Model 205.### 1#, 253.### 1#, 293.### 1# with code 581 (Automatic air conditioning) | AR68.10-P-1400LW | ||
| 1.2 | Remove trim under driver's side instrument panel. | Model 205.### 2#, 213.### 2#, 253.### 2#, 293.### 2# with code 581 (Automatic air conditioning) |
|
| Model 205.### 2#, 253.### 2# with code 581 (Automatic air conditioning) | AR68.10-P-1500LW | ||
| Model 213.### 2# with code 581 (Automatic air conditioning) | AR68.10-P-1501LWE | ||
| Model 293.### 2# with code 581 (Automatic air conditioning) | AR68.10-P-1501EQ | ||
| 2 | Disconnect electrical connection (2). | ||
| 3 | Unscrew screws (3) and remove right footwell/center air vent and side air vent flap actuator motor (M2/12). | ||
| 4 | Install in the reverse order. | ||
| 5 | Connect diagnostic system, teach-in and normalize right footwell/center air vent and side air vent flap actuator motor (M2/12), and clear fault memory. | ||
| Model 205, 213, 253 with code 581 (Automatic air conditioning) | AD00.00-P-2000-04B | ||
| Model 293 with code 581 (Automatic air conditioning) | AD00.00-P-2000-06FR | ||
Adaptations → Teach-in processes → Teach-in of actuator motors → Normalizing of positioning motors |
