Remove/Install Actuator Motor For Flap Of Defroster/Footwell/Center Air Vents - AR83.10-P-2037LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 with code 580 (Air-conditioning system)
Model 213 with code 580 (Air-conditioning system)
Model 253 with code 580 (Air-conditioning system)
Model 293 with code 580 (Air-conditioning system)
Shown on model 205

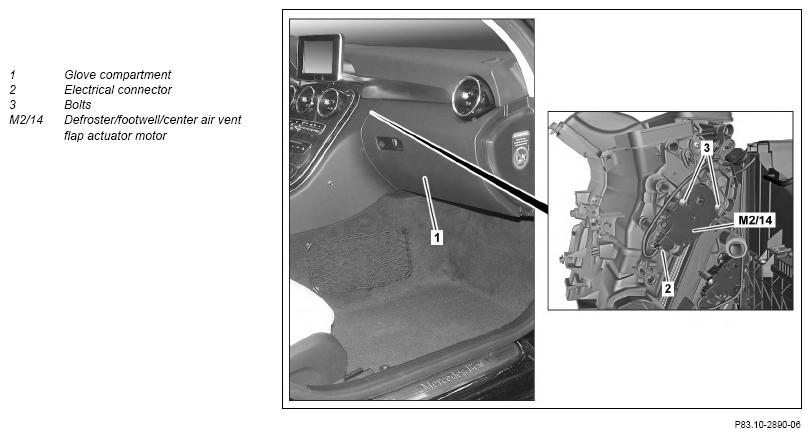

Fig 1: Actuator Motor For Flap Of Defroster/Footwell/Center Air Vents Components Location - Model 253 With Code 580 (Shown On Model 205)
| Remove/install | |||
| 1 | Remove glove compartment (1). | Model 213 with code 580 (Air-conditioning system) | AR68.10-P-1402LWE |
| Model 205, 253 with code 580 (Air-conditioning system) Model 293 with code 580 (Air-conditioning system) |
AR68.10-P-1400LW | ||
| 2 | Disconnect electrical connection (2). | ||
| 3 | Unscrew screws (3) and remove defroster/footwell/center air vent flap actuator motor (M2/14). | ||
| 4 | Install in the reverse order. | ||
| 5 |
Connect vehicle diagnosis system, teach in and normalize defroster/footwell/center air vent flap actuator motor (M2/14) and erase fault memory. | Model 205, 213, 253 with code 580 (Air-conditioning system) | AD00.00-P-2000-04B |
| Model 293 with code 580 (Air-conditioning system) Adaptations → Teach-in processes → Teach-in of actuator motors → Normalizing of positioning motors |
AD00.00-P-2000-06FR |
