Retrofit Illuminated Door Sill Molding - AZ82.20-P-0001LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.364/964)
except code U25 (Illuminated door sill panels with "Mercedes-Benz" lettering)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Move driver seat and front passenger seat towards rear | ||
| 2 | Disconnect battery ground line | ||
| AR54.10-P-0003LW | |||
| 3 | Remove left and right front inner door sills | ||
| 4 | Remove cover below left of instrument panel | ||
| AR68.10-P-1500LW | |||
| 5 | Remove cover below right dashboard | ||
| AR68.10-P-1520LW | |||
| 6 | Remove side paneling of instrument panel at left | ||
| 7 | Remove left and right front door sills | ||
| Fig 1 | |||
| 8 | Remove front left floor covering | ||
| AR68.20-P-2050LW | |||
| 9 | Remove front right floor covering | ||
| AR68.20-P-2070LW | |||
| Install | |||
| 10 | Retrofit wiring harness for illuminated door sill moldings | AZ82.20-P-0001-04LWG | |
| *BA00.19-P-1019-01E | |||

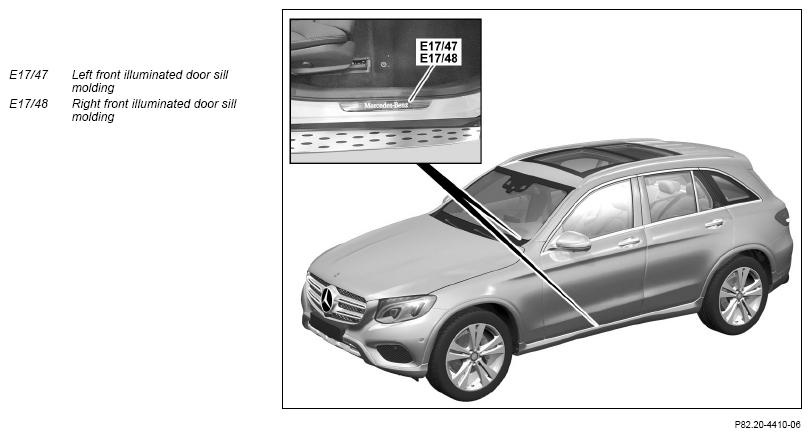

| 11 | Retrofit left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48) | AZ82.20-P-0001-01LWG | |
| 12 | Retrofit illuminated door sill molding control unit | AZ82.20-P-0001-05LWG | |
| Self-adhesive felt strip 40X2 mm | *BR00.45-Z-1074-01A | ||
| Binder Duotec® Mushroom in mushroom velcro - with adhesive 32 | *BR00.45-Z-1084-02A | ||
| 13 | Install remaining parts | ||
| Update Vehicle Documentation (VeDoc) | |||
| 14 | Attach a note "Illuminated door sill moldings retrofitted as per AZ82.20-P-0001LWG" under field organization texts for DG 68 and DG 82 | ||
| Check | |||
| 15 | Cover light sensor in windshield and perform function check on left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48) | The left front illuminated door sill molding (E17/47) or right front illuminated door sill molding (E17/48) switches off automatically approx. 5 min after opening a door or after automatic shutoff of the ambient illumination. |
GROUND POINTS
| Number | Designation | Model 253 (except 253.99) | Model 253.99 | ||
|---|---|---|---|---|---|
| BA00.19-P-1019-01E | Right front footwell ground point (CAN) | W15/8 | Nm | 10 | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1074-01A | Self-adhesive felt strip 40X2 mm | A 001 983 23 10 |
| BR00.45-Z-1084-02A | Binder Duotec® Mushroom in mushroom velcro - with adhesive 32 | Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info@klettband-technik.de http://www.klettband-technik.de |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see EPC) | Scope of supply of illuminated door sill moldings | 1 |
| KG 98 (see EPC) | Electric line bridge | 1 |
