Replace Tires - AR40.10-P-1030EW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297

MODEL 222, 223

except code Z07 (B7 armoring on special protection version)

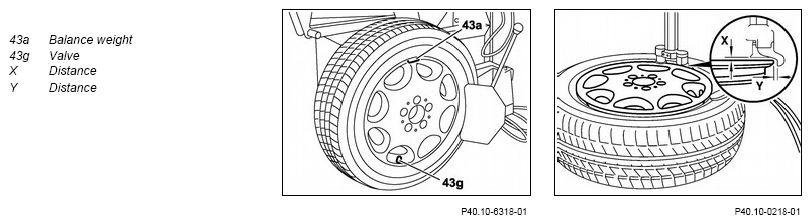

G14547573Courtesy of MERCEDES-BENZ USA

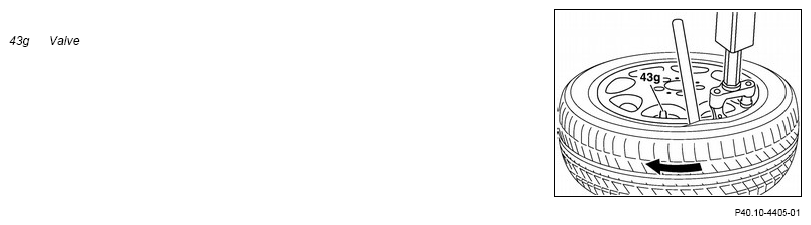

G14547574Courtesy of MERCEDES-BENZ USA

With code 475 (Tire pressure monitor)

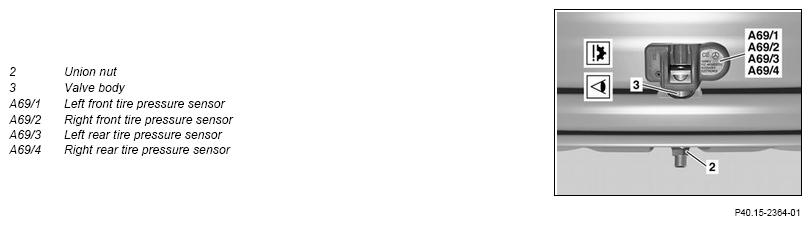

G14547575Courtesy of MERCEDES-BENZ USA
Notice Information on tires/rims   AH40.10-P-9411-01A
  Tires - General information   AH40.10-D-1020-01KOA
  Detach
1 Detach complete wheel Model 205, 206, 213, 217, 232, 238, 253, 297
Model 222, 223
except code Z07 (B7 armoring on special protection version)		 AR40.10-P-1102A
    Model 292 AR40.10-P-1100GQC
REFER TO MAINTENANCE   Model 117, 156, 176, 242, 246 AP40.10-P-4050AK
REFER TO MAINTENANCE   Model 172 AP40.10-P-4050V
REFER TO MAINTENANCE   Model 207 AP40.10-P-4050CW
REFER TO MAINTENANCE   Model 166, 212, 218, 231 AP40.10-P-4050EW
    IMPORTANTWIS Service Media
multimedia:A supplement to the article is available.

2.1 Detach wheel balance weight (43a) using assembly tool For clamped wheel balance weight (43a).
    SPECIAL TOOL Assembly tool Fig 2
2.2 Remove wheel balance weight (43a) using removal tool For glued wheel balance weight (43a).
NOTES Do not use hard, pointed or sharp-edged tools.
Otherwise the surface of the disk wheels may be damaged.
    SPECIAL TOOL Removal tool Fig 1
3 Unscrew valve element from valve (43g)
4 Drain TIREFIT tire sealant out of tire After using the TIREFIT tire sealant.
    Model 117, 156, 176, 242, 246 AR40.10-P-1080AK
    Model 166, 172, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 253, 292, 297
Model 222, 223
except code Z07 (B7 armoring on special protection version)		 AR40.10-P-1080EW
5 Position the press-off blade of the tire mounting device on the tire bead flank
REFER TO SPECIAL TOOLS 000 588 00 83 00 Tire mounting device   WS40.00-P-0006B
    NOTES Do not position bead breaker shovel on tire sidewall.
The carcass can be damaged otherwise.
    NOTES Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM)) except code Z07 (B7 armoring on special protection version)
Do not position bead breaker shovel on the inner and outer side of the tire near the valve (43g).
The tire pressure sensor (A69/1, A69/2, A69/3 A69/4) may be damaged otherwise.
NOTES Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM)) except code Z07 (B7 armoring on special protection version)
Do not position the bead breaker shovel at the opposing bead edge of the valve (43g).
The tire pressure sensor (A69/1, A69/2, A69/3, A69/4) may be damaged otherwise.
6 Press inner and outer bead flank over safety bead seats and into drop center of disk wheel
7 Fasten disk wheel on tire mounting device
8 Apply coating of assembly paste onto disk wheel flange and tire beads NOTES Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM)) except code Z07 (B7 armoring on special protection version)
Do not grease the tire pressure sensor (A69/1, A69/2, A69/3, A69/4).
Otherwise, the tire pressure sensor (A69/1, A69/2, A69/3, A69/4) may malfunction.
9 Position disk wheel on tire mounting device so that the valve (43g), when viewed in the direction of rotation (arrow) of the disk wheel, i is located 10 cm behind the mounting head
10 Align mounting head at small distances (X, Y) to disk wheel
11.1 Use assembly lever to lever the tire beads over the mounting lug of the mounting head and detach the tire from the disk wheel For tires without emergency running characteristics.
NOTES Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM)) except code Z07 (B7 armoring on special protection version)
Do not exert any force on the tire pressure sensor (A69/1, A69/2, A69/3, A69/4).
Otherwise it will be damaged.
11.2 Position hold-down tool on upper side of bead edge and press tire into drop center, then position hold-down tool on lower side and remove tire For run-flat tires.
    NOTES Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM)) except code Z07 (B7 armoring on special protection version)
Do not exert any force on the tire pressure sensor (A69/1, A69/2, A69/3, A69/4).
Otherwise it will be damaged.
INSPECT Check
12 Check condition of disk wheel   AR40.10-P-1010-01A
13 Check the tire pressure sensor (A69/1, A69/2, A69/3, A69/4) and the valve body (3) in installed condition for signs of damage Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM))
except code Z07 (B7 armoring on special protection version)
NOTES Do not retighten union nut (2).
The tire pressure sensor (A69/1, A69/2, A69/3, A69/4) will be damaged otherwise.
NOTES Only use plastic valve caps.
Otherwise corrosion damage may occur.
If the union nut (2) or the tire pressure sensor (A69/1, A69/2, A69/3, A69/4) is visibly loose or if damage is visible.
↓
Replace tire pressure sensor (A69/1, A69/2, A69/3, A69/4).
CLEAN Clean
14 Clean tire pressure sensor (A69/1, A69/2, A69/3, A69/4) using a clean lint-free cloth Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM))
except code Z07 (B7 armoring on special protection version)
NOTES Do not use compressed air, solvents or cleaners.
The tire pressure sensor (A69/1, A69/2, A69/3 A69/4) will be damaged otherwise.
  Attach
15 Install new valve (43g) Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 except code 475 (Tire pressure monitor (TPM))
Model 222, 223 except code 475 (Tire pressure monitor (TPM))
except code Z07 (B7 armoring on special protection version)
16 Apply coating of assembly paste to shoulders of disk wheel and tire bead of new tire NOTES Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM)) except code Z07 (B7 armoring on special protection version)
Do not grease the tire pressure sensor (A69/1, A69/2, A69/3, A69/4).
Otherwise, the tire pressure sensor (A69/1, A69/2, A69/3, A69/4) may malfunction.
17 Position disk wheel on tire mounting device so that the valve (43g) is approximately 180° opposite the mounting head
REFER TO SPECIAL TOOLS 000 588 00 83 00 Tire mounting device   WS40.00-P-0006B
18 Place new tire at an angle on disk wheel and align mounting head at small distances (X, Y) to disk wheel IMPORTANT Observe running direction on unidirectional tires.
Observe the markings indicating the inside and outside of the tire.
On vehicles with mixed tires observe the correct assignment of the tire to disk wheel.
19.1 Pull tire over shoulder onto disk wheel using the tire mounting device For tires without emergency running characteristics.
NOTES Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM)) except code Z07 (B7 armoring on special protection version)
Do not exert any force on the tire pressure sensor (A69/1, A69/2, A69/3, A69/4).
Otherwise it will be damaged.
IMPORTANT Load the tire beads as little as possible.
19.2 Position hold-down tool on bead edge, push tire into drop center, then position the bead protector at the traction point, and pull tire using tire mounting device over the flange onto the disk wheel For run-flat tires.
NOTES Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 242, 246, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM)) except code Z07 (B7 armoring on special protection version)
Do not exert any force on the tire pressure sensor (A69/1, A69/2, A69/3, A69/4).
Otherwise it will be damaged.
IMPORTANT Load the tire beads as little as possible.
20 Align light spots of tire and disk wheel with each other
21 Remove disk wheel with tire from tire mounting device
22 Unscrew valve element from valve (43g) Only if valve (43g) was replaced.
23 Inflate tire NOTES The tire pressure may not exceed 3.3 bar.
Otherwise the tire bead may be damaged.
IMPORTANT The tire bead must slip uniformly over the rim shoulder.
24 Screw valve element into valve (43g)
25 Correct tire inflation pressure
26 Balance complete wheel Model 117, 156, 176, 242, 246 AR40.10-P-1040AK
    Model 166, 172, 205, 206, 207, 212, 213, 217, 218, 232, 238, 253, 292, 297
Model 222, 223
except code Z07 (B7 armoring on special protection version)		 AR40.10-P-1040EW
    Model 231 AR40.10-P-1040A
27 Mount complete wheel Model 205, 206, 213, 217, 232, 238, 253, 297
Model 222, 223
except code Z07 (B7 armoring on special protection version)		 AR40.10-P-1102A
REFER TO MAINTENANCE   Model 292 AR40.10-P-1100GQC
REFER TO MAINTENANCE   Model 117, 156, 176, 242, 246
Model 172		 AP40.10-P-4050AK
REFER TO MAINTENANCE     AP40.10-P-4050V
REFER TO MAINTENANCE   Model 207 AP40.10-P-4050CW
REFER TO MAINTENANCE   Model 166, 212, 218, 231
IMPORTANTWIS Service Media
multimedia:A supplement to the article is available.
 AP40.10-P-4050EW
28.1 Activate tire pressure monitoring Model 117, 156, 176, 242, 246
Model 166, 172, 205, 206, 207, 212, 213, 217, 218, 231, 232, 238, 253, 292, 297 with code 475 (Tire pressure monitor (TPM))
Model 222, 223 with code 475 (Tire pressure monitor (TPM))
except code Z07 (B7 armoring on special protection version)
    Model 206, 232, 297 with code 475 (Tire pressure monitor (TPM))
Model 223 with code 475 (Tire pressure monitor (TPM))
except code Z07 (B7 armoring on special protection version)		 AR40.15-P-0101-01S
    Model 213, 238
with code 475 (Tire pressure monitor (TPM))		 AR54.30-P-1001-01LWE
    Model 253 up to model year 2020
with code 475 (Tire pressure monitor (TPM))		 AR54.30-P-1001-01LWG
    Model 292
with code 475 (Tire pressure monitor (TPM))		 AR54.30-P-1001-01GQC
    Model 217 with code 475 (Tire pressure monitor (TPM))
Model 222 with code 475 (Tire pressure monitor (TPM))
except code Z07 (B7 armoring on special protection version)		 AR54.30-P-1001-01LC
    Model 166, 172, 205, 207, 212, 218, 231 with code 475 (Tire pressure monitor (TPM)) AR54.30-P-1000-02RAU
    Model 117, 156, 176, 242, 246 AR54.30-P-1001-01RAE
28.2 Restart tire pressure loss warning Model 117, 156, 166, 172, 176, 205, 206, 207, 212, 213, 217, 218, 231, 238, 242, 246, 253, 292, 297 with code 477 (Tire pressure loss warner)
Model 222, 223 with code 477 (Tire pressure loss warner)
except code Z07 (B7 armoring on special protection version)
Fig 1: Identifying Removal Tool (129 589 00 59 00)
G13657977Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Assembly Tool (124 589 17 63 00)
G13657981Courtesy of MERCEDES-BENZ USA
