Balancing Wheels - AR40.10-P-1040EW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 172, 190, 205, 206, 207, 212, 213, 217, 218, 222, 223, 232, 238, 253, 292, 293, 297
MODEL 463
as of Model year 2019
| Risk of death . Death may occur if body parts are drawn into rotating vehicle parts. | Do not insert your hand into rotating parts. Wear closed and snug-fitting work clothes. Secure area of rotating vehicle components against unauthorized access. | AS00.00-Z-0004-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Remove | |||
| 1 | Remove wheel and tire assemblies. | Model 205, 206, 213, 217, 222, 223, 232, 238, 293, 297 | AR40.10-P-1102A |
| Model 463 as of model year 2019 |
AR40.10-P-1102XG | ||
| Model 292 | AR40.10-P-1100GQC | ||
| Model 172 | AP40.10-P-4050V | ||
| Model 207 | AP40.10-P-4050CW | ||
| Model 166, 212, 218 | AP40.10-P-4050EW | ||
| Model 190 | AR40.10-P-1100RQ | ||

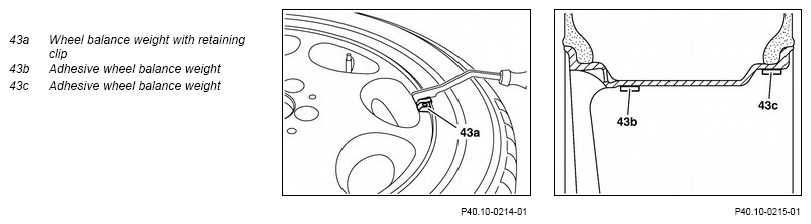

| 2.1 | Use assembly tool to remove wheel balance weights with retaining clamp (43a). | For balance weights with retaining clamp (43a). | |
| Fig 2 | |||
| 2.2 | Remove bonded wheel balance weights (43b, 43c) using removal tool. | With bonded wheel balance weights (43b, 43c). Do not use hard, pointed or sharp-edged tools Otherwise, the surfaces of the disk wheels will be damaged. |
|
| Fig 1 | |||
| Clean | |||
| 3 | Clean wheel and tire assemblies. | Remove soiling from wheel and tire assembly before balancing. Otherwise, the measurement result will be incorrect. |
|
| Perform stationary balancing of wheel-and-tire assemblies | |||
| 4 | Fasten wheel-and-tire assemblies to stationary balancing machine and balance them. | ||
| 000 588 12 21 00 Balancing machine | WS40.00-P-0024B | ||
| Install | |||
| 5 | Mount wheel and tire assemblies. | Model 205, 206, 213, 217, 222, 223, 232, 238, 293, 297 | AR40.10-P-1102A |
| Model 463 as of model year 2019 |
AR40.10-P-1102XG | ||
| Model 292 | AR40.10-P-1100GQC | ||
| Model 172 | AP40.10-P-4050V | ||
| Model 166, 212, 218 | AP40.10-P-4050EW | ||
| Model 207 | AP40.10-P-4050CW | ||
| Model 190 | AR40.10-P-1100RQ | ||
| Perform dynamic balancing of wheel and tire assemblies | |||
| 6 | Deactivate the ESP® control unit (ESP®). | ||
| 7 | Balance the wheel and tire assemblies using the dynamic balancing machine on the vehicle | Drive the wheel and tire assemblies on the drive axle using vehicle engine only. Otherwise, the differential will be damaged. Perform stationary balancing of the wheel-and-tire assemblies first. The hood, vehicle doors, trunk lid or the liftgate must be closed. |
|
| 8 | Activate the ESP®. |
