Disassemble, Assemble Planetary Gear System - AR28.50-P-1003LWX
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205, 253 With Transmission 725.0 (except 725.09) with code M005 (4MATIC)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Disassemble | |||
| 1 | Disassemble transfer case | AR28.10-P-1004LWX | |
| 2 | Position planetary gear set (5) on workshop press | Workshop press |
|
| 3 | Place drift (2) centrally on planetary gear set (5) | Fig 1 | |
| 4 | Align planetary gear set (5) centrally under piston (1) | ||
| 5 | Apply pressure to drift (2) until retaining ring (3) can be removed | Workshop press |
|

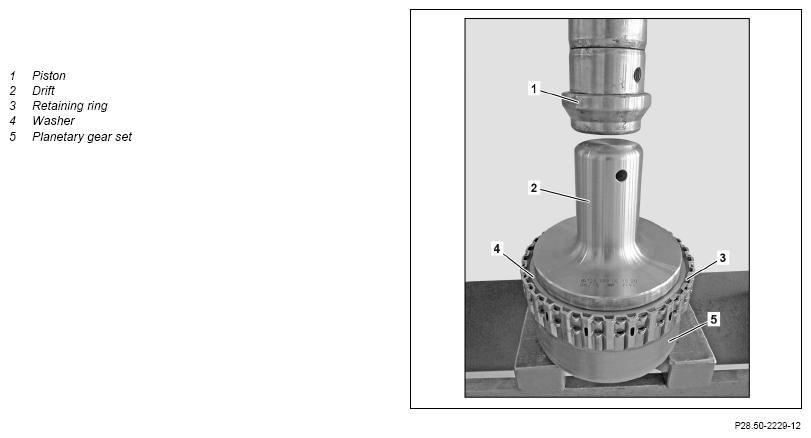

| Fig 1 | |||
| 6 | Remove retaining ring (3) from planetary gear set (5) | ||
| 7 | Mark direction of installation on retaining ring (3) | ||
| 8 | Drain pressure on workshop press | Workshop press |
|
| 9 | Remove drift (2) and retaining ring (3) | Fig 1 | |
| 10 | Remove washer (4) from planetary gear set (5) | ||
| 11 | Mark installation position on washer (4) | ||
| 12 | Remove clutch plates and intermediate plates from planetary gear set (5) | ||
| Assemble | |||
| 13 | Install new clutch plates and new intermediate plates in planetary gear set (5) | ||
| 14 | Install washer (4) in planetary gear set (5) | ||
| 15 | Place drift (2) centrally on planetary gear set (5) | Fig 1 | |
| 16 | Align planetary gear set (5) centrally under piston (1) using centered drift (2) | Fig 1 | |
| 17 | Place retaining ring (3) loosely on planetary gear set (5) | ||
| 18 | Apply pressure to drift (2) until retaining ring (3) can be installed | Workshop press |
|
| Fig 1 | |||
| 19 | Install retaining ring (3) | ||
| 20 | Drain pressure on workshop press | Workshop press |
|
| 21 | Remove drift (2) | Fig 1 | |
| 22 | Remove planetary gear set (5) from workshop press | Workshop press |
|
| 23 | Assemble transfer case | AR28.10-P-1004LWX |
