Remove/Install Electric Machine Interlock Circuit Contact Carrier - AR08.10-P-0016OLG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
MODIFICATION NOTES
| 07.07.2021 | Check sealing ring (4) for damage. | Operation step 5. |

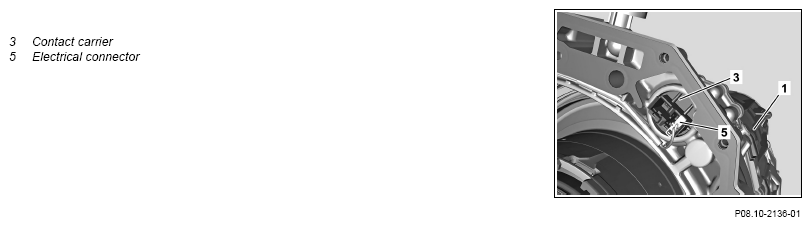

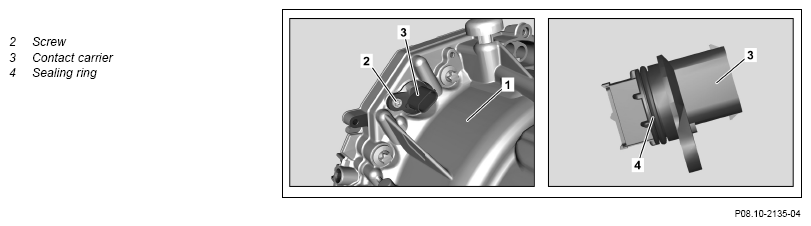

Fig 1: Electric Machine Interlock Circuit Contact Carrier Components Location - Model 253 With Transmission 725.0 With Code ME05
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Notes on technical cleanliness when working on high-voltage on-board electrical system | AH54.00-P-0004-01RFW | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on electric machine | Model 205.013/053/213/253 with transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Model 253.311/353/911/953 with transmission 725.047 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AH08.10-P-0001-01MRD |
| Remove/install | |||
| 1 | Remove cap of electric machine. | AR08.10-P-0004OLG | |
| 2 | Release and disconnect the electrical connector (5). | ||
| 3 | Remove screw (2). | *BA27.10-P-1017-04H | |
| 4 | Remove contact carrier (3). | ||
| 5 | Check sealing ring (4) for damage. | If damage is present: ↓ Replace contact carrier (3). |
|
| 6 | Install in the reverse order. |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0/1 | |
|---|---|---|---|
| BA27.10-P-1017-04H | Screw/bolt, interlock line contact carrier to torque converter housing | Nm | 8 |
