Empty/Fill Fuel Tank - AR47.10-P-4001RF

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253

Shown on fuel tank except code 916 (Fuel tank with large capacity - volume 1)

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Draining
1	Open fuel filler flap and fuel filler cap.
2	Connect ground line of tank emptying device with vehicle.
	000 588 02 71 00 Pump	Pay attention to operator's manual from equipment manufacturer.	WS47.00-P-0017B

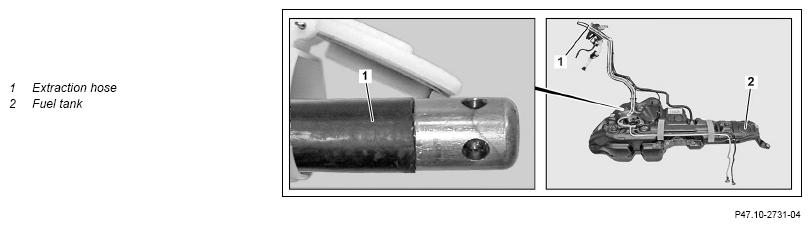

3	Check extraction hose (1) for damage and ridging.	If problems exist, ↓ Use new extraction hose (1). Use only the prescribed extraction hose (1) from Sucher and Plank (Model 1700094). Only this extraction hose (1) can be pulled out of the filler neck again due to its special form. Non-observance leads to damage on the check valve and fuel tank (2).
4	Push end of extraction hose (1) through filler neck and filler pipe into right chamber of fuel tank (2).
5	Using fuel tank emptying device, pump fuel out of right chamber of fuel tank (2).
6	Remove fuel pump.	Model 253 with Engine 177, 264, 274, 276, 651, 654.9, 656 with code 916 (Fuel tank with large capacity - Volume 1)	AR47.20-P-5710RF
7	Push end of extraction hose (1) through right chamber into left chamber of fuel tank (2).	Model 253 with Engine 177, 264, 274, 276, 651, 654.9, 656 with code 916 (Fuel tank with large capacity - Volume 1) Handle extraction hose (1) carefully. If this is not done observed, damage can occur to components installed in the fuel tank (2).
8	Using fuel tank emptying device, pump fuel out of left chamber of fuel tank (2).	Model 253 with Engine 177, 264, 274, 276, 651, 654.9, 656 with code 916 (Fuel tank with large capacity - Volume 1)
	Filling
9	Install fuel pump.	Model 253 with Engine 177, 264, 274, 276, 651, 654.9, 656 with code 916 (Fuel tank with large capacity - Volume 1)	AR47.20-P-5710RF
10	Push extraction hose (1) through filler neck of fuel tank (2).
11	Using fuel tank emptying device, pump fuel into fuel tank (2).
	000 588 02 71 00 Pump		WS47.00-P-0017B
		Fuel tank capacity	*BF47.10-P-1001-01I
12	Pull extraction hose (1) out of filler neck.
13	Close fuel filler cap and fuel filler flap.
14	Remove ground line of tank emptying device from vehicle and remove tank emptying device.

FUEL TANK

Number	Designation			Model 253 except code 916	Model 253 with code 916
BF47.10-P-1001-01I	Fuel tank capacity	Total filling capacity	Liter	50	66
BF47.10-P-1001-01I	Fuel tank capacity	Reserve capacity	Liter	7	7
