Wiring Diagram For Tire Pressure Monitor Control Unit - PE40.15-P-2101-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 475 (Tire pressure monitoring system)
Control unit N88
Model 253.99 as of model year 2019
with code 475 (Tire pressure monitoring system)
with code 9O1 (Fuel cell pre-installation)
Control unit N88
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 32L |
| CAN HMI | User interface CAN | 9K |
| Code 901 | Fuel cell retrofitting | 5D |
| Code 901 | Fuel cell retrofitting | 6D |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f467 | Fuse 467 | 5L |

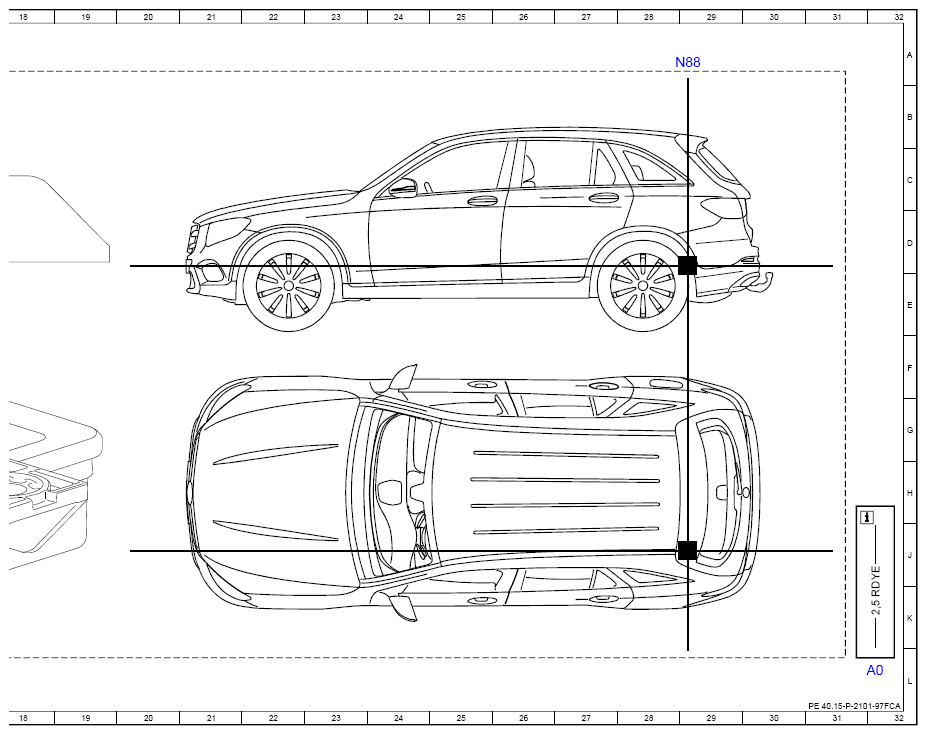

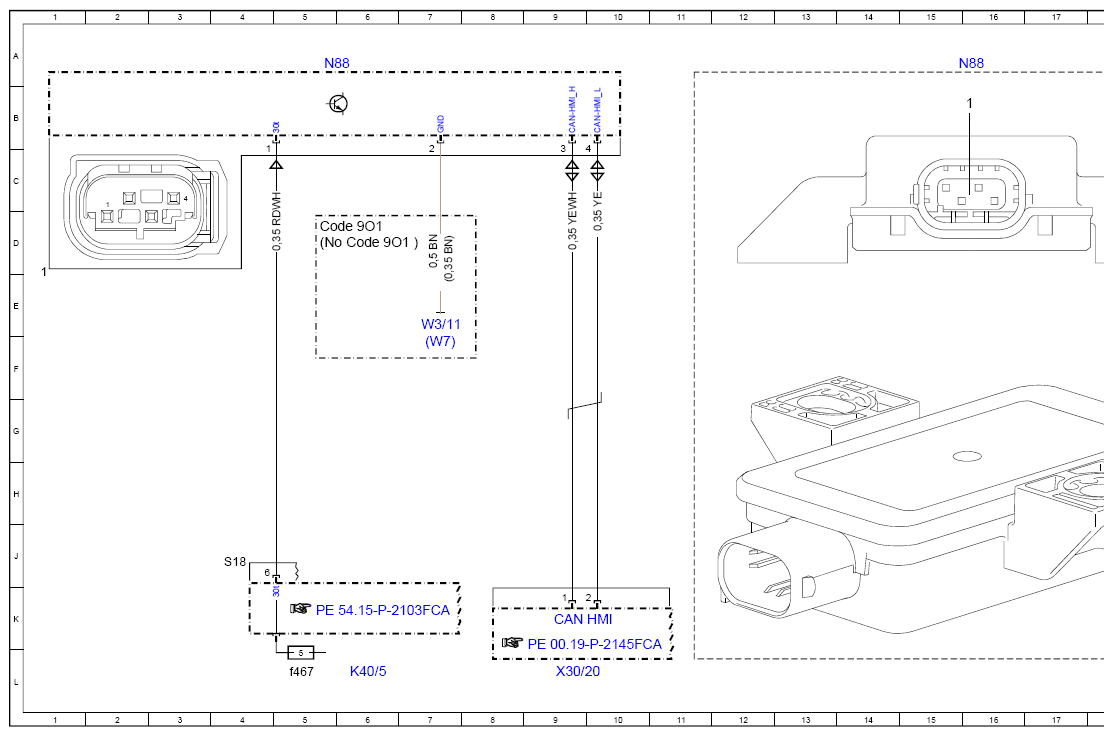

| N88 | Tire pressure monitor control unit | 5A |
| N88 | Tire pressure monitor control unit | 16A |
| N88 | Tire pressure monitor control unit | 29A |
| W3/11 | Left rear wheel well ground point | 7E |
| W7 | Right wheel house trunk ground point | 7F |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 9L |
