Remove/Install Rear Switching Module - AR80.61-P-0011LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.0/1/2/3 with code P17 (KEYLESS-GO package)
Model 213 with code P17 (KEYLESS-GO package)
Model 253 with code P17 (KEYLESS-GO package)
MODIFICATION NOTES
| 11.08.2016 | Repair method has been revised | Operation steps 1 to 3 |

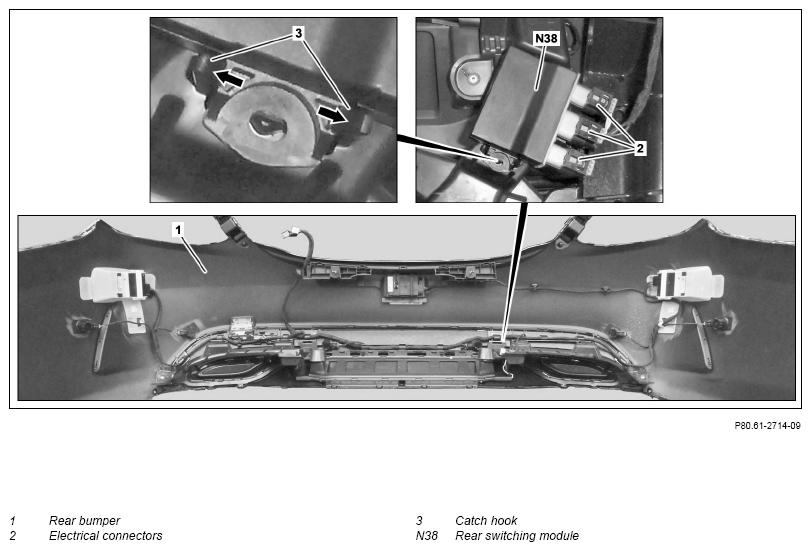

Model 205.0/1/2/3, 253, shown on Model 205.0

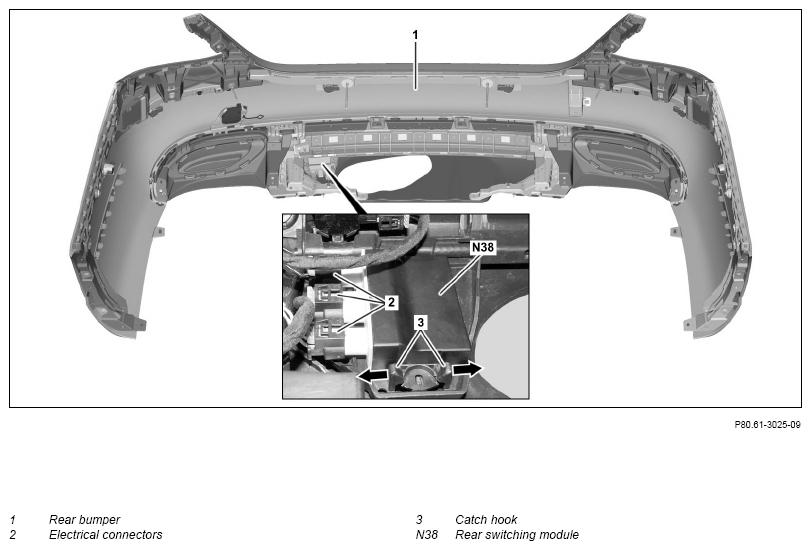

Model 213, shown on Model 213.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove rear bumper (1) | Model 205.0/1/2/3, 253 with code P17 (KEYLESS-GO package) Model 205.2 with code P17 (KEYLESS-GO package) |
AR88.20-P-2200LWS |
| Model 205.0/1/3 with code P17 (KEYLESS-GO package) | AR88.20-P-2200LW | ||
| Model 253 with code P17 (KEYLESS-GO package) | AR88.20-P-2200LWG | ||
| 1.2 | Extend trailer hitch | Model 213 with code 550 (Trailer coupling) with code P17 (KEYLESS-GO package) |
|
| 2 | Raise vehicle | Model 213 with code P17 (KEYLESS-GO package) | AR00.60-P-1002LWG |
| 3 | Press catch hook (3) (arrows) apart and unclip rear switching module (N38) from bracket and remove | ||
| 4 | Separate electrical connectors (2) | ||
| 5 | Install in the reverse order |
