Overview Of System Components For Overall Network (GVN) - GF00.19-P-9997RFM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
as of model year 2019
Model 253 (except 253.99)
as of model year 2020
Model 253.99

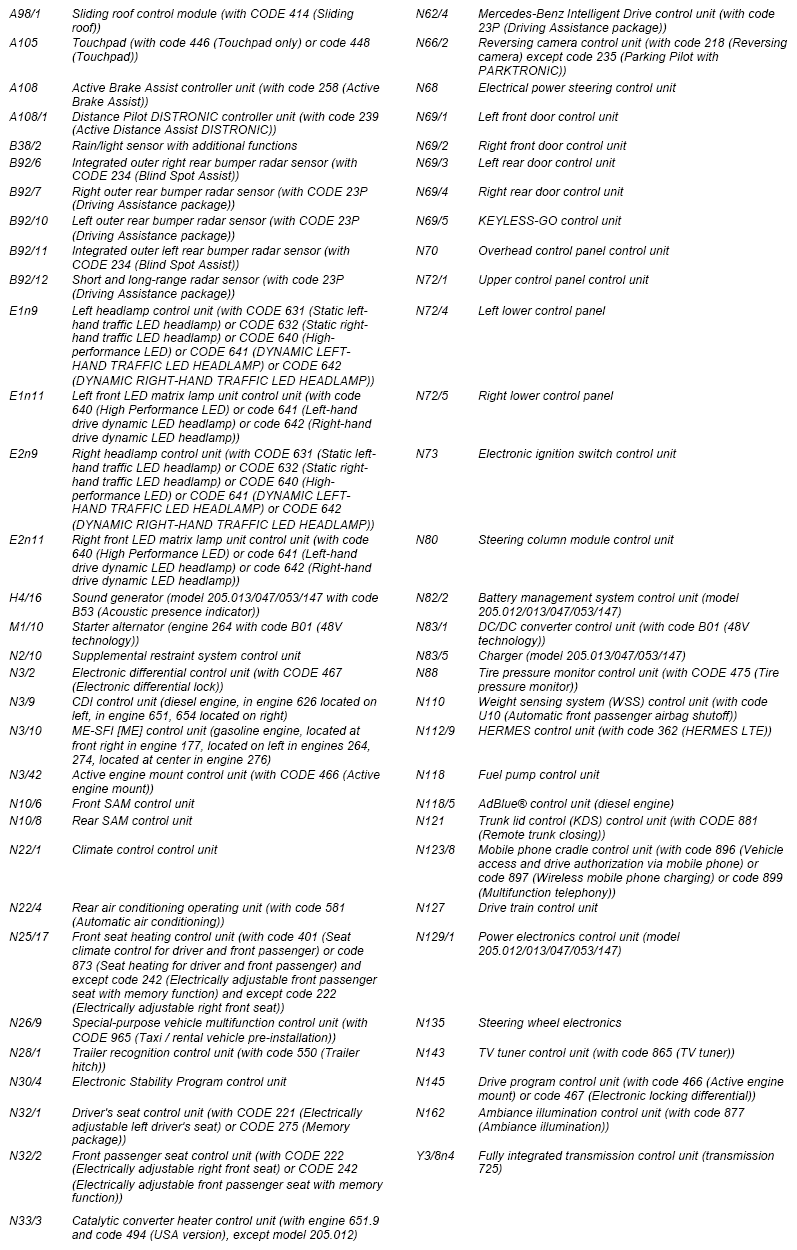

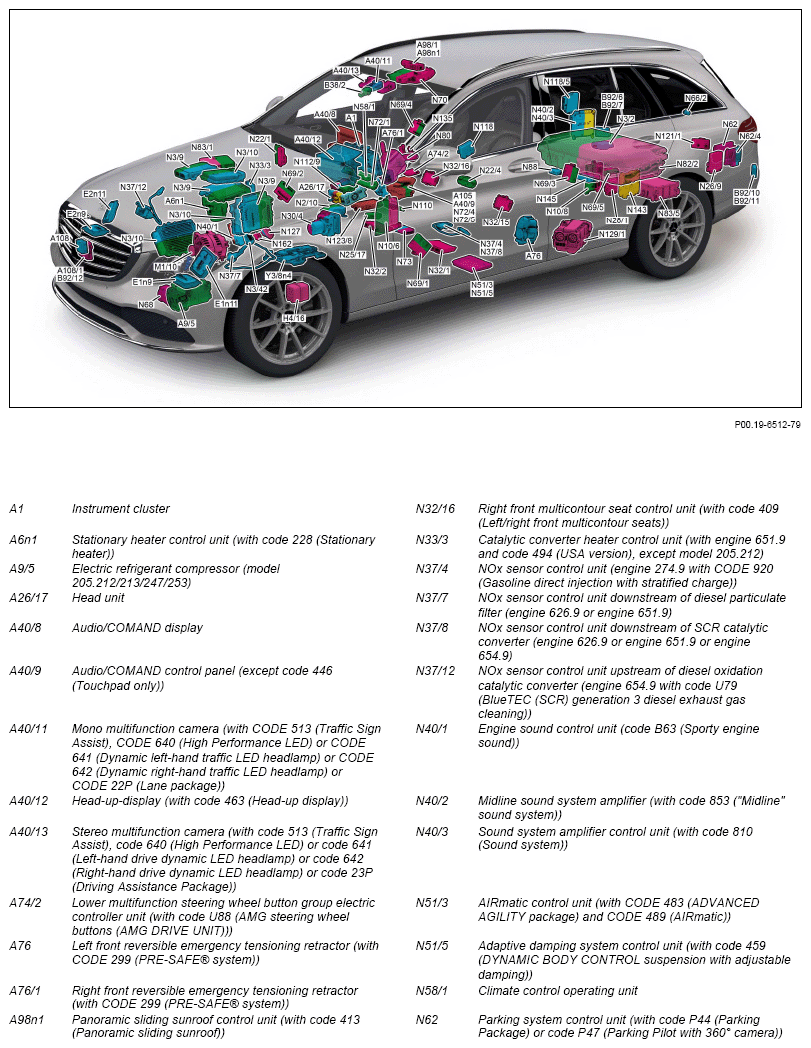

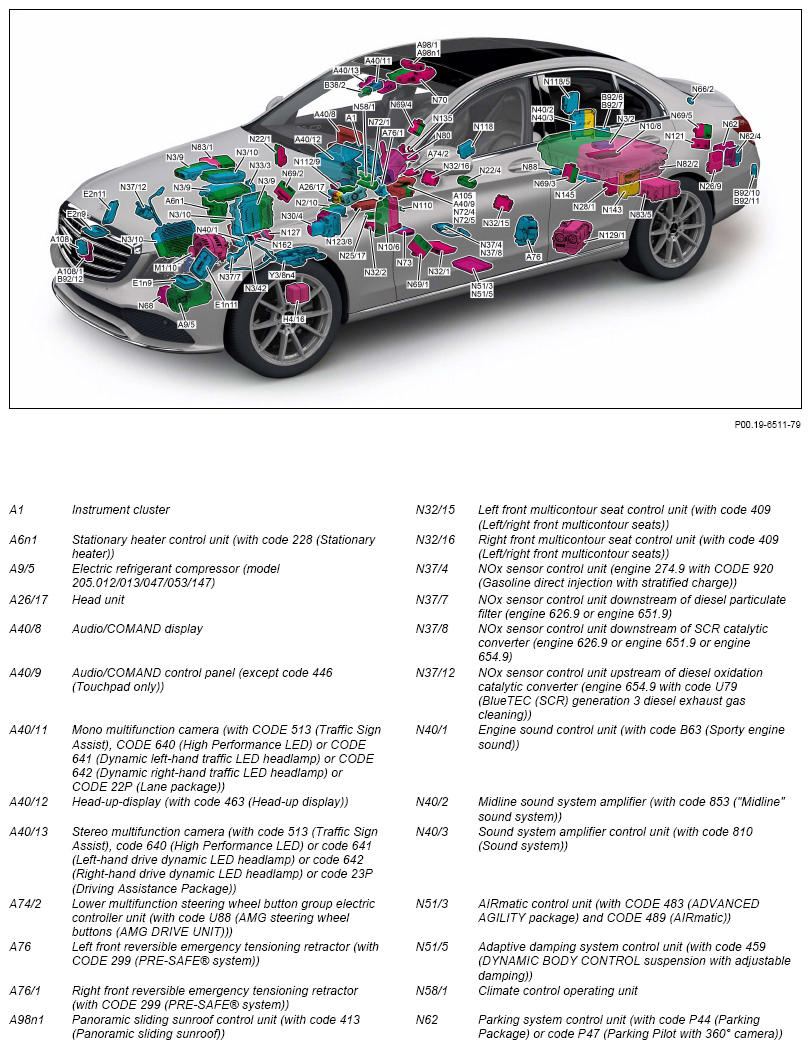

Model 205.0/1, shown on model 205.0
Model 205.1
as of model year 2019
with code 872 (Left and right rear seat heating)
The rear seat heater control unit (N25/6) is also installed, but it is not shown here.
Model 205.0/1
as of model year 2019
with code 258 (Active Brake Assist System)
with code P23 (EXCLUSIVE exterior)
The Active Brake Assist controller unit is not located in the center in front of the cooler, but on the right behind the bumper.

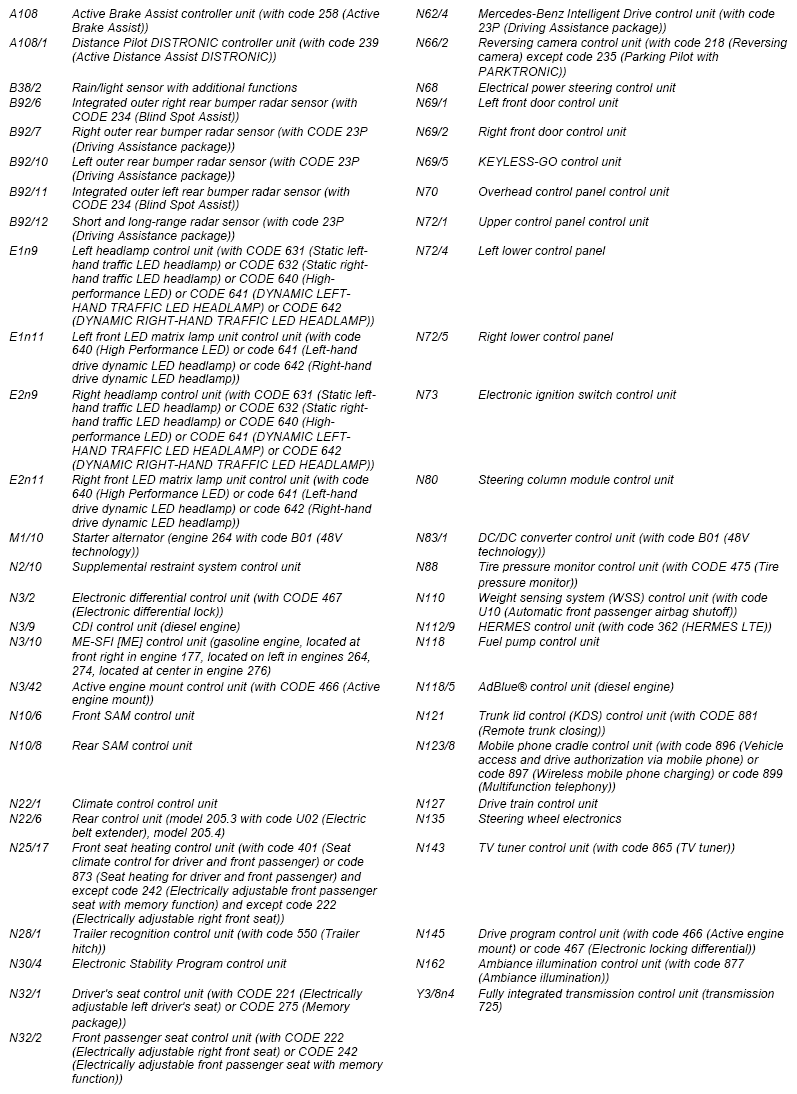

Model 205.2
Model 205.2
as of model year 2019
with code 258 (Active Brake Assist System)
with code P23 (EXCLUSIVE exterior)
The Active Brake Assist controller unit is not located in the center in front of the cooler, but on the right behind the bumper.

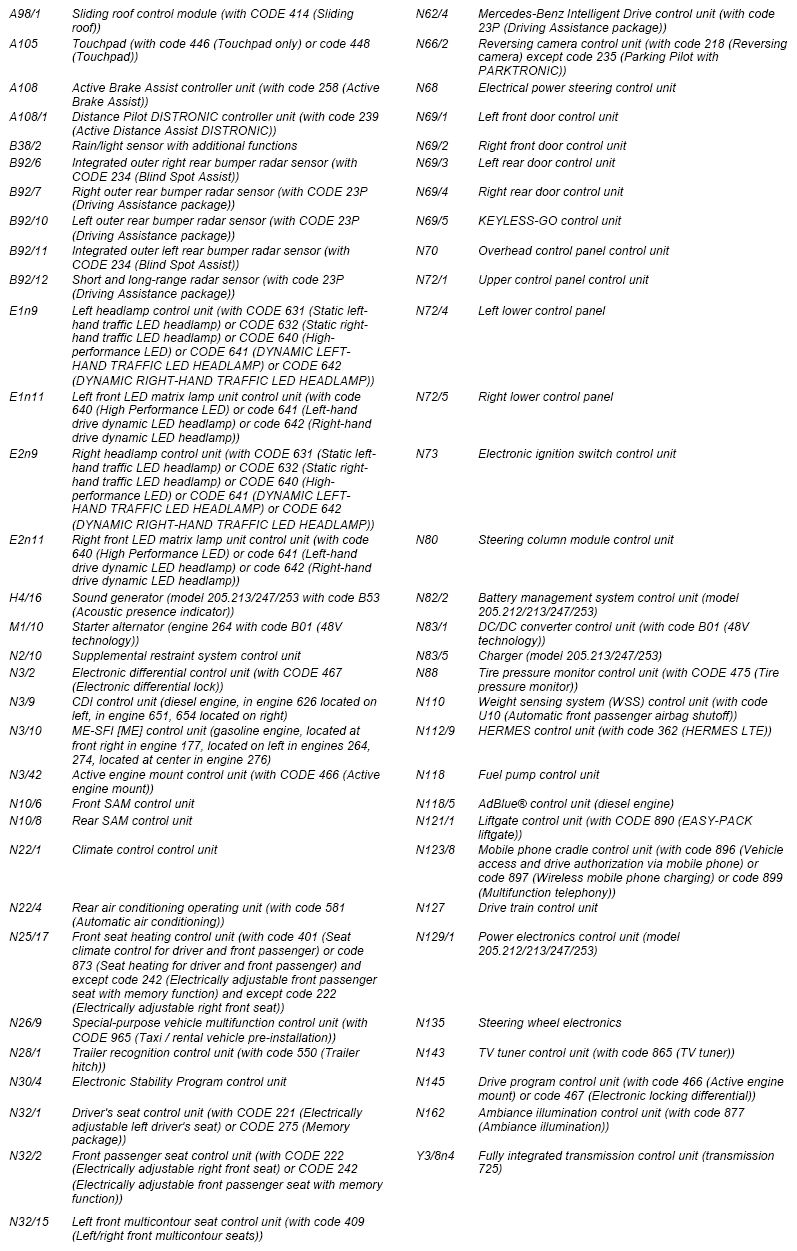

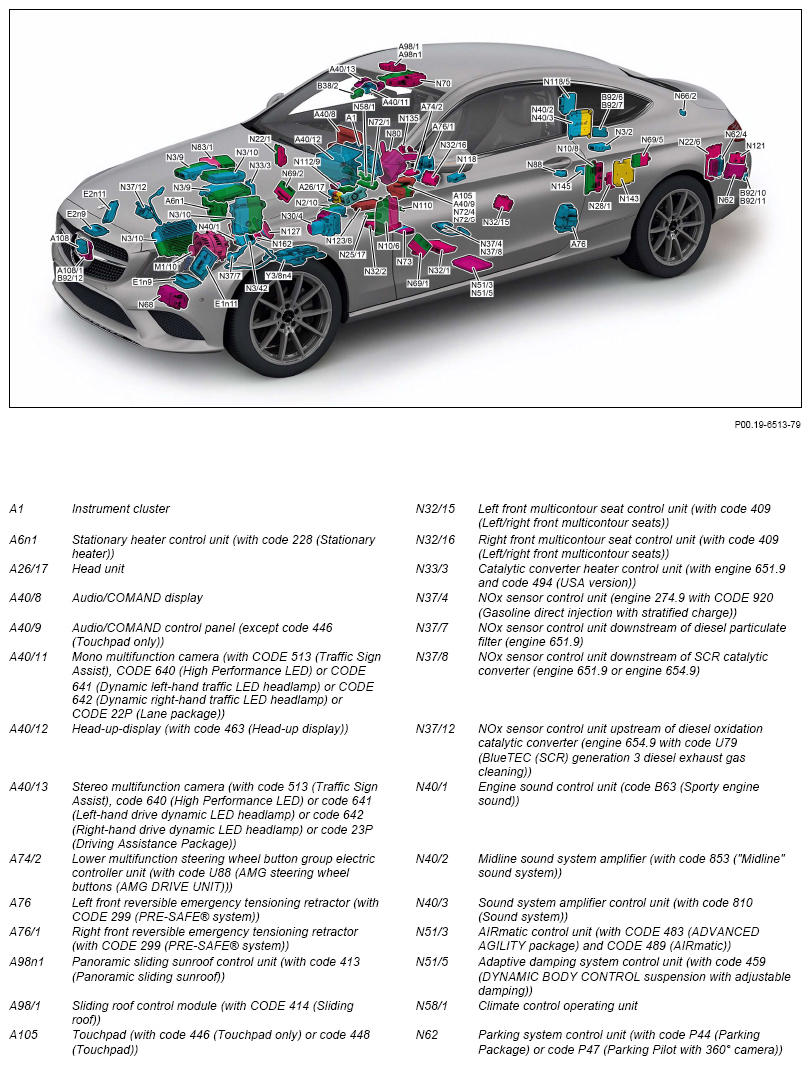

Model 205.3/4, shown on model 205.3
Model 205.4
as of model year 2019
with code 403 (Heating in head area)
The AIRSCARF control unit (N25/7) is installed in addition.

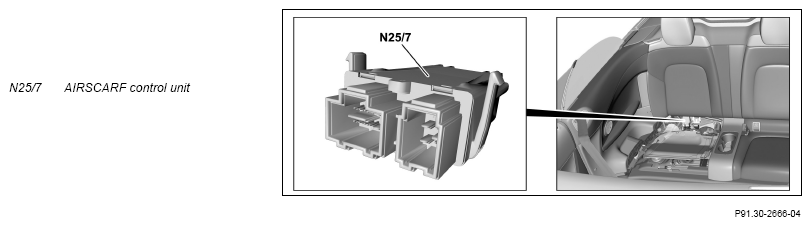

Model 205.4 with code 403 (AIRSCARF system)

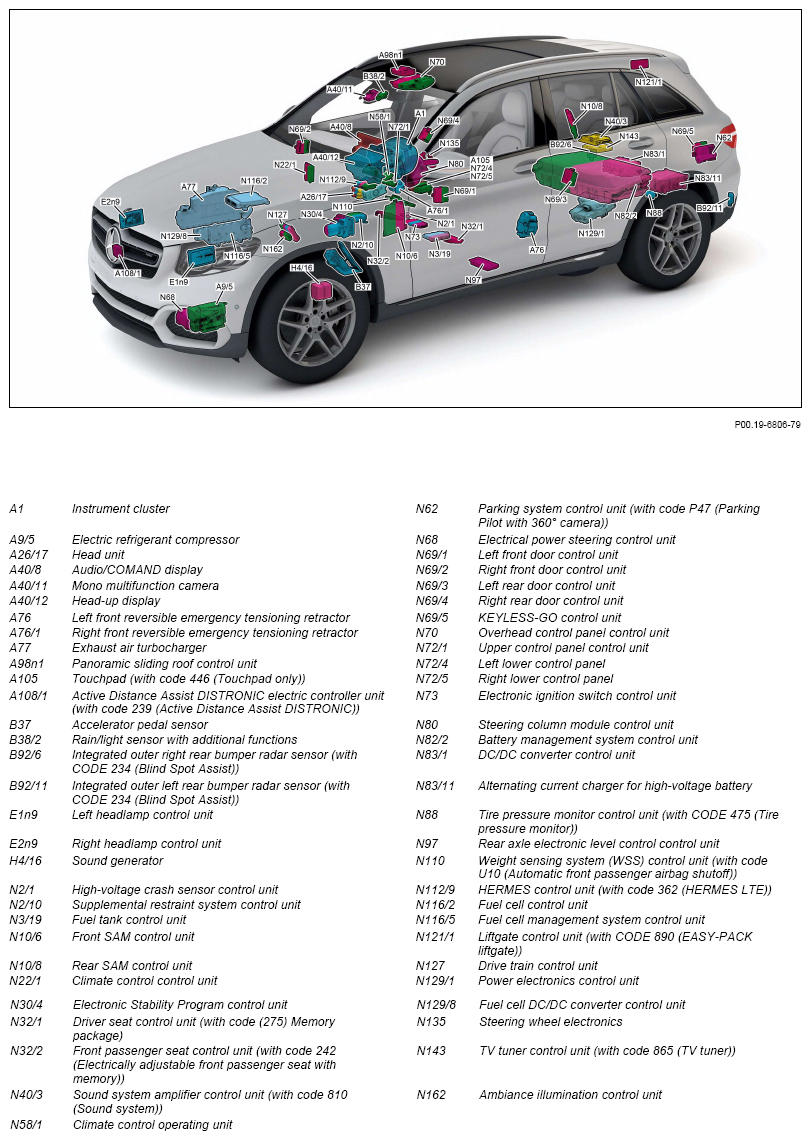

Model 253.99

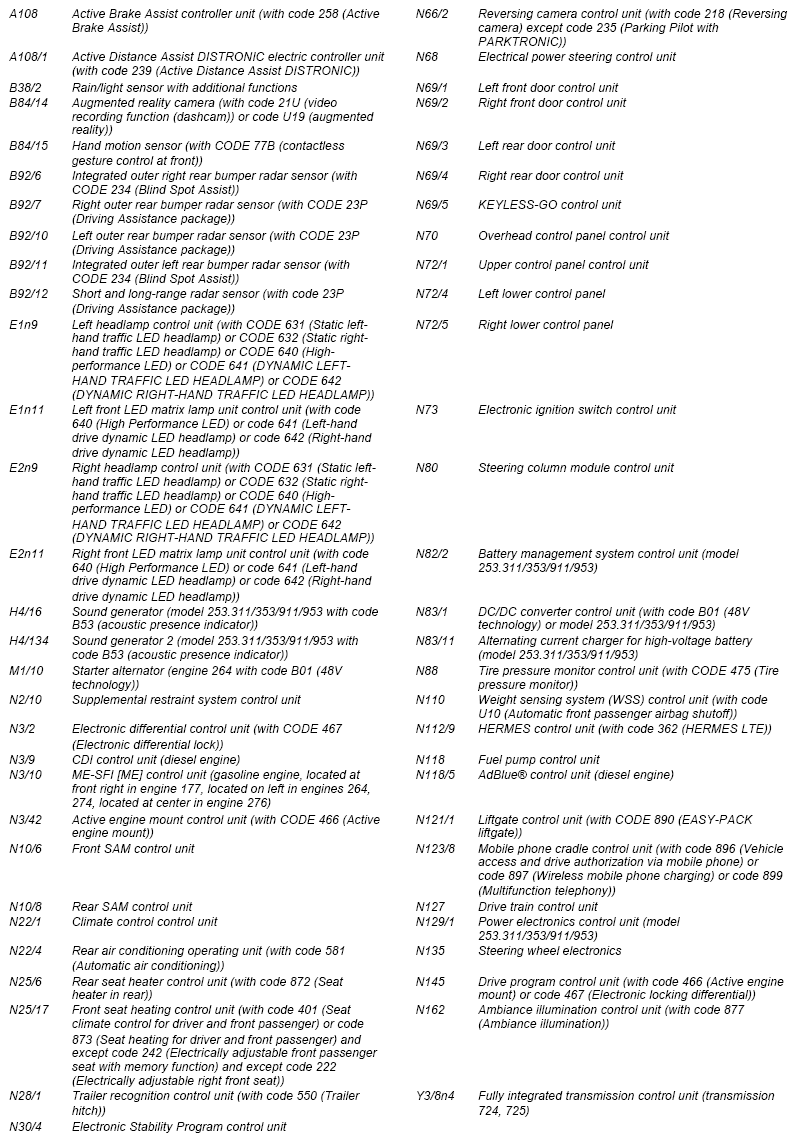

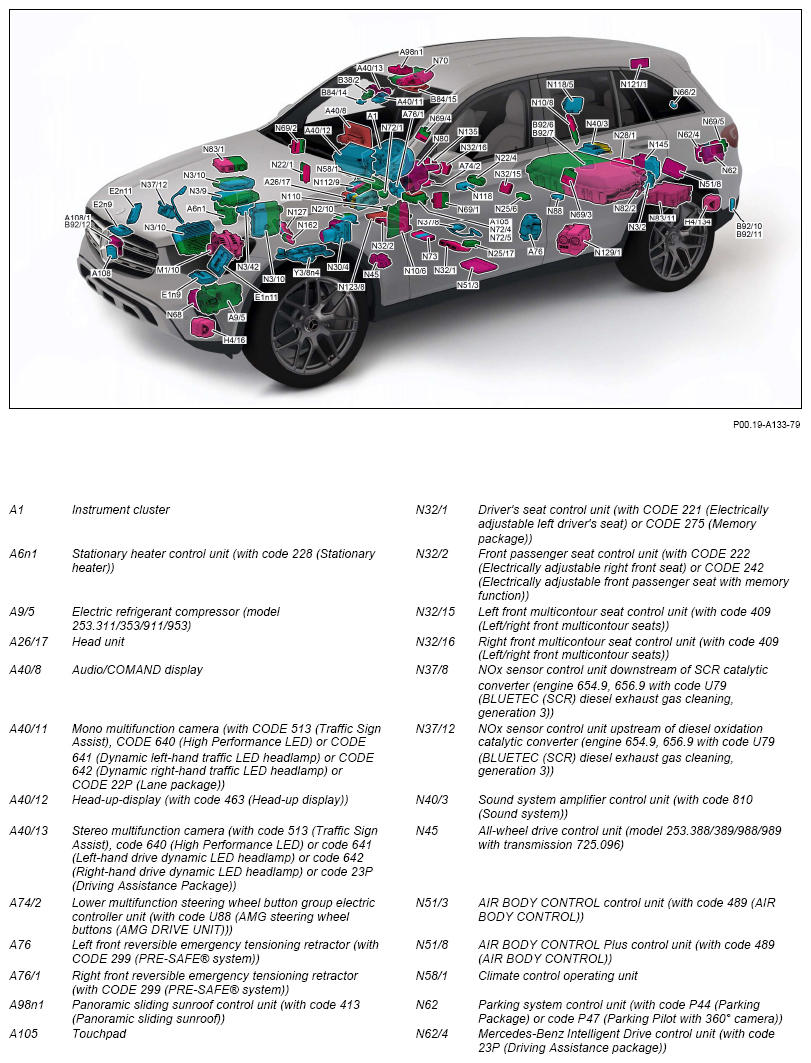

Model 253 (except 253.99), shown on model 253.9
Model 253 (except 253.99)
as of model year 2020
with code 258 (Active Brake Assist System)
with code P23 (EXCLUSIVE exterior)
The Active Brake Assist controller unit is not located in the center in front of the cooler, but on the right behind the bumper.
Model 253.3
as of model year 2020
with code 414 (Electric sunroof, glass version)
The sliding roof control module (A98/1) is also installed.
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Stationary heater control unit, component description | Model 205 as of model year 2019 with code 228 (Additional warm water heating) Model 253 (except 253.99) as of model year 2020 with code 228 (Additional warm water heating) A6n1 |
GF83.70-P-4066RF | |
| Component description for electric refrigerant compressor | Model 205.012/013/047/053/054/147/212/213/247/253 as of model year 2019 Model 253.311/911 as of model year 2020 Model 253.99 A9/5 |
GF83.55-P-2110RFH | |
| Head unit, component description | Model 253 (except 253.99) as of model year 2020 with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) as of model year 2020 with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) as of model year 2020 with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFM | |
| Model 205 as of model year 2019 with code 506 (Audio 20 NTG 5.5 radio) Model 205 as of model year 2019 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253.99 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND control panel | Model 205 as of model year 2019 except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501RF | |
| Component description for multifunction camera | Model 205 as of model year 2019 with code 22P (Lane tracking package) Model 205 as of model year 2019 with code 23P (Drive package) Model 205 as of model year 2019 with code 513 (Road sign recognition system) Model 205 as of model year 2019 with code 640 (High-performance LED) Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 22P (Lane tracking package) Model 253 (except 253.99) as of model year 2020 with code 23P (Drive package) Model 253 (except 253.99) as of model year 2020 with code 513 (Road sign recognition system) Model 253 (except 253.99) as of model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) as of model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253.99 with code 22P (Lane tracking package) Model 253.99 with code 513 (Road sign recognition system) A40/11, A40/13 |
GF54.21-P-3300RFM | |
| Head-up display, component description | Model 205 as of model year 2019 with code 463 (Head-up display) Model 253 (except 253.99) as of model year 2020 with code 463 (Head-up display) Model 253.99 with code 463 (Head-up display) A40/12 |
GF54.30-P-6140RF | |
| Lower multifunction steering wheel button group electric controller unit, component description | Model 205 as of model year 2019 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) Model 253 as of model year 2020 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) A74/2 |
GF82.90-P-4007RFM | |
| Component description for front reversible emergency tensioning retractors | Model 205 as of model year 2019 with code 299 (PRE-SAFE®) Model 253 (except 253.99) as of model year 2020 with code 299 (PRE-SAFE®) Model 253.99 with code 299 (PRE-SAFE®) A76, A76/1 |
GF91.40-P-4020RF | |
| Exhaust air turbocharger component description | Model 253.99 with engine 780 A77 | GF06.11-P-1001RFW | |
| Component description for panoramic sliding roof control module | Model 205 as of model year 2019 with code 413 (Panoramic sliding sunroof/ glass roof) Model 253 (except 253.99) as of model year 2020 with code 413 (Panoramic sliding sunroof/glass roof) Model 253.99 with code 413 (Panoramic sliding sunroof/glass roof) A98n1 |
GF77.20-P-4106RF | |
| Component description for sliding roof control module | Model 205 as of model year 2019 with code 414 (Electric sunroof, glass version Model 253 (except 253.99) as of model year 2020 with code 414 (Electric sunroof, glass version A98/1 |
GF77.20-P-4108RF | |
| Touchpad, component description | Model 205 as of model year 2019 with code 446 (Touchpad only) Model 205 as of model year 2019 with code 448 (Touchpad) Model 253 (except 253.99) as of model year 2020 with code 446 (Touchpad only) Model 253.99 with code 446 (Touchpad only) A105 |
GF54.21-P-4511RF | |
| Active Brake Assist controller unit, component description | Model 205 as of model year 2019 with code 258 (Active Brake Assist System) Model 253 (except 253.99) as of model year 2020 with code 258 (Active Brake Assist System) A108 |
GF30.30-P-3222RFM | |
| DISTRONIC Distance-Pilot controller unit, component description | Model 205 as of model year 2019 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) Model 253 (except 253.99) as of model year 2020 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) Model 253.99 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) A108/1 |
GF30.30-P-3218RFM | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Augmented reality camera, component description | Model 253 (except 253.99) as of model year 2020 with code 21U (Video recording function (Dashcam)) Model 253 (except 253.99) as of model year 2020 with code U19 (Augmented reality video) B84/14 |
GF82.85-P-3144RFM | |
| Hand motion sensor, component description | Model 253 (except 253.99) as of model year 2020 with code 77B (Contactless gesture control at front) B84/15 |
GF82.90-P-4025RFM | |
| Component description for bumper radar sensors | Model 205 as of model year 2019 with code 234 (Blind Spot Assist) Model 205 as of model year 2019 with code 23P (Drive package) Model 253 (except 253.99) as of model year 2020 with code 234 (Blind Spot Assist) Model 253 (except 253.99) as of model year 2020 with code 23P (Drive package) Model 253.99 with code 234 (Blind Spot Assist) B92/6, B92/7, B92/10, B92/11 |
GF30.30-P-3302RFM | |
| Short and long-range radar sensor, component description | Model 205 as of model year 2019 with code 23P (Drive package) Model 253 (except 253.99) as of model year 2020 with code 23P (Drive package) B92/12 |
GF30.30-P-3126RFM | |
| Headlamp control unit, component description | Model 205 as of model year 2019 with code 631 (Static LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 632 (Headlamps, LED, static, right-side traffic) Model 205 as of model year 2019 with code 640 (High-performance LED) Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 631 (Static LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 632 (Headlamps, LED, static, right-side traffic) Model 253 (except 253.99) as of model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) as of model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253.99 with code 631 (Static LED headlamps, left-hand traffic) Model 253.99 with code 632 (Headlamps, LED, static, right-side traffic) E1n9, E2n9 |
GF82.10-P-2020RFM | |
| Front LED matrix lamp unit control unit, component description | Model 205 as of model year 2019 with code 640 (High-performance LED) Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) as of model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n11, E2n11 |
GF82.10-P-2025RFM | |
| Sound generator, component description | Model 205.013/213 with engine 654.920 as of model year 2019 with code B53 (External noise sound generator for hybrids and EV) Model 205.047/147/247 with engine 274.9 as of model year 2019 with code B53 (External noise sound generator for hybrids and EV) Model 205.053/253 with engine 274.920 as of model year 2019 with code B53 (External noise sound generator for hybrids and EV) H4/16 |
GF49.10-P-2003RFH | |
| Sound generator, component description | Model 253.99 with engine 780 H4/16 |
GF82.27-P-0009RFW | |
| Component description for starter-alternator | Model 205 with engine 264 as of model year 2019 with code B01 (48V technology) Model 253 (except 253.99) with engine 264 as of model year 2020 with code B01 (48V technology) M1/10 |
GF15.40-P-2103RFM | |
| Crash sensor, high-voltage control unit component description | Model 253.99 with engine 780 N2/1 |
GF54.21-P-4051RFW | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Electric differential lock control unit, component description | Model 205 as of model year 2019 with code 467 (Electronic locking differential) N3/2 |
GF35.40-P-2000RF | |
| Component description for CDI control unit | Model 205.012/212 with engine 651.9 as of model year 2019 N3/9 |
GF07.16-P-6000OLC | |
| Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code 494 (US version) N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 as of model year 2019 except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205 with engine 626 as of model year 2019 N3/9 |
GF07.16-P-6000ORB | ||
| Model 205 (except 205.013/213) with engine 654.9 as of model year 2019 Model 253 (except 253.311/9/911) with engine 654.9 as of model year 2020 Model 253 (except 253.99) with engine 656.9 as of model year 2020 N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213 with engine 654.9 as of model year 2019 Model 253.311/911 with engine 654.9 as of model year 2020 N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 177.9 as of model year 2019 Model 253 with engine 177.9 as of model year 2020 N3/10 |
GF07.61-P-6000MNA | |
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 N3/10 |
GF07.61-P-6000MRH | ||
| Model 205 with engine 276.8 as of model year 2019 Model 253 with engine 276.8 as of model year 2020 N3/10 |
GF07.61-P-6000MMV | ||
| Model 205 with engine 264.9 as of model year 2019 Model 253 with engine 264.9 as of model year 2020 N3/10 |
GF07.61-P-6000MRS | ||
| Fuel tank control unit, component description | Model 253.99 with engine 780 N3/19 |
GF47.10-P-1001RFW | |
| Active engine mount control unit, component description | Model 205 with engine 177.9 as of model year 2019 with code 466 (Active engine mount) N3/42 |
GF22.10-P-2001MNA | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Rear climate control operating unit, component description | Model 205 as of model year 2019 with code 581 (Automatic climate control) Model 253 (except 253.99) as of model year 2020 with code 581 (Automatic climate control) N22/4 |
GF83.40-P-3050RF | |
| Rear control unit, component description | Model 205.3 as of model year 2019 with code U02 (Belt extender, electric) Model 205.4 as of model year 2019 N22/6 |
GF54.21-P-4134RF | |
| Seat heater control unit, component description | Model 205 as of model year 2019 with code 401 (Climatised front seats) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Memory Package (driver's seat, steering column and mirror)) Model 205 as of model year 2019 with code 872 (Left and right rear seat heating) Model 205 as of model year 2019 with code 873 (Left and right driver's seat heating) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Memory Package (driver's seat, steering column and mirror)) Model 253 as of model year 2020 with code 401 (Climatised front seats) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Memory Package (driver's seat, steering column and mirror)) Model 253 as of model year 2020 with code 872 (Left and right rear seat heating) Model 253 as of model year 2020 with code 873 (Left and right driver's seat heating) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Memory Package (driver's seat, steering column and mirror)) N25/6, N25/17 |
GF91.30-P-5214RF | |
| Component description for AIRSCARF system control unit | Model 205.4 as of model year 2019 with code 403 (Heating in head area) N25/7 |
GF91.30-P-2120RF | |
| Special vehicle multifunction control unit (SVMCU (MSS)), component description | Model 205 as of model year 2019 with code 965 (Taxi/rental car - electrical pre-installation) N26/9 |
GF54.21-P-4010RF | |
| Component description for trailer recognition control unit | Model 205 as of model year 2019 with code 550 (Trailer coupling) Model 253 (except 253.99) as of model year 2020 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 Model 253 (except 253.353/354/953/954/99) as of model year 2020 N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253 as of model year 2019 Model 253.99 N30/4 |
GF42.45-P-5119RFH | ||
| Component description for driver seat control unit | Model 205 as of model year 2019 with code 221 (Electrically adjustable left driver seat) Model 205 as of model year 2019 with code 275 (Memory Package (driver's seat, steering column and mirror)) Model 253 (except 253.99) as of model year 2020 with code 221 (Electrically adjustable left driver seat) Model 253 (except 253.99) as of model year 2020 with code 275 (Memory Package (driver's seat, steering column and mirror)) Model 253.99 with code 221 (Electrically adjustable left driver seat) Model 253.99 with code 275 (Memory Package (driver's seat, steering column and mirror)) N32/1 |
GF91.29-P-5231RF | |
| Component description for front passenger seat control unit | Model 205 as of model year 2019 with code 222 (Electrically adjustable right driver seat) Model 205 as of model year 2019 with code 242 (Front passenger seat, electrically adjustable with memory function) Model 253 (except 253.99) as of model year 2020 with code 222 (Electrically adjustable right driver seat) Model 253 (except 253.99) as of model year 2020 with code 242 (Front passenger seat, electrically adjustable with memory function) Model 253.99 with code 222 (Electrically adjustable right driver seat) Model 253.99 with code 242 (Front passenger seat, electrically adjustable with memory function) N32/2 |
GF91.29-P-5241RF | |
| Multicontour seat control unit (MCS), component description | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) N32/15, N32/16 |
GF91.25-P-5201RFM | |
| Catalytic converter heater control unit, component description | Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code 494 (US version) N33/3 |
GF14.00-P-0002OLD | |
| Component description for NOx sensor control unit | Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code 920 (Direct Fuel injection with stratified charging) N37/4 |
GF14.40-P-3024MRA | |
| Model 205.012/212 with engine 651.9 as of model year 2019 N37/7, N37/8 |
GF14.40-P-3024OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code U77 (Diesel Emission control BLUETEC (SCR)) N37/7, N37/8 |
GF14.40-P-3024OLD | ||
| Model 205 with engine 626 as of model year 2019 N37/7, N37/8 |
GF14.40-P-3024ORB | ||
| NOx sensor control unit, component description | Model 205 with engine 654.9 as of model year 2019 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3) Model 253 with engine 654.9 as of model year 2020 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3) Model 253 with engine 656.9 as of model year 2020 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3) N37/8, N37/12 |
GF49.20-P-3024ORH | |
| Engine sound control unit, component description | Model 205 as of model year 2019 with code B63 (Engine sound via speakers) except code 810 (Premium sound system) except code 853 ("Midline" sound system) N40/1 |
GF54.21-P-0019RF | |
| Component description for sound system amplifier control unit | Model 205 as of model year 2019 with code 853 ("Midline" sound system) except code 810 (Premium sound system) N40/2 |
GF82.62-P-5010RFM | |
| Component description for sound system amplifier control unit | Model 205 as of model year 2019 with code 810 (Premium sound system) Model 253 (except 253.99) as of model year 2020 with code 810 (Premium sound system) Model 253.99 with code 810 (Premium sound system) N40/3 |
GF82.62-P-5010RF | |
| All-wheel drive control unit, component description | Model 253 (except 253.99) with transmission 725.096 as of model year 2020 N45 |
GF28.19-P-3210AVJ | |
| AIRMATIC control unit, component description | Model 205 as of model year 2019 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC Dual Control/semi-active air suspension) N51/3 |
GF32.22-P-5110RF | |
| AIR BODY CONTROL control unit, component description | Model 253 (except 253.99) as of model year 2020 with code 489 (AIR BODY CONTROL) N51/3, N51/8 |
GF32.22-P-5111RF | |
| Component description for adaptive damping system control unit | Model 205 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) N51/5 |
GF32.32-P-1010RF | |
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260RF | |
| Parking system control unit, component description | Model 205 as of model year 2019 with code P44 (Parking package) Model 205 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code P47 (Parking Pilot with 360° camera) Model 253.99 with code P47 (Parking Pilot with 360° camera) N62 |
GF54.65-P-5004RFM | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 205 as of model year 2019 with code 23P (Drive package) Model 253 (except 253.99) as of model year 2020 with code 23P (Drive package) N62/4 |
GF30.30-P-3312RFM | |
| Component description for reversing camera control unit | Model 205 as of model year 2019 with code 218 (Rear view camera) except code 235 (Active Parking Assist) Model 253 (except 253.99) as of model year 2020 with code 218 (Rear view camera) except code 235 (Active Parking Assist) N66/2 |
GF54.65-P-5030RFM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N69/3, N69/4 |
GF72.29-P-6021RF | |
| Component description for KEYLESS-GO control unit | N69/5 | GF80.61-P-4204RFM | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RF | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RFM | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RFM | |
| Component description for battery management system control unit | Model 205.012/212 with engine 651.921 as of model year 2019 Model 205.013/213 with engine 654.920 as of model year 2019 Model 205.047/147/247 with engine 274.920 as of model year 2019 Model 205.053/253 with engine 274.920 as of model year 2019 N82/2 |
GF54.10-P-3012RFH | |
| Model 253.99 with engine 780 N82/2 |
GF54.10-P-3012RFW | ||
| Component description for DC/DC converter control unit | Model 205 as of model year 2019 with code B01 (48V technology) Model 253 (except 253.311/353/354/911/953/954/99) as of model year 2020 with code B01 (48V technology) N83/1 |
GF54.10-P-3006RFM | |
| Component description for DC/DC converter control unit | Model 253.99 with engine 780 N83/1 |
GF54.10-P-3006RFW | |
| High-voltage charger control unit, component description | Model 205.013/213 with engine 654.920 as of model year 2019 Model 205.047/147/247 with engine 274.920 as of model year 2019 Model 205.053/253 with engine 274.920 as of model year 2019 N83/5 |
GF08.20-P-2000RFH | |
| Charger component description | Model 253.99 with engine 780 N83/11 |
GF54.10-P-2018RFW | |
| Component description for tire pressure monitor control unit | Model 205 as of model year 2019 with code 475 (Tire pressure monitor (TPM)) Model 253 (except 253.99) as of model year 2020 with code 475 (Tire pressure monitor (TPM)) Model 253.99 with code 475 (Tire pressure monitor (TPM)) N88 |
GF40.15-P-5124RF | |
| Component description for Weight Sensing System (WSS) control unit | Model 205 as of model year 2019 with code U10 (Front passenger seat with weight sensor) Model 253 (except 253.99) as of model year 2020 with code U10 (Front passenger seat with weight sensor) Model 253.99 with code U10 (Front passenger seat with weight sensor) N110 |
GF91.60-P-4069RF | |
| HERMES control unit, component description | Model 205 as of model year 2019 with code 362 (HERMES communications module LTE) Model 253 (except 253.99) as of model year 2020 with code 362 (HERMES communications module LTE) Model 253.99 with code 362 (HERMES communications module LTE) N112/9 |
GF82.85-P-0221RF | |
| Fuel cell control unit, component description | Model 253.99 with engine 780 N116/2 |
GF06.20-P-1007RFW | |
| Fuel cell management system control unit component description | Model 253.99 with engine 780 N116/5 |
GF06.20-P-2102RFW | |
| Component description for fuel pump control unit | Model 205 with engine 177.9 as of model year 2019 Model 253 (except 253.99) with engine 177.9 as of model year 2020 N118 |
GF47.40-P-2001MNA | |
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 N118 |
GF47.40-P-2001MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 N118 |
GF47.40-P-2001MRH | ||
| Model 205 with engine 276.8 as of model year 2019 Model 253 (except 253.99) with engine 276.8 as of model year 2020 N118 |
GF47.40-P-2001MMV | ||
| Model 205.012/212 with engine 651.9 as of model year 2019 N118 |
GF47.40-P-2001OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 N118 |
GF47.40-P-2001OLD | ||
| Model 205 with engine 626 as of model year 2019 N118 |
GF47.40-P-2001ORB | ||
| Model 205 with engine 264.9 as of model year 2019 Model 253 (except 253.99) with engine 264.9 as of model year 2020 N118 |
GF47.40-P-2001MRS | ||
| Model 205 with engine 654.9 as of model year 2019 Model 253 (except 253.99) with engine 654.9 as of model year 2020 Model 253 with engine 656.9 as of model year 2020 N118 |
GF47.40-P-2001ORH | ||
| Component description for exhaust aftertreatment control unit | Model 205.012/212 with engine 651.9 as of model year 2019 N118/5 |
GF14.40-P-3030OLC | |
| Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code U77 (Diesel Emission control BLUETEC (SCR)) N118/5 |
GF14.40-P-3030OLD | ||
| Model 205 with engine 626 as of model year 2019 N118/5 |
GF14.40-P-3030ORB | ||
| Exhaust gas aftertreatment control unit, component description | Model 205 with engine 654.9 as of model year 2019 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3) Model 253 (except 253.99) with engine 654.9 as of model year 2020 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3) Model 253 (except 253.99) with engine 656.9 as of model year 2020 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3) N118/5 |
GF49.20-P-3030ORH | |
| Trunk lid/liftgate control control unit, component description | Model 205.0/1/3 as of model year 2019 with code 881 (Remote boot-lid closing) Model 205.2 as of model year 2019 with code 890 (Automatic rear-end door) Model 253 (except 253.99) as of model year 2020 with code 890 (Automatic rear-end door) Model 253.99 with code 890 (Automatic rear-end door) N121, N121/1 |
GF80.20-P-6092RF | |
| Mobile phone cradle control unit component description | Model 205 as of model year 2019 with code 896 (Vehicle access and authorization via smartphone) Model 205 as of model year 2019 with code 897 (Front wireless telephone charging) Model 205 as of model year 2019 with code 899 (Multifunction telephony) Model 253 (except 253.99) as of model year 2020 with code 896 (Vehicle access and authorization via smartphone) Model 253 (except 253.99) as of model year 2020 with code 897 (Front wireless telephone charging) Model 253 (except 253.99) as of model year 2020 with code 899 (Multifunction telephony) N123/8 |
GF82.70-P-0201RFM | |
| Drivetrain control unit, component description | Model 205 with engine 626 as of model year 2019 N127 |
GF54.21-P-2141ORB | |
| Model 205.012/212 with engine 651.9 as of model year 2019 N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 N127 |
GF54.21-P-2141OLD | ||
| Model 205 with engine 177.9 as of model year 2019 Model 253 (except 253.99) with engine 177.9 as of model year 2020 N127 |
GF54.21-P-2141MNA | ||
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 N127 |
GF54.21-P-2141MRH | ||
| Model 205 with engine 276.8 as of model year 2019 Model 253 (except 253.99) with engine 276.8 as of model year 2020 N127 |
GF54.21-P-2141RF | ||
| Model 205 with engine 264.9 as of model year 2019 Model 253 (except 253.99) with engine 264.9 as of model year 2020 N127 |
GF54.21-P-2141MRS | ||
| Model 205 with engine 654.9 as of model year 2019 Model 253 (except 253.99) with engine 654.9 as of model year 2020 Model 253 with engine 656.9 as of model year 2020 N127 |
GF54.21-P-2141ORH | ||
| Model 253.99 with engine 780 N127 |
GF54.21-P-2141RFW | ||
| Component description for power electronics control unit | Model 205.012/212 with engine 651.921 as of model year 2019 Model 205.013/213 with engine 654.920 as of model year 2019 Model 205.047/147/247 with engine 274.920 as of model year 2019 Model 205.053/253 with engine 274.920 as of model year 2019 N129/1 |
GF08.20-P-1001RFH | |
| Model 253.99 with engine 780 N129/1 |
GF08.20-P-1001RFW | ||
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006RFM | |
| TV tuner control unit, component description | Model 205 as of model year 2019 with code 865 (digital TV) Model 253.99 with code 865 (digital TV) N143 |
GF82.60-P-3108RFM | |
| Ambiance illumination control unit, component description | Model 205 as of model year 2019 with code 877 (Ambient lighting) Model 253 (except 253.99) as of model year 2020 with code 877 (Ambient lighting) Model 253.99 with code 877 (Ambient lighting) N162 |
GF82.20-P-5161RFM | |
| Component description for fully integrated transmission control unit | Model 205 with transmission 725.0 (except 725.017) as of model year 2019 Y3/8n4 |
GF27.60-P-5165ANG | |
| Model 205 with transmission 725.017 as of model year 2019 Y3/8n4 |
GF27.60-P-5165AHH | ||
| Model 253 (except 253.99) with transmission 725.0 as of model year 2020 Y3/8n4 |
GF27.60-P-5165ANI | ||
| Model 253 (except 253.99) with transmission 724.2 as of model year 2020 Y3/8n4 |
GF27.60-P-5165RFH | ||
| Overall network (GVN) function description table of contents | GF00.19-P-0999RFM |
