Overview Of System Components For Overall Network (GVN) - GF00.19-P-9997RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
up to model year 2019
Model 253 (except 253.99)
up to model year 2020

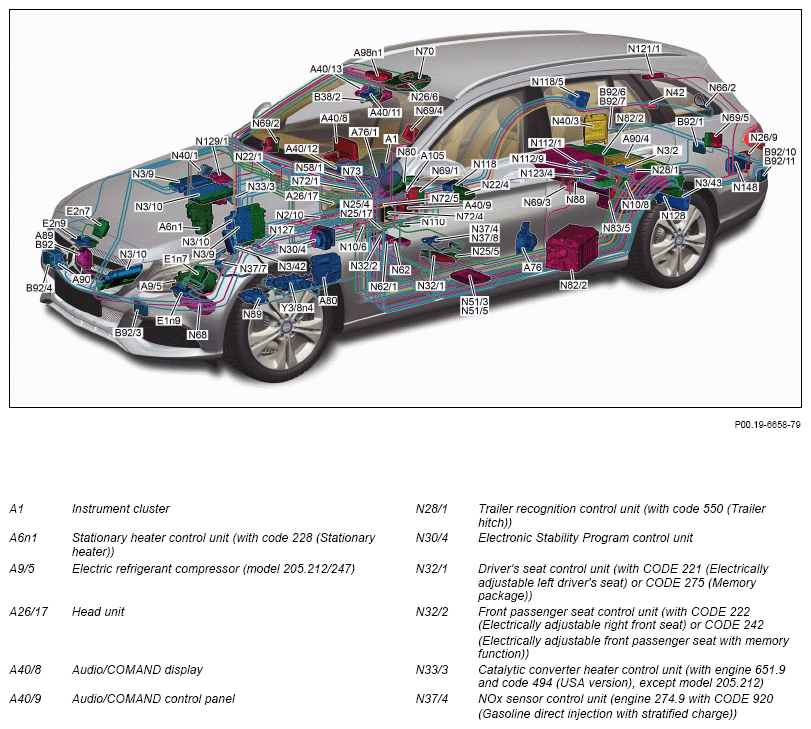

Model 205.0/1, shown on model 205.0
Model 205.1
up to model year 2019
with code 872 (Left and right rear seat heating)
The rear seat heater control unit (N25/6) is not represented.
Model 205.047/147
up to model year 2019
with code B53 (External noise sound generator for hybrids and EV)
The sound generator (H4/16) is not shown here.

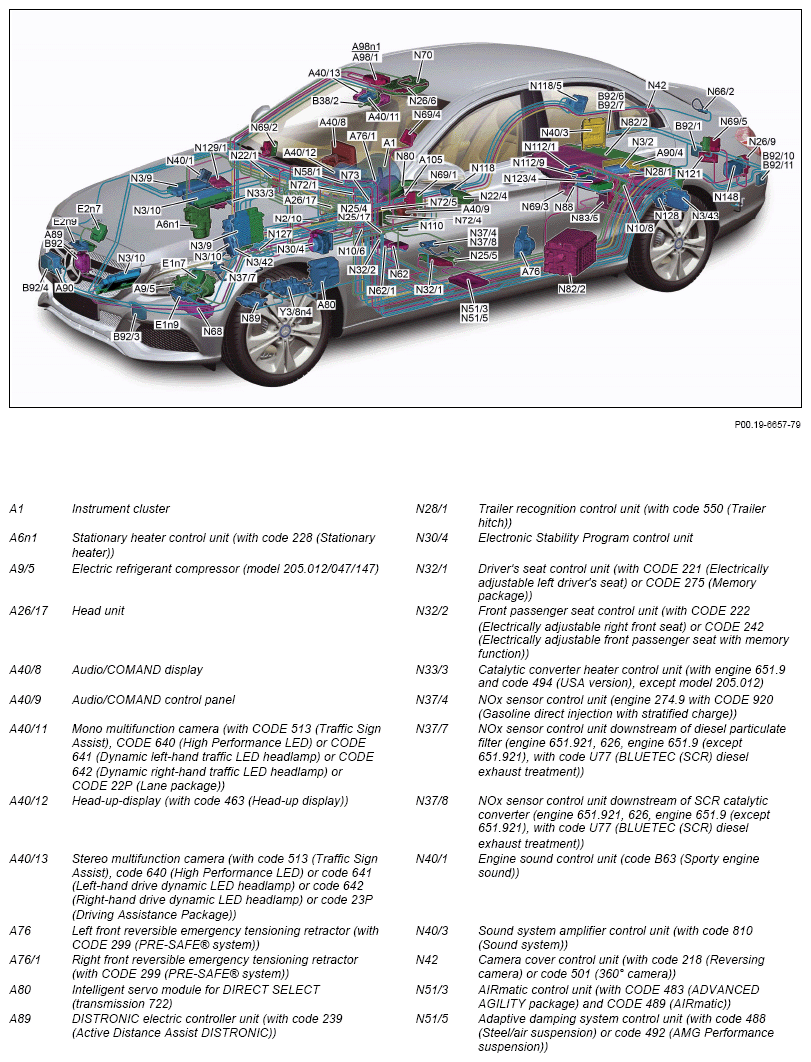

Model 205.2
Model 205.247
up to model year 2019
with code B53 (External noise sound generator for hybrids and EV)
The sound generator is not shown here.

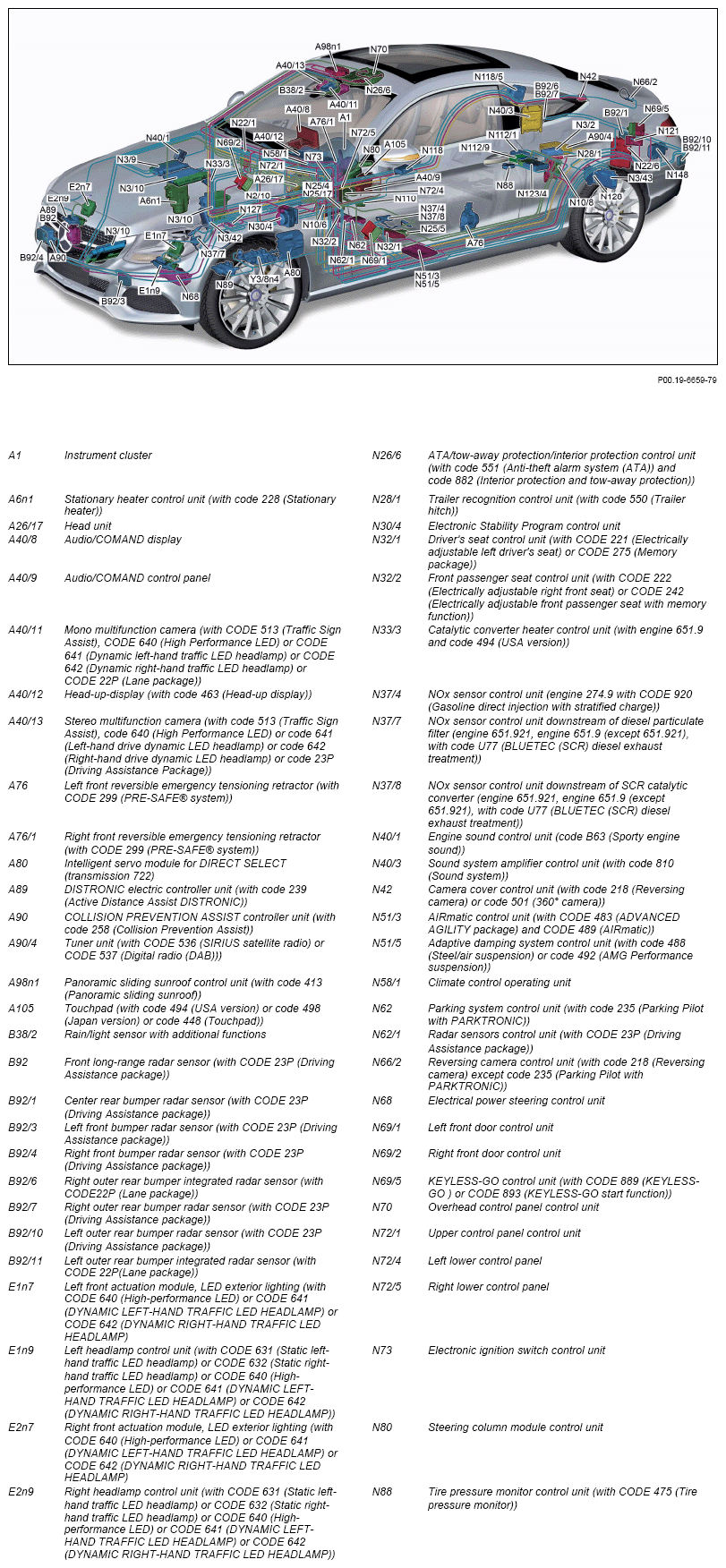

Model 205.3/4, shown on model 205.3
Model 205.4
up to model year 2019

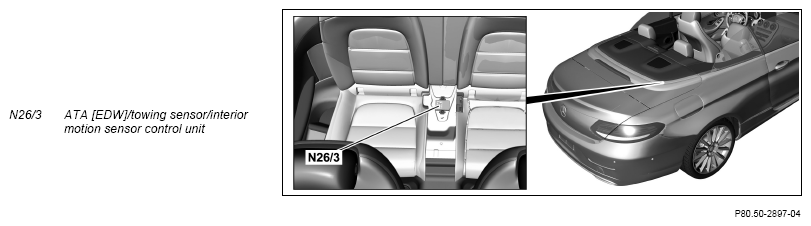

with code 551 (Standard anti-theft alarm system (ATA))
with code 882 (interior protection and tow-away protection)
The anti-theft alarm system/tow-away protection/interior protection
control unit (N26/6) has been replaced by the anti-theft alarm system/tow-away protection/interior protection control unit (N26/3).
Shown on model 205.4 with code 551 (Anti-theft alarm system (ATA)) and code 882 (Interior protection and tow-away protection)

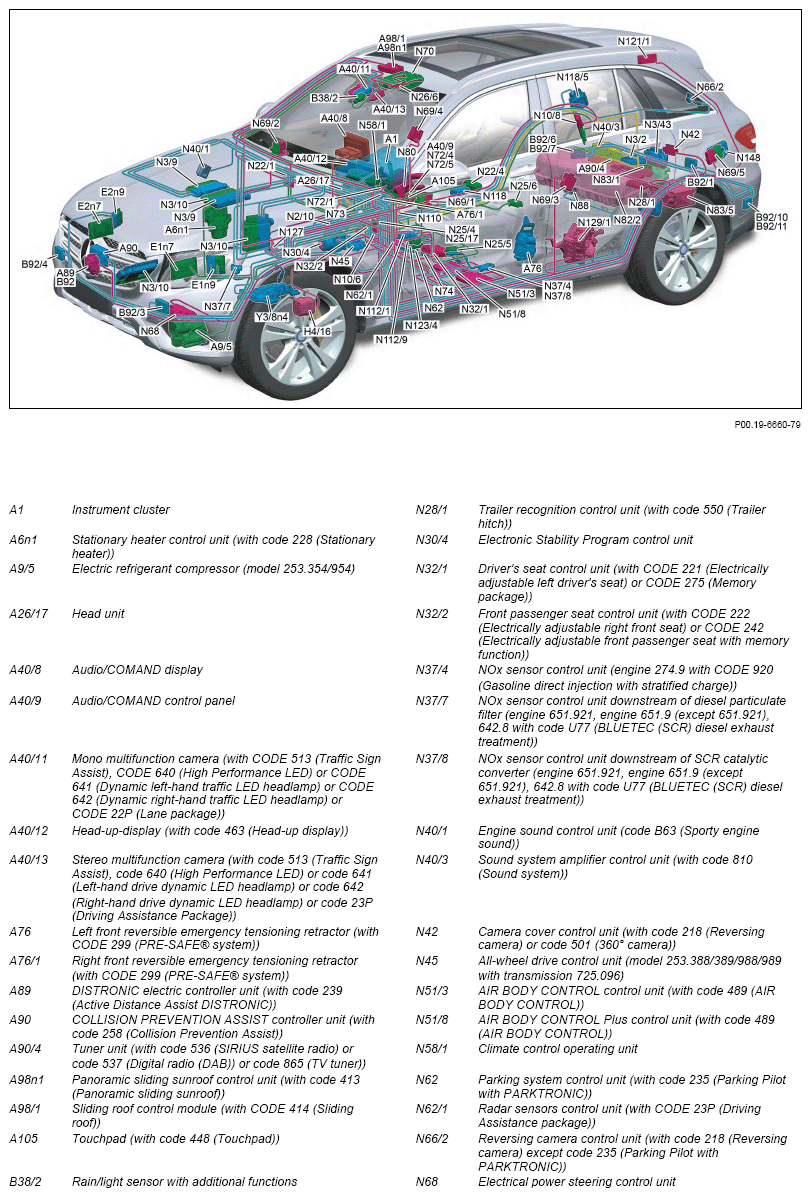

Model 253
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Stationary heater control unit, component description | Model 205 up to model year 2019 with code 228 (Additional warm water heating) Model 253 (except 253.99) up to model year 2020 with code 228 (Additional warm water heating) A6n1 |
GF83.70-P-4066RF | |
| Component description for electric refrigerant compressor | Model 205.012/047/147/212/247 up to model year 2019 Model 253.353/354/953/954 up to model year 2020 A9/5 |
GF83.55-P-2110RFH | |
| Head unit, component description | Model 205 up to model year 2019 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Model 205 up to model year 2019 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 205 up to model year 2019 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 (except 253.99) up to model year 2020 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501RF | |
| Component description for multifunction camera | Model 205 up to model year 2019 with code 22P (Lane tracking package) Model 205 up to model year 2019 with code 23P (Drive package) Model 205 up to model year 2019 with code 513 (Road sign recognition system) Model 205 up to model year 2019 with code 640 (High-performance LED) Model 205 up to model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 22P (Lane tracking package) Model 253 (except 253.99) up to model year 2020 with code 23P (Drive package) Model 253 (except 253.99) up to model year 2020 with code 513 (Road sign recognition system) Model 253 (except 253.99) up to model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) up to model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) A40/11, A40/13 |
GF54.21-P-3300RF | |
| Head-up display, component description | Model 205 up to model year 2019 with code 463 (Head-up display) Model 253 (except 253.99) up to model year 2020 with code 463 (Head-up display) A40/12 |
GF54.30-P-6140RF | |
| Component description for front reversible emergency tensioning retractors | Model 205 up to model year 2019 with code 299 (PRE-SAFE®) Model 253 (except 253.99) up to model year 2020 with code 299 (PRE-SAFE®) A76, A76/1 |
GF91.40-P-4020RF | |
| Component description for intelligent servo module for DIRECT SELECT | Model 205 with transmission 722.9 (except 722.930) up to model year 2019 |
GF27.19-P-4020AHE | |
| A80 Model 205 with transmission 722.930 up to model year 2019 A80 |
GF27.19-P-4020AIA | ||
| Component description for DISTRONIC electric controller unit | Model 205 up to model year 2019 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) Model 253 (except 253.99) up to model year 2020 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) A89 |
GF30.30-P-3213RF | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 205 up to model year 2019 with code 258 (Collision warning system with active brake application FCW-Stop) Model 253 (except 253.99) up to model year 2020 with code 258 (Collision warning system with active brake application FCW-Stop) A90 |
GF30.30-P-3214RF | |
| Tuner unit, component description | Model 205 up to model year 2019 with code 536 (Sirius satellite radio complete system) Model 205 up to model year 2019 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) Model 205 up to model year 2019 with code 865 (digital TV) Model 253 (except 253.99) up to model year 2020 with code 536 (Sirius satellite radio complete system) Model 253 (except 253.99) up to model year 2020 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) Model 253 (except 253.99) up to model year 2020 with code 865 (digital TV) A90/4 |
GF82.60-P-5015RF | |
| Component description for panoramic sliding roof control module | Model 205 up to model year 2019 with code 413 (Panoramic sliding sunroof/glass roof) Model 253 (except 253.99) up to model year 2020 with code 413 (Panoramic sliding sunroof/glass roof) A98n1 |
GF77.20-P-4106RF | |
| Component description for sliding roof control module | Model 205 up to model year 2019 with code 414 (Electric sunroof, glass version A98/1 |
GF77.20-P-4108RF | |
| Touchpad, component description | Model 205 as of model year 2016 up to model year 2019 with code 448 (Touchpad) Model 205 up to model year 2016 with code 522 (Audio 20 radio) Model 205 up to model year 2016 with code 531 (COMAND APS) Model 205 up to model year 2019 with code 494 (US version) Model 205 up to model year 2019 with code 498 (Japanese version) Model 253 (except 253.99) up to model year 2020 with code 448 (Touchpad) A105 |
GF54.21-P-4511RF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Long-range radar sensor, component description | Model 205 up to model year 2019 with code 23P (Drive package) Model 253 (except 253.99) up to model year 2020 with code 23P (Drive package) B92 |
GF30.30-P-3125RF | |
| Component description for bumper radar sensors | Model 205 up to model year 2019 with code 22P (Lane tracking package) Model 205 up to model year 2019 with code 23P (Drive package) Model 253 (except 253.99) up to model year 2020 with code 22P (Lane tracking package) Model 253 (except 253.99) up to model year 2020 with code 23P (Drive package) B92/1, B92/3, B92/4, B92/6, B92/7, B92/10, B92/11 |
GF30.30-P-3302RF | |
| Actuation module, LED exterior lighting, front, component description | Model 205 up to model year 2019 with code 640 (High-performance LED) Model 205 up to model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) up to model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n7, E2n7 |
GF82.10-P-2160RF | |
| Headlamp control unit, component description | Model 205 up to model year 2019 with code 631 (Static LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 632 (Headlamps, LED, static, right-side traffic) Model 205 up to model year 2019 with code 640 (High-performance LED) Model 205 up to model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 631 (Static LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 632 (Headlamps, LED, static, right-side traffic) Model 253 (except 253.99) up to model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) up to model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n9, E2n9 |
GF82.10-P-2020RF | |
| Sound generator, component description | Model 205.047/053/054/147/247/253 with engine 274.9 up to model year 2019 with code B53 (External noise sound generator for hybrids and EV) Model 253.353/354/953/954 with engine 274.9 up to model year 2020 with code B53 (External noise sound generator for hybrids and EV) H4/16 |
GF49.10-P-2003RFH | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Electric differential lock control unit, component description | Model 205 up to model year 2019 with code 467 (Electronic locking differential) N3/2 |
GF35.40-P-2000RF | |
| Model 253 (except 253.99) up to model year 2020 with code 467 (Electronic locking differential) N3/2 |
GF35.40-P-2000AVJ | ||
| Component description for CDI control unit | Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 with code 494 (US version) Model 253 (except 253.99) with engine 651.9 up to model year 2020 N3/9 |
GF07.16-P-6000OLD | |
| Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205.012/212 with engine 651.921 up to model year 2019 N3/9 |
GF07.16-P-6000OLC | ||
| Model 205 with engine 626 up to model year 2019 N3/9 |
GF07.16-P-6000ORB | ||
| Model 253 (except 253.99) with engine 642.8 up to model year 2020 N3/9 |
GF07.16-P-6000OGY | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 177.9 up to model year 2019 Model 253 (except 253.99) with engine 177.9 up to model year 2020 N3/10 |
GF07.61-P-6000MNA | |
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 up to model year 2019 Model 253 (except 253.353/354/953/954) with engine 274.9 up to model year 2020 N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 up to model year 2019 Model 253.353/354/953/954 with engine 274.9 up to model year 2020 N3/10 |
GF07.61-P-6000MRH | ||
| Model 205 with engine 276.8 up to model year 2019 Model 253 (except 253.99) with engine 276.8 up to model year 2020 N3/10 |
GF07.61-P-6000MMV | ||
| Active engine mount control unit, component description | Model 205 with engine 177.9 up to model year 2019 with code 466 (Active engine mount) N3/42 |
GF22.10-P-2001MNA | |
| AMG sports suspension control unit, component description | Model 205 up to model year 2019 with code 466 (Active engine mount) Model 205 up to model year 2019 with code 467 (Electronic locking differential) N3/43 |
GF54.21-P-1002RF | |
| Model 253 (except 253.99) up to model year 2020 with code 467 (Electronic locking differential) N3/43 |
GF54.21-P-1002AVJ | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Rear climate control operating unit, component description | Model 205 up to model year 2019 with code 581 (Automatic climate control) Model 253 (except 253.99) up to model year 2020 with code 581 (Automatic climate control) N22/4 |
GF83.40-P-3050RF | |
| Rear control unit, component description | Model 205.3 up to model year 2019 with code U02 (Belt extender, electric) Model 205.4 up to model year 2019 N22/6 |
GF54.21-P-4134RF | |
| Seat heater control unit, component description | Model 205 up to model year 2019 with code 401 (Seat climate control for driver and front passenger) or code 873 (Seat heating for driver and front passenger) or code 872 (Seat heating in rear), model 253 (except 253.99) up to model year 2020 with code 401 (Seat climate control for driver and front passenger) or code 873 (Seat heating for driver and front passenger) or code 872 (Seat heating in rear) N25/4, N25/5, N25/6, N25/17 | GF91.30-P-5214RF | |
| ATA/tow-away protection/interior protection control unit, component description | Model 205 up to model year 2019 with code 551 (Standard anti-theft alarm system (ATA)) with code 882 (Interior protection and tow-away protection) Model 253 (except 253.99) up to model year 2020 with code 551 (Standard anti-theft alarm system (ATA)) with code 882 (Interior protection and tow-away protection) N26/3, N26/6 |
GF80.50-P-4131RF | |
| Special vehicle multifunction control unit (SVMCU (MSS)), component description | Model 205 up to model year 2019 with code 965 (Taxi/rental car - electrical pre-installation) N26/9 |
GF54.21-P-4010RF | |
| Component description for trailer recognition control unit | Model 205 up to model year 2019 with code 550 (Trailer coupling) Model 253 (except 253.99) up to model year 2020 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) up to model year 2019 Model 253 (except 253.353/354/953/954/99) up to model year 2020 N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/047/147/212/247 up to model year 2019 Model 253.353/354/953/954 up to model year 2020 N30/4 |
GF42.45-P-5119RFH | ||
| Component description for driver seat control unit | Model 205 up to model year 2019 with code 221 (Electrically adjustable left driver seat) Model 205 up to model year 2019 with code 275 (Memory Package (driver's seat, steering column and mirror)) Model 253 (except 253.99) up to model year 2020 with code 221 (Electrically adjustable left driver seat) Model 253 (except 253.99) up to model year 2020 with code 275 (Memory Package (driver's seat, steering column and mirror)) N32/1 |
GF91.29-P-5231RF | |
| Component description for front passenger seat control unit | Model 205 up to model year 2019 with code 222 (Electrically adjustable right driver seat) Model 205 up to model year 2019 with code 242 (Front passenger seat, electrically adjustable with memory function) Model 253 (except 253.99) up to model year 2020 with code 222 (Electrically adjustable right driver seat) Model 253 (except 253.99) up to model year 2020 with code 242 (Front passenger seat, electrically adjustable with memory function) N32/2 |
GF91.29-P-5241RF | |
| Catalytic converter heater control unit, component description | Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 with code 494 (US version) N33/3 |
GF14.00-P-0002OLD | |
| Component description for NOx sensor control unit | Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 up to model year 2019 with code 920 (Direct Fuel injection with stratified charging) Model 253 (except 253.354/954) with engine 274.9 up to model year 2020 with code 920 (Direct Fuel injection with stratified charging) N37/4 |
GF14.40-P-3024MRA | |
| Model 205.012/212 with engine 651.9 up to model year 2019 N37/7, N37/8 |
GF14.40-P-3024OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 with code U77 (Diesel Emission control BLUETEC (SCR)) Model 253 with engine 651.9 up to model year 2020 with code U77 (Diesel Emission control BLUETEC (SCR)) N37/7, N37/8 |
GF14.40-P-3024OLD | ||
| Model 205 with engine 626 up to model year 2019 N37/7, N37/8 |
GF14.40-P-3024ORB | ||
| Model 253 with engine 642.8 up to model year 2020 with code U77 (Diesel Emission control BLUETEC (SCR)) N37/7, N37/8 |
GF14.40-P-3024OGY | ||
| Engine sound control unit, component description | Model 205 up to model year 2019 with code B63 (Engine sound via speakers) Model 253 (except 253.99) up to model year 2020 with code B63 (Engine sound via speakers) N40/1 |
GF54.21-P-0019RF | |
| Component description for sound system amplifier control unit | Model 205 up to model year 2019 with code 810 (Premium sound system) Model 253 (except 253.99) up to model year 2020 with code 810 (Premium sound system) N40/3 |
GF82.62-P-5010RF | |
| Camera cover control unit, component description | Model 205 up to model year 2019 with code 218 (Rear view camera) Model 205 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) up to model year 2020 with code 501 (360° camera) N42 |
GF54.65-P-5005RF | |
| All-wheel drive control unit, component description | Model 253 with transmission 725.096 up to model year 2020 N45 |
GF28.19-P-3210AVJ | |
| AIRMATIC control unit, component description | Model 205 up to model year 2019 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC Dual Control/semi-active air suspension) N51/3 |
GF32.22-P-5110RF | |
| AIR BODY CONTROL control unit, component description | Model 253 (except 253.99) up to model year 2020 with code 489 (AIR BODY CONTROL) N51/3, N51/8 |
GF32.22-P-5111RF | |
| Component description for adaptive damping system control unit | Model 205 up to model year 2016 with code 492 (AMG performance suspension) with code B59 (AGILITY SELECT) Model 205 up to model year 2019 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 up to model year 2019 with code 488 (Steel/air suspension) Model 205 up to model year 2019 with code 677 (AGILITY CONTROL suspension) N51/5 |
GF32.32-P-1010RF | |
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260RF | |
| Parking system control unit component description | Model 205 up to model year 2019 with code 235 (Active Parking Assist) Model 253 (except 253.99) up to model year 2020 with code 235 (Active Parking Assist) N62 |
GF54.65-P-5002RF | |
| Component description for radar sensors control unit | Model 205 up to model year 2019 with code 23P (Drive package) Model 253 (except 253.99) up to model year 2020 with code 23P (Drive package) N62/1 |
GF30.30-P-3301RF | |
| Component description for reversing camera control unit | Model 205 up to model year 2019 with code 218 (Rear view camera) except code 235 (Active Parking Assist) Model 253 (except 253.99) up to model year 2020 with code 218 (Rear view camera) except code 235 (Active Parking Assist) N66/2 |
GF54.65-P-5030RFM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N69/3, N69/4 |
GF72.29-P-6021RF | |
| Component description for KEYLESS-GO control unit | Model 205 up to model year 2019 with code 889 (KEYLESS-GO) Model 205 up to model year 2019 with code 893 (KEYLESS-Start) Model 253 (except 253.99) up to model year 2020 with code 889 (KEYLESS-GO) Model 253 (except 253.99) up to model year 2020 with code 893 (KEYLESS-Start) N69/5 |
GF80.61-P-4204RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RF | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RF | |
| Soot particulate sensor control unit, component description | Model 253 (except 253.99) with engine 642.8 up to model year 2020 with code 927 (EU6 emissions standard) N74 |
GF14.40-P-2020OLD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RF | |
| Component description for battery management system control unit | Model 205.012/212 with engine 651.921 up to model year 2019 Model 205.047/147/247 with engine 274.920 up to model year 2019 Model 253.353/953 with engine 274.920 up to model year 2020 Model 253.354/954 with engine 274.920 up to model year 2020 N82/2 |
GF54.10-P-3012RFH | |
| Component description for DC/DC converter control unit | Model 253.354 with engine 274.920 up to model year 2020 Model 253.954 with engine 274.920 up to model year 2020 N83/1 |
GF54.10-P-3006RFH | |
| High-voltage charger control unit, component description | Model 205.047/053/054/147/247/253 with engine 274.920 up to model year 2019 Model 253.353/953 with engine 274.920 up to model year 2020 Model 253.354/954 with engine 274.920 up to model year 2020 N83/5 |
GF08.20-P-2000RFH | |
| Component description for tire pressure monitor control unit | Model 205 up to model year 2019 with code 475 (Tire pressure monitor (TPM)) Model 253 (except 253.99) up to model year 2020 with code 475 (Tire pressure monitor (TPM)) N88 |
GF40.15-P-5124RF | |
| Component description for transmission oil auxiliary oil pump control unit | Model 205 with transmission 722.9 (except 722.930) up to model year 2019 N89 |
GF27.19-P-4031AHE | |
| Model 205 with transmission 722.930 up to model year 2019 N89 |
GF27.19-P-4031AIA | ||
| Component description for Weight Sensing System (WSS) control unit | Model 205 up to model year 2019 with code U10 (Front passenger seat with weight sensor) Model 253 (except 253.99) up to model year 2020 with code U10 (Front passenger seat with weight sensor) N110 |
GF91.60-P-4069RF | |
| Telematics services communications module, component description | Model 205, 253 (except 253.99) up to model year 2017 with code 06U (Mercedes connect me standard services) Model 205, 253 (except 253.99) up to model year 2017 with code 350 (Ecall emergency call system, Europe) Model 205, 253 (except 253.99) up to model year 2017 with code B54 (Live Traffic Information) Model 205, 253 (except 253.99) up to model year 2017 with code B57 (KOM Module battery charging) N112/1 |
GF82.85-P-0220RF | |
| HERMES control unit, component description | Model 205 up to model year 2019 with code 360 (HERMES UMTS) Model 205 up to model year 2019 with code 362 (HERMES communications module LTE) Model 253 (except 253.99) up to model year 2020 with code 360 (HERMES UMTS) Model 253 (except 253.99) up to model year 2020 with code 362 (HERMES communications module LTE) N112/9 |
GF82.85-P-0221RF | |
| Component description for fuel pump control unit | Model 205 with engine 177.9 up to model year 2019 Model 253 with engine 177.9 up to model year 2020 N118 |
GF47.40-P-2001MNA | |
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 up to model year 2019 Model 253 (except 253.353/354/953/954) with engine 274.9 up to model year 2020 N118 |
GF47.40-P-2001MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 up to model year 2019 Model 253.353/354/953/954 with engine 274.9 up to model year 2020 N118 |
GF47.40-P-2001MRH | ||
| Model 205 with engine 276.8 up to model year 2019 Model 253 with engine 276.8 up to model year 2020 N118 |
GF47.40-P-2001MMV | ||
| Model 205.012/212 with engine 651.9 up to model year 2019 N118 |
GF47.40-P-2001OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 Model 253 with engine 642.8 up to model year 2020 Model 253 with engine 651.9 up to model year 2020 N118 |
GF47.40-P-2001OLD | ||
| Model 205 with engine 626 up to model year 2019 N118 |
GF47.40-P-2001ORB | ||
| Component description for exhaust aftertreatment control unit | Model 205.012/212 with engine 651.921 up to model year 2019 N118/5 |
GF14.40-P-3030OLC | |
| Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 with code U77 (Diesel Emission control BLUETEC (SCR)) Model 253 with engine 642.8 up to model year 2020 with code U77 (Diesel Emission control BLUETEC (SCR)) Model 253 with engine 651.9 up to model year 2020 with code U77 (Diesel Emission control BLUETEC (SCR)) N118/5 |
GF14.40-P-3030OLD | ||
| Model 205 with engine 626 up to model year 2019 N118/5 |
GF14.40-P-3030ORB | ||
| Trunk lid/liftgate control control unit, component description | Model 205.0/1/3 up to model year 2019 with code 881 (Remote boot-lid closing) Model 205.2 up to model year 2019 with code 890 (Automatic rear-end door) Model 253 (except 253.99) up to model year 2020 with code 890 (Automatic rear-end door) N121, N121/1 |
GF80.20-P-6092RF | |
| Component description for emergency call system control unit | Model 205, 253 (except 253.99) up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212RFU | |
| Drivetrain control unit, component description | Model 205 with engine 626 up to model year 2019 N127 |
GF54.21-P-2141ORB | |
| Model 205.012/212 with engine 651.921 up to model year 2019 N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 Model 253 with engine 642.8 up to model year 2020 Model 253 with engine 651.9 up to model year 2020 N127 |
GF54.21-P-2141OLD | ||
| Model 205 with engine 177.9 up to model year 2019 Model 253 with engine 177.9 up to model year 2020 N127 |
GF54.21-P-2141MNA | ||
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 up to model year 2019 Model 253 (except 253.353/354/953/954) with engine 274.9 up to model year 2020 N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 up to model year 2019 Model 253.353/354/953/954 with engine 274.9 up to model year 2020 N127 |
GF54.21-P-2141MRH | ||
| Model 205 with engine 276.8 up to model year 2019 Model 253 with engine 276.8 up to model year 2020 N127 |
GF54.21-P-2141RF | ||
| Electric parking brake control unit, component description | Model 205.086/087/286/287/386/387/486/487 up to model year 2019 N128 |
GF42.20-P-5005RF | |
| Component description for power electronics control unit | Model 205.012/212 with engine 651.921 up to model year 2019 Model 205.047/053/054/147/247/253 with engine 274.920 up to model year 2019 Model 253.353/953 with engine 274.920 up to model year 2020 Model 253.354/954 with engine 274.920 up to model year 2020 N129/1 |
GF08.20-P-1001RFH | |
| Component description for 360 degree viewing system control unit | Model 205 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) up to model year 2020 with code 501 (360° camera) N148 |
GF54.65-P-5003RF | |
| Component description for fully integrated transmission control unit | Model 205 with transmission 722.9 (except 722.930) up to model year 2019 Y3/8n4 |
GF27.60-P-5165AHE | |
| Model 205 with transmission 722.930 up to model year 2019 Y3/8n4 |
GF27.60-P-5165AIA | ||
| Model 205 with transmission 724.2 up to model year 2019 Y3/8n4 |
GF27.60-P-5165RFH | ||
| Model 205 with transmission 725.0 (except 725.017) up to model year 2019 Y3/8n4 |
GF27.60-P-5165ANG | ||
| Model 253 (except 253.99) with transmission 725.0 up to model year 2020 Y3/8n4 |
GF27.60-P-5165ANI | ||
| Overall network (GVN) function description table of contents | GF00.19-P-0999RF |
