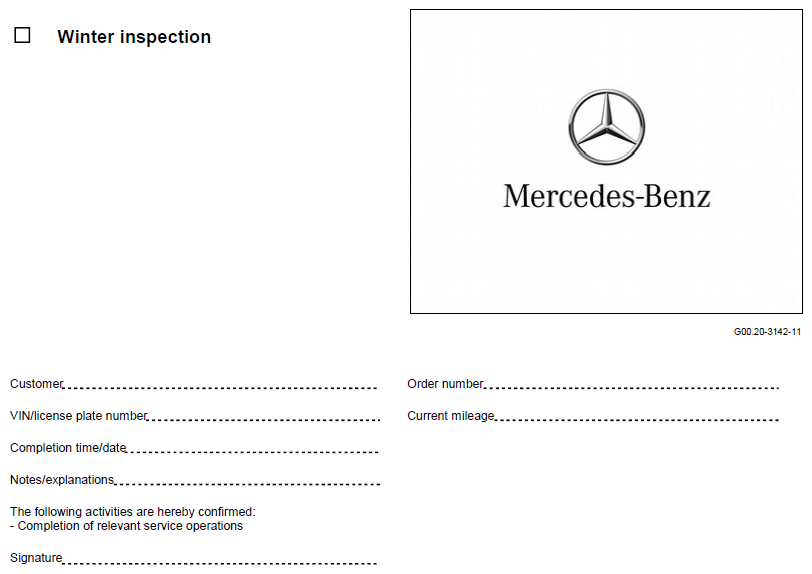

Winter Inspection - AP00.20-P-0082A

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463

Courtesy of MERCEDES-BENZ USA

W		Input condition not OK:	ⓧ
Completed
[X]

	Brake system
□	Perform brake test and enter result in table	........................................... Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019	◦	AP42.00-P-4290BA
		Model 243		AP42.00-P-4290EQ
		Model 463 up to model year 2019		AP42.00-P-4290G
	Vehicle exterior
□	Check condition of vehicle exterior.	...........................................	◦	AP60.00-P-6048U
□	Check condition of wiper blades.	...........................................	◦	AP82.30-P-8253G
□	Check exterior lighting for proper operation.	...........................................	◦	AP82.10-P-8252EW
	Battery
□	Check condition of battery.	........................................... Batteries older than 24 months. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293, 463 The battery is located in the engine compartment, trunk or vehicle interior depending on the model.	◦	AP54.10-P-5449U
	Vehicle interior
□	Check windshield wipers, windshield washer system and, if necessary, headlamp cleaning system for proper operation.	...........................................	◦	AP82.30-P-8249U
	Engine compartment
□	Check engine oil level.	........................................... Engine 111, 112, 113, 133, 139, 152, 156, 157, 159, 176, 177, 178, 256, 260, 264, 266, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 607, 608, 611, 612, 626, 628, 629, 640, 642, 646, 647, 648, 651, 654, 656	◦	AP18.00-P-1848U
□	Check main circuit coolant level in expansion reservoir.	...........................................	◦	AP20.30-P-2049U
□	Brake system: Check fluid level.	...........................................	◦	AP42.10-P-4247U
□	Windshield washer system: Check/correct fluid level.	........................................... When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.	◦	AP82.35-P-8249U
	Underside of vehicle
□	Check condition of vehicle underside.	...........................................	◦	AP60.00-P-6049U
	Tires
□	Correct tire pressure and enter set tire pressure in table.	...........................................	◦
		Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019		AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 243		AP40.15-P-4061EQ
		Model 463 up to model year 2019		AP40.15-P-4060G
	Trunk
□	Check/correct tire pressure spare wheel and enter set tire pressure into table.	........................................... Vehicle with spare wheel. Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019	◦	AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 243		AP40.15-P-4061EQ
		Model 463 up to model year 2019		AP40.15-P-4060G
□	Check TIREFIT tire sealant.	........................................... Vehicle with TIREFIT. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 with code LQ0 (G650 Landaulet) Model 463 with code MUK2 (USA or Canada vehicle model designation) Model 463 with code ZQ0 (G 500 4x42) Enter expiration date here: __________ Replace TIREFIT, invoice as additional operation.	◦	AP40.10-P-4054R

BRAKE VALUES

	Left	Right
Front
Rear
Parking brake

SET TIRE PRESSURE IN BAR OR PSI

	Front axle	Rear axle	Spare tire
bar/psi
