Remove/Install Engine From/Onto Front Axle Carrier - AR01.10-P-2510MRP
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 253
with code M005 (Vehicles with 4MATIC/all-wheel drive)
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||

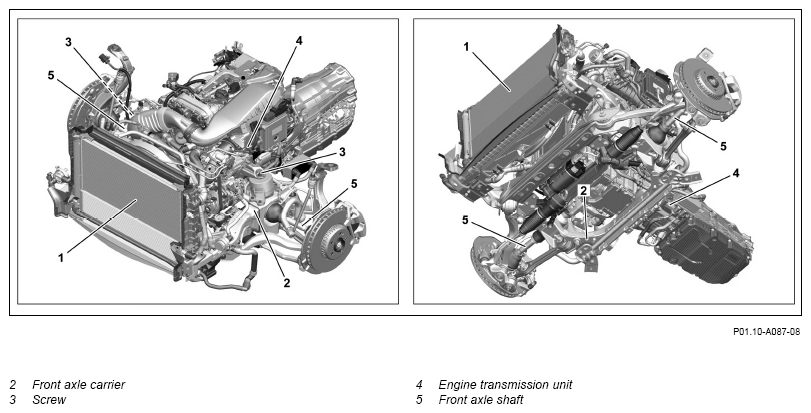

| 1 | Remove engine with the front axle carrier (2). | AR01.10-P-2500MRP | |
| 2 | Attach load tilter to engine crane and all existing engine lifting lugs and slightly lift engine. | ||
| 000 588 00 62 00 Load tilter | Do not subject front engine mounts to tension when lifting. Otherwise, damage to the front engine mounts will occur. Load tilter |
WS01.00-P-0102B | |
| 3 | Remove front axle shafts (5). | AR33.30-P-0620LW | |
| 4 | Remove screws (3) of the left and right engine mount. | with code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, front engine mount to engine support |
*BA22.10-P-1001-03M |
| 5 | Remove engine transmission unit (4) from front axle carrier (2). | ||
| 000 588 00 62 00 Load tilter | Carefully lift engine transmission unit (4). Otherwise damage may occur. |
WS01.00-P-0102B | |
| 6 | Install in the reverse order. |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 253 (except 253.388/389/988/989/992/993) | ||
|---|---|---|---|---|
| BA22.10-P-1001-03M | Bolt, front engine mount to engine support | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | - | ||
