Replace Complete Center Roof Paneling - Ar65.10-P-1000LF
Model 205.0/1
except code 413 (Panoramic sliding sunroof/glass roof)
Model 222
except code 413 (Panoramic sliding sunroof/glass roof)

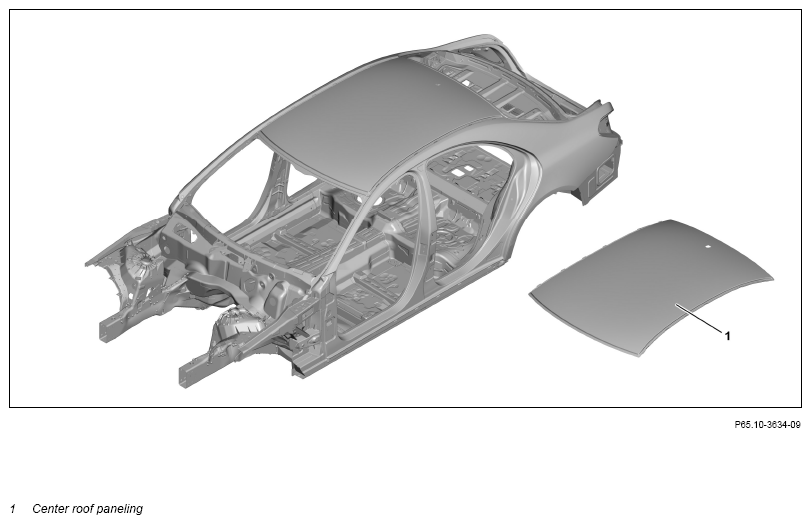

Fig 1: Center Roof Panel Component Location (Model 205.0/1 & 222 Except Code 413) (Shown On Model 222)
Shown on MODEL 222 except CODE 413 (Panoramic sliding roof) and except CODE Z07 (Top protection)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A . | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of explosion from aluminum grinding dust, risk of injury to respiratory system from inhaling dust | Wear dust filter mask, safety glasses and protective gloves. Use a suitable, grounded dust extraction system. |
AS60.00-Z-0007-01N . | |
| Topical note | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A . | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A . | |
| Topical note | Notes on battery | AH54.10-P-0001-01A . | |
| General information on body repair | AH60.00-N-0001-01A . | ||
| Note on working on aluminum components and vehicles | Model 222 except code 413 (Panoramic sliding sunroof/glass roof) |
AH60.00-P-0034-01LF | |
| Note on working on aluminum components and vehicles | Model 205.0/1 except code 413 (Panoramic sliding sunroof/glass roof) |
AH60.00-P-0034-01LW . | |
| General information on MB materials | AH98.00-P-9409-03A . | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in the vehicle with protective covers. | ||
| 3 | Remove roof armor plate. | Model 222 with code Z07 (B7 armoring on special protection version) except code 413 (Panoramic sliding sunroof/glass roof) |
|
| 4 | Remove center roof paneling (1). | AR65.10-P-1000-02LF . | |
| 000 588 00 84 00 Heat gun | Body power jigsaw Cutting wire |
WS54.00-P-0049B . | |
| 2-component adhesive repair kit, Betaforce 2850L | *BR00.45-Z-1154-02A . | ||
| 5 | Paint center roof paneling (1). | ||
| 6 | Prepare center roof paneling (1). | AR65.10-P-1000-03LF . | |
| 2-component adhesive repair kit, Betaforce 2850L | *BR00.45-Z-1154-02A . | ||
| Install | |||
| Risk of poisoning caused by inhaling vapors or swallowing adhesive. Risk of injury caused by adhesive coming into contact with skin and eyes | Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. | AS00.00-Z-0016-01A . | |
| 7 | Install center roof paneling (1). | AR65.10-P-1000-07LF . | |
except code 413 (Panoramic sliding sunroof/glass roof) Model 222 except code 413 (Panoramic sliding sunroof/glass roof) except code Z07 (B7 armoring on special protection version) Nut, roof carrier mount |
*BA65.10-P-1001-01C . | ||
with code Z07 (B7 armoring on special protection version) except code 413 (Panoramic sliding sunroof/glass roof) Bolt, roof carrier mount |
*BA65.10-P-1007-01C . | ||
| Teroson MS 222 | *BR00.45-Z-1157-02A . | ||
| 2-component adhesive repair kit, Betaforce 2850L | *BR00.45-Z-1154-02A . | ||
| 8 | Remove protective covers. | ||
| 9 | Install roof armor plate. | Model 222 with code Z07 (B7 armoring on special protection version) except code 413 (Panoramic sliding sunroof/glass roof) |
|
| *BA65.10-P-1002-01C . | |||
| *BA65.10-P-1003-01C . | |||
| *BA65.10-P-1004-01C . | |||
| *BA65.10-P-1006-01C . | |||
| 10 | Clean repair area. | ||
| 11 | Install all detachable parts in area of repair point. |
ROOF (BA65.10-P-1001-01C) (Model 205, Model 222 Except Code Z07)
| Number | Designation | Model 205 | Model 222 except code Z07 (B7 armoring on special protection version) |
|
|---|---|---|---|---|
| BA65.10-P-1001-01C | Nut, roof carrier mount | Nm | 14 | 14 |
ROOF (BA65.10-P-1002-01C) (Model 222 W/Code Z07)
| Number | Designation | Model 222 with code Z07 (B7 armoring on special protection version) |
||
|---|---|---|---|---|
| BA65.10-P-1002-01C | Nut, front guard plate on roof frame to roof guard plate | M6 | Nm | 8 |
ROOF (BA65.10-P-1003-01C) (Model 222 W/Code Z07)
| Number | Designation | Model 222 with code Z07 (B7 armoring on special protection version) |
||
|---|---|---|---|---|
| BA65.10-P-1003-01C | Bolt, front guard plate on roof frame to roof guard plate | M8 | Nm | 23 |
ROOF (BA65.10-P-1004-01C) (Model 222 W/Code Z07)
| Number | Designation | Model 222 with code Z07 (B7 armoring on special protection version) |
||
|---|---|---|---|---|
| BA65.10-P-1004-01C | Bolt, rear guard plate on roof frame to roof guard plate | M8 | Nm | 23 |
ROOF (BA65.10-P-1006-01C) (Model 222 W/Code Z07)
| Number | Designation | Model 222 with code Z07 (B7 armoring on special protection version) |
||
|---|---|---|---|---|
| BA65.10-P-1006-01C | Bolt for roof guard plate bracket | M10 | Nm | 50 |
ROOF (BA65.10-P-1007-01C) (Model 222 W/Code Z07)
| Number | Designation | Model 222 with code Z07 (B7 armoring on special protection version) |
|
|---|---|---|---|
| BA65.10-P-1007-01C | Bolt, roof carrier mount | Nm | 11 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1154-02A | 2-component adhesive repair kit, Betaforce 2850L | A 012 989 12 71 |
| BR00.45-Z-1157-02A | Teroson MS 222 | A 012 989 14 71 |
