Remove/Install Front Side Window Seal On A-Pillar - AR72.10-P-1907LWR

Model 205.4

Model 238.4

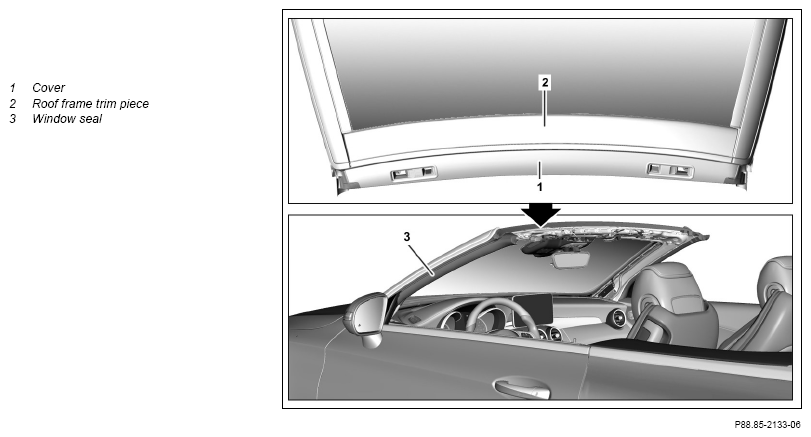

Fig 1: Front Side Window Seal On A-Pillar Components Location - Model 205.4; Shown Except Code 288

Courtesy of MERCEDES-BENZ USA

Shown except code 288 (Draft stop for Cabriolet)

	Remove
1	Open driver and front passenger doors
2	Remove overhead control panel		AR82.20-P-1000LWR
3.1	Remove wind deflector	Model 205.4, 238.4 with code 288 (Draft stop for convertible)	AR77.20-P-2500LWR
3.2	Remove trim roof frame (2)	Model 205.4, 238.4 except code 288 (Draft stop for convertible)	AR88.85-P-0001LWR
4	Remove cover (1)	Model 205.4, 238.4 except code 288 (Draft stop for convertible)
5	Remove window seal (3)
	Install
6	Glue window seal (3) into A-pillar		AR72.10-P-1907-01LCA
		Cleaner	*BR00.45-Z-1025-04A
		Butyl cord Terostat 81 0 6 mm	*BR00.45-Z-1085-01A
7	Install cover (1)	Model 205.4, 238.4 except code 288 (Draft stop for convertible) Observe installation position of outer seals on cover (1).
8.1	Install roof frame trim piece (2)	Model 205.4, 238.4 except code 288 (Draft stop for convertible)	AR88.85-P-0001LWR
8.2	Install wind deflector	Model 205.4, 238.4 with code 288 (Draft stop for convertible)	AR77.20-P-2500LWR
9	Install overhead control panel		AR82.20-P-1000LWR
