Remove/Install Supplemental Restraint Systems (SRS) Control Unit - AR91.60-P-0624LW
Model 205
Model 213
Model 238
Model 253
Model 293

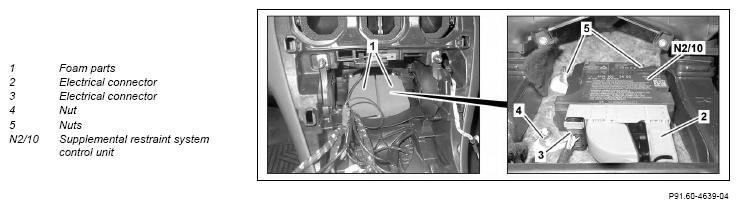

Shown on Model 205
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/Install | |||
| 1 | Carry out commissioning of SRS control unit (N2/10). | When replacing supplemental restraint system control unit (N2/10). | |
| Model 293 | AD00.00-P-2000-06FR | ||
| Model 205, 213, 253 | AD00.00-P-2000-04B | ||
| Model 238 | AD00.00-P-2000-06LWO | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Detach ground line of on-board electrical system battery. | Model 293 | AR54.10-P-0003EQ |
| Model 205, 213, 253 | AR54.10-P-0003LW | ||
| Model 238 | AR54.10-P-0003LWO | ||
| 4 | Remove head unit. | Model 293 Model 205 as of model year 2019 with code 531 (COMAND® APS) Model 205 with code 506 (Audio 20 NTG 5.5 radio) |
AR82.85-P-1101EQ AR82.85-P-1101LWM |
| Model 205, 253 with code 520 (Audio 20 USB) Model 205, 253 with code 522 (Audio 20 radio) Model 205 up to model year 2019 with code 531 (COMAND® APS) Model 253 with code 531 (COMAND® APS) |
AR82.85-P-1100LW | ||
| Model 213, 238 | AR82.85-P-1101LWE | ||
| 5 | Remove foam parts (1). | ||
| 6 | Disconnect electrical connection (2, 3). | ||
| 7 | Detach nuts (4, 5). | *BA91.60-P-1007-01O | |
| 8 | Remove SRS control unit (N2/10). | ||
| 9 | Install in the reverse order. |
AIRBAG
| Number | Designation | Model 205.0/1/2/3 | Model 205.4 | |
|---|---|---|---|---|
| BA91.60-P-1007-01O | Restraint system control unit to vehicle floor | Nm | 10 | 10 |
AIRBAG
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA91.60-P-1007-01O | Restraint system control unit to vehicle floor | Nm | 10 | 10 |
AIRBAG
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA91.60-P-1007-01O | Restraint system control unit to vehicle floor | Nm | 10 | 10 |
