Remove/Install Frontal Acceleration Sensor - AR91.60-P-0750LW

Model 205

Model 213

Model 238

Model 253

Model 293

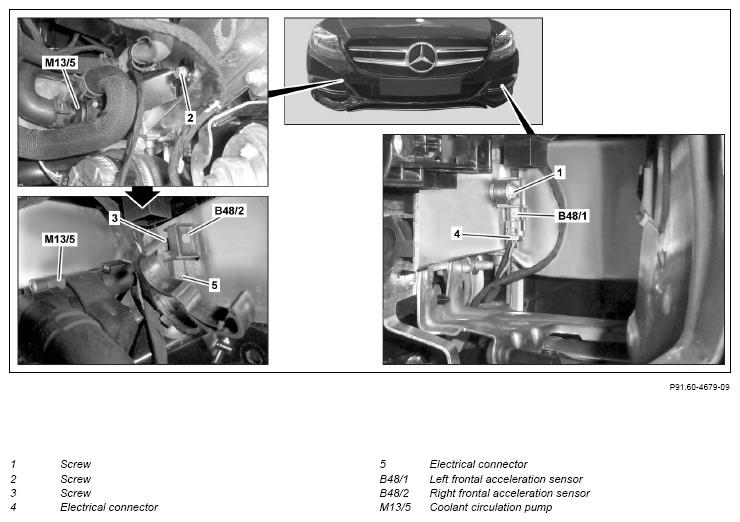

Fig 1: Frontal Acceleration Sensor Components Location - Model 205

Courtesy of MERCEDES-BENZ USA

Shown on Model 205

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/Install
1	Disconnect ground line from on-board electrical system battery.	Model 293	AR54.10-P-0003EQ
		Model 238	AR54.10-P-0003LWO
		Model 205, 213, 253	AR54.10-P-0003LW
2.1	Loosen fender liner far enough to gain access to left frontal acceleration sensor (B48/1) or right frontal acceleration sensor (B48/2).	Model 205, 253, 293 Model 213 (except 213.088/089/288/289), 238 except code 489 (AIR BODY CONTROL) Model 213.088/089/288/289 Model 205, 253, 293	AR88.10-P-1300LW
		Model 213 (except 213.088/089/288/289), 238 except code 489 (AIR BODY CONTROL)   Model 213.088/089/288/289	AR88.10-P-1300LWE
2.2	Remove center front engine compartment lining.	Model 213 (except 213.088/089/288/289), 238 with code 489 (AIR BODY CONTROL)
			AR61.20-P-1105LWE
3	Remove screw (2) and place coolant circulation pump (M13/5) to one side with lines connected.	Model 205, 213, 238, 253 Only when removing right frontal acceleration sensor (B48/2).
4	Separate electrical connector (4, 5).
5	Remove screw (1, 3) and remove left frontal acceleration sensor (B48/1) or right frontal acceleration sensor (B48/2).	Screw/bolt, frontal acceleration sensor to bumper crossmember	*BA91.60-P-1009-01O
6	Install in the reverse order
7	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.
		Model 238	AD00.00-P-2000-06LWO
		Model 205	AD00.00-P-2000-04B
		Model 213 Model 253
		Model 293	AD00.00-P-2000-06FR
