(Remove/Install Front Fender Liner - AR88.10-P-1300LWE)
Model 213
Model 238

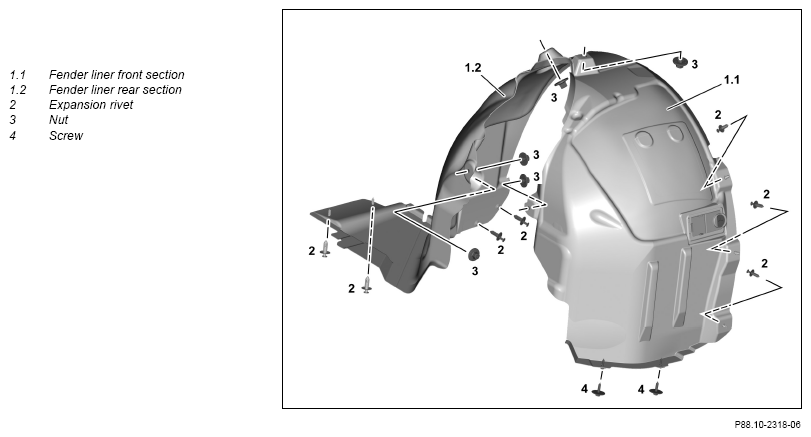

Shown on Model 213
| Remove/Install | |||
| 1 | Raise vehicle | AR00.60-P-1002LWG | |
| 2 | Remove bolt s (4) | ||
| 3 | Remove expansion rivets (2) | The number of expansion rivets (2) can vary. |
|
| 4 | Unscrew nuts (3) | The number of nuts (3) can vary. |
|
| 5 | Pull outer edges of fender liner front section (1.1) and fender liner rear section (1.2) inwards out of wheel arch lip and remove fender liner front section (1.1) and fender liner rear section (1.2) | ||
| 6 | Install in the reverse order | ||
