Remove/Install Front Seat Heater/Seat Ventilation Control Unit - AR91.30-P-0036LWO
Model 205 as of 6/1/15, 253 as of 6/1/15
with code 401 (Climatised Front Seats)
except code 221 (Electrically Adjustable Left Driver Seat)
except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)
except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)
Model 205 as of 6/1/15, 253 as of 6/1/15
with code 873 (Left And Right Driver's Seat Heating)
except code 221 (Electrically Adjustable Left Driver Seat)
except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)
except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)
Model 213
with code 401 (Climatised Front Seats)
except code 221 (Electrically Adjustable Left Driver Seat)
except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))
Model 213
with code 873 (Left And Right Driver's Seat Heating)
except code 221 (Electrically Adjustable Left Driver Seat)
except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))
Model 238
with code 401 (Climatised Front Seats)
except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))
Model 238
with code 873 (Left And Right Driver's Seat Heating)
except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))
Model 293
with code 401 (Climatised Front Seats)
except code 221 (Electrically Adjustable Left Driver Seat)
except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)
except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)
Model 293
with code 873 (Left And Right Driver's Seat Heating)
except code 221 (Electrically Adjustable Left Driver Seat)
except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)
except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)

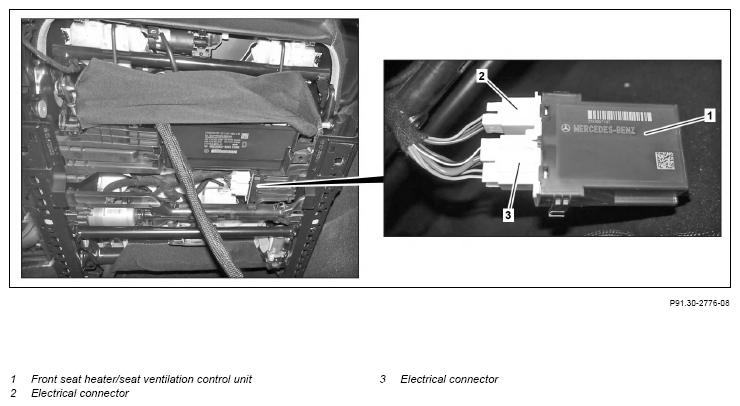

Shown on Model 238
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/Install | |||
| 1 | Commission front seat heating/seat ventilation control unit (1). | When replacing front seat heater/ventilation control unit (1). | |
| Model 293 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) Model 293 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) |
AD00.00-P-2000-06FR | ||
| Model 238 with code 401 (Climatised Front Seats) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) Model 238 with code 873 (Left And Right Driver's Seat Heating) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) |
AD00.00-P-2000-06LWO | ||
| Model 205 as of 6/1/15, 253 as of 6/1/15 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) Model 205 as of 6/1/15, 253 as of 6/1/15 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) Model 213 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) Model 213 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) |
AD00.00-P-2000-04B | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove bolts from guide rails of front passenger seat. | Model 205.0/1/2/3 as of 6/1/15, 253 as of 6/1/15 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) Model 205.0/1/2/3 as of 6/1/15, 253 as of 6/1/15 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) Model 213 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) Model 213 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) Model 238 with code 401 (Climatised Front Seats) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) Model 238 with code 873 (Left And Right Driver's Seat Heating) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) Model 293 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) Model 293 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) |
AR91.10-P-1000LW |
| Model 205.4 as of 6/1/15 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) Model 205.4 as of 6/1/15 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) |
AR91.10-P-1000LWR | ||
| 4 | Tilt back front passenger seat and unclip front seat heater/ventilation control unit (1). | ||
| 5 | Disconnect electrical connectors (2, 3) and remove front seat heater/ventilation control unit (1). | ||
| 6 | Install in the reverse order. |
