Remove/Install Front Seat Backrest Padding - AR91.10-P-0003LWX
Model 205, 213, 253 with code 555 (AMG-Performance Seat)
MODIFICATION NOTES
| 24.07.2019 | WIS Service Media added in operation step 3 and 13. |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove outer trim (6) from seat frame. | Model 205.0/1/2, 213, 253 with code 555 (AMG-Performance Seat) with code U22 (Lumbar support adjustment) |
AR91.10-P-1201LWA |
| Model 205.3/4 with code 555 (AMG-Performance Seat) with code U22 (Lumbar support adjustment) |
AR91.10-P-1201CLW | ||
| 2 | Remove trim (5) at inside from seat frame. | Model 205.0/1/2, 213, 253 with code 555 (AMG-Performance Seat) |
AR91.10-P-1202LW |

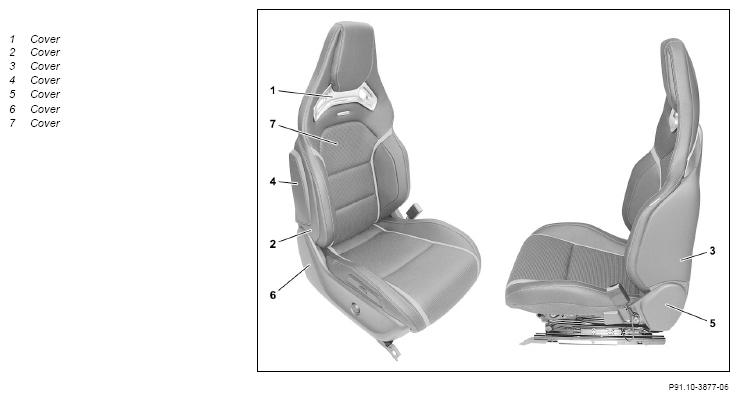

| Model 205.3/4 with code 555 (AMG-Performance Seat) |
AR91.10-P-1202CLW | ||
| 3 | Unclip trim (2, 3) and remove. | WIS Service Media multimedia:A supplement to the article is available. Operation steps 3 to 12 are shown here. |
Fig 2 |
| 4 | Remove clips on cover (4). | Fig 2 | |
| 5 | Remove screws from cover (4) and remove cover (4). | ||

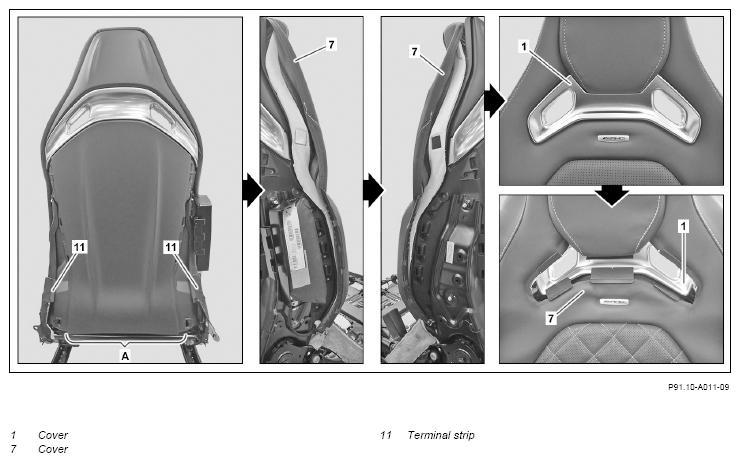

| 6 | Unhook clamping strips (11). | Fig 3 | |
| 7 | Unhook cover (7) at bottom from backrest (area A). | Fig 3 | |
| 8 | Loosen cover (7) all way round seat backrest, as shown, and turn inside out. | Fig 3 | |
| 9 | Unhook cover (7) from cover (1) all round. | Fig 3 | |
| 10 | Loosen seat backrest padding with cover (7). | Model 205, 213, 253 with code 401 (Climatized front seats) with code 555 (AMG-Performance Seat) Model 205, 213, 253 with code 555 (AMG-Performance Seat) with code 873 (Left and right driver's seat heating) |
|
| 11 | Disconnect electrical connector for seat heating. | Model 205, 213, 253 with code 401 (Climatized front seats) with code 555 (AMG-Performance Seat) Model 205, 213, 253 with code 555 (AMG-Performance Seat) with code 873 (Left and right driver's seat heating) |
|
| 12 | Disconnect seat ventilation motors electrical connector. | Model 205, 213, 253 with code 401 (Climatized front seats) with code 555 (AMG-Performance Seat) |
|
| 13 | Remove seat backrest padding with cover (7). | multimedia:A supplement to the article is available.
|
|
| 14 | Install in the reverse order |
