Remove/Install Reversing/Backup Camera - AR54.65-P-0030LWR
Model 205.3/4
with code 218 (Rear view camera)
Model 205.3/4
with code 501 (360° camera)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition, select "Open camera cover" item in "Reversing camera" or "360° camera" menu and confirm. | ||
| 2 | Release both catches (arrows B) on swivel drive (9) and pull off cover (1). | ||
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 4 | Remove trim from trunk lid. | Model 205.3 with code 218 (Rear view camera) Model 205.3 with code 501 (360° camera) |
AR68.30-P-8151CLW |
| Model 205.4 with code 218 (Rear view camera) Model 205.4 with code 501 (360° camera) |
AR68.30-P-8151LWR | ||
| 5 | Remove trunk lock. | Model 205.3 with code 218 (Rear view camera) Model 205.3 with code 501 (360° camera) |
AR88.50-P-0003LW |

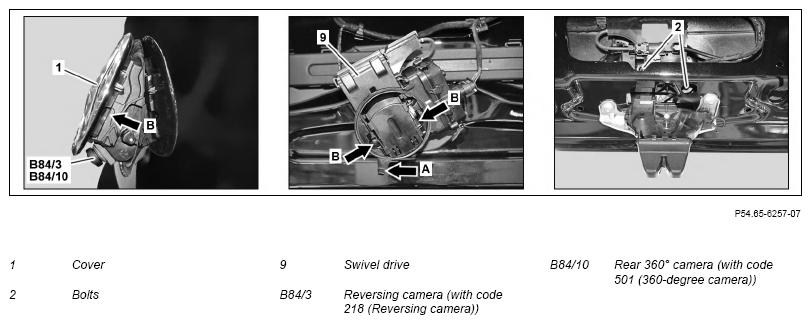

| 6 | Unscrew bolts (2). | ||

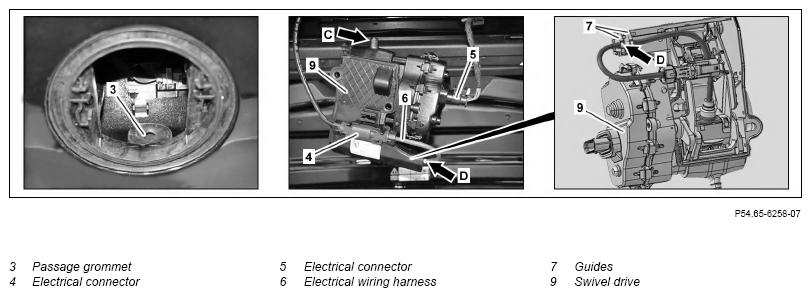

| 7 | Push back catch hook (arrow A), remove swivel drive (9) and disconnect electrical connectors (4, 5). | When removing and inserting swivel drive (9), do not apply any lateral force to guide bars (8). Otherwise the guide bars (8) can break. The marking (arrow D) must be in the outer guide (7). |
|
| 8 | Open cap (10) on swivel drive (9). | ||

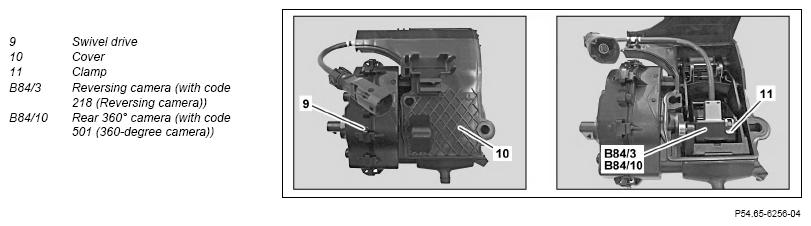

| 9 | Open clamp (11) and remove reversing camera (B84/3) or camera for rear 360° camera (B84/10). | ||
| 10 | Install in the reverse order. | ||
| 11 | Commission reversing camera (B84/3) using vehicle diagnosis system. | Model 205.3/4 with code 218 (Rear view camera) except code 235 (Active Parking Assist) When replacing reversing camera (B84/3). |
|
| AD00.00-P-2000-04B | |||
| 12.1 | Calibrate rear 360° camera (B84/10) or reversing camera (B84/3) using diagnostic system. | Model 205.3/4 with code 218 (Rear view camera) with code 235 (Active Parking Assist) Model 205.3/4 with code 501 (360° camera) |
|
| AD00.00-P-2000-04B | |||
| 12.2 | Calibrate reversing camera (B84/3) with vehicle diagnosis system. | Model 205.3/4 with code 218 (Rear view camera) except code 235 (Active Parking Assist) |
|
| AD00.00-P-2000-04B | |||
| Fig 2 |
