Retrofit Wiring Harness For Mercedes-Benz Dashcam At Front - AZ54.71-P-0002-01LW
Model 205.0/1/2
| Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A |
GROUND POINTS
| Number | Designation | Model 205 up to model year 2019 | Model 205 as of model year 2019 | ||
|---|---|---|---|---|---|
| BA00.19-P-1028-01E | Left footwell ground point | W34 | Nm | 10 | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1144-02A | Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | A 008 989 50 85 09 |

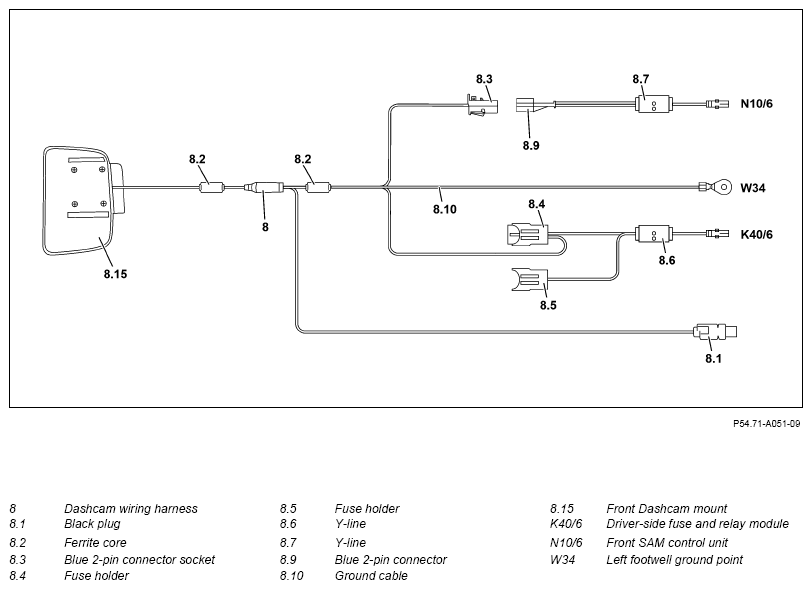

Connection scheme

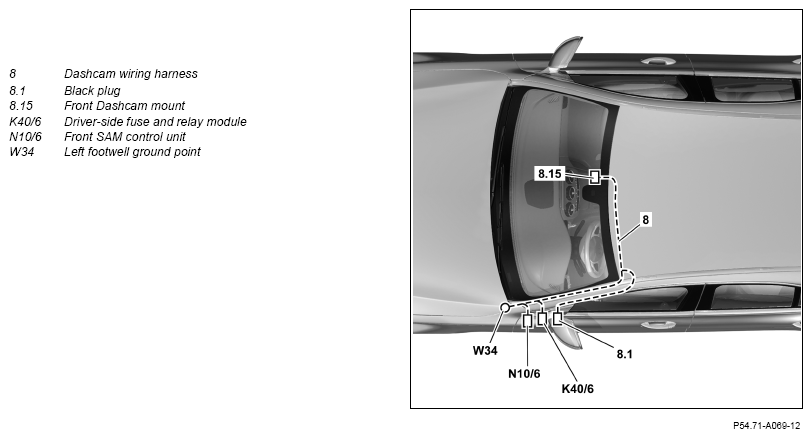

Routing diagram

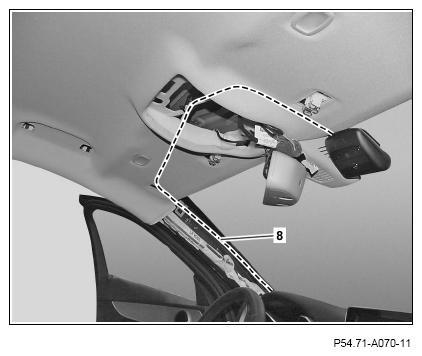

- Route Dashcam wiring harness (8) from front Dashcam mount under roof lining to the left to the A-pillar.

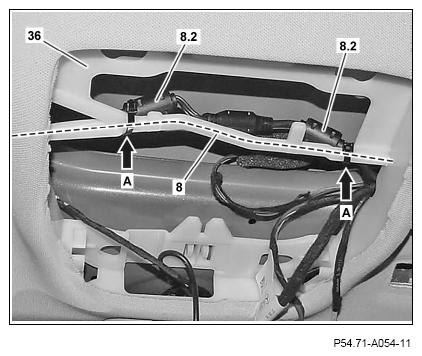

- Fasten ferrite core (8.2) of Dashcam wiring harness (8) using cable ties (arrows A) to overhead control panel mount (36).

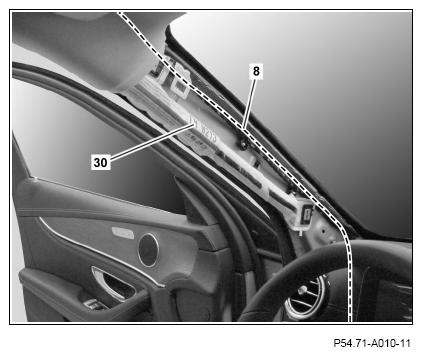

- Route the three single lines of the Dashcam wiring harness (8) above the window airbag (30).

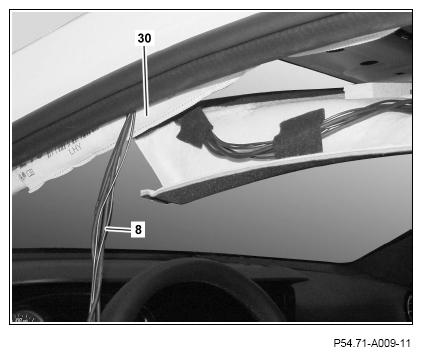

- Route the three single lines of the Dashcam wiring harness (8) above the window airbag (30) up to the footwell.
Route the three individual lines of the Dashcam wiring harness (8) behind the crossmember for the instrument panel.

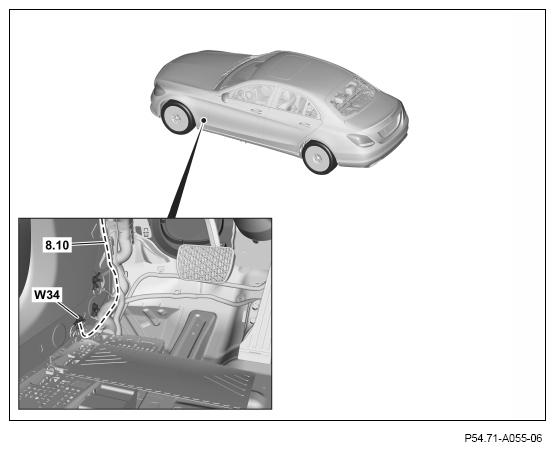

- Route ground line (8.10) of Dashcam wiring harness to left footwell ground point (W34) and connect.

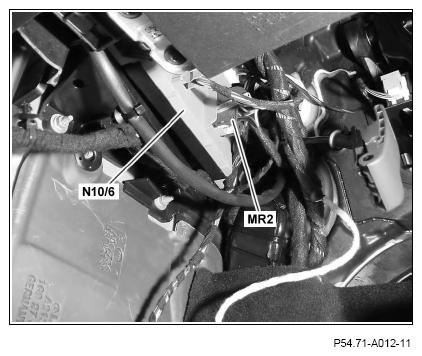

- Remove violet connector socket (MR2) at front SAM control unit (N10/6).
- Remove gray 21-pin connector socket insert from violet connector socket (MR2).

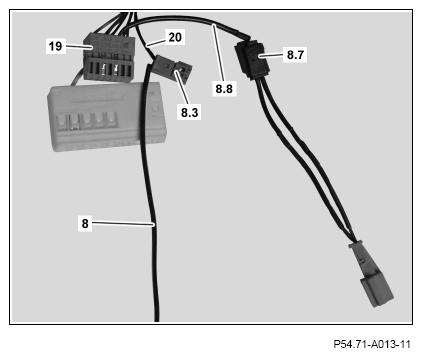

- Remove line (20) from contact cavity "29" of gray 21-pin connector socket insert (19).
or the supplementary passenger car wiring harness repair kit
- Install line (20) into free contact cavity of blue 2-pin connector socket (8.3) of Dashcam wiring harness (8).
- Lock blue 2-pin connector socket (8.3).
- Install line (8.8) of Y-line (8.7) in contact cavity "29" of gray 21-pin connector socket insert (19).
- Install gray 21-pin connector socket insert into violet connector socket (MR2).
- Attach violet connector socket (MR2) to front SAM control unit (N10/6).

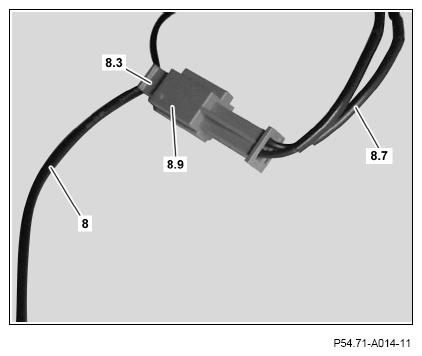

- Connect blue 2-pin connector socket (8.3) of Dashcam wiring harness (8) to blue 2-pin plug (8.9) of Y-line (8.7).

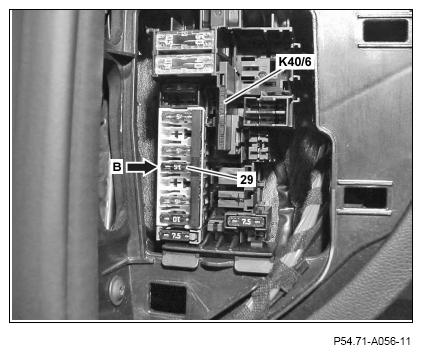

- Remove electrical fuse (29) from slot 207 (arrow B) of driver's side fuse and relay module (K40/6).
The fuse rating of the electrical fuse (29) is 15 A.
- Release yellow fuse holder (24) at driver's side fuse and relay module (K40/6).

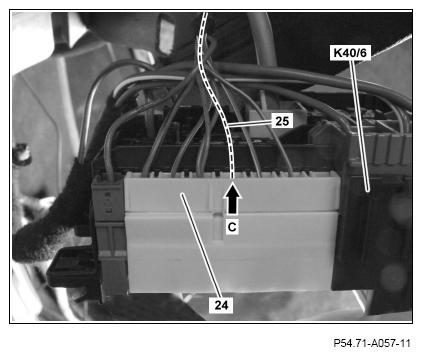

- Remove red/black line (25) from contact cavity "4" (arrow C) of yellow fuse holder (24).

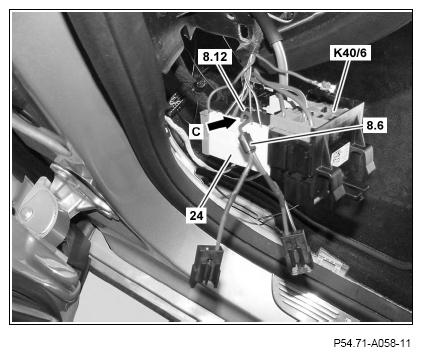

- Install red line (8.12) of Y-line (8.6) in contact cavity "4" (arrow C) of yellow fuse holder (24).
- Lock yellow fuse holder (24) at driver's side fuse and relay module (K40/6).

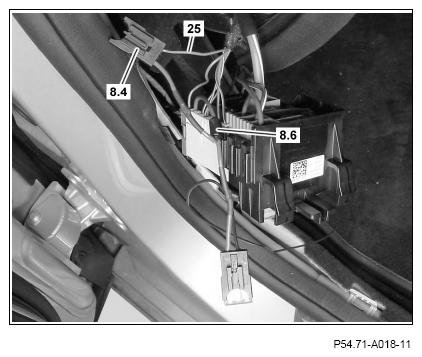

- Install removed red/black line (25) into free contact cavity of fuse holder (8.4) of Y-line (8.6).

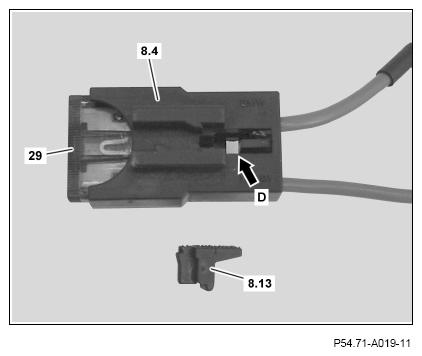

- Install lock (8.13) in fuse holder (8.4) (arrow D).
- Install electrical fuse (29) in fuse holder (8.4).

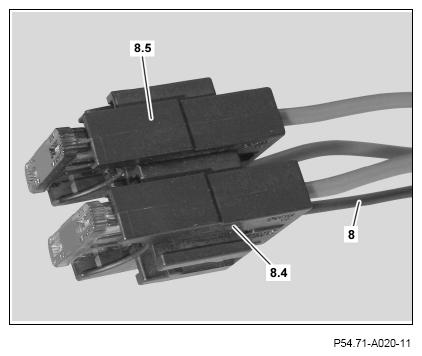

- Put both fuse holders (8.4, 8.5) of Dashcam wiring harness (8) together.

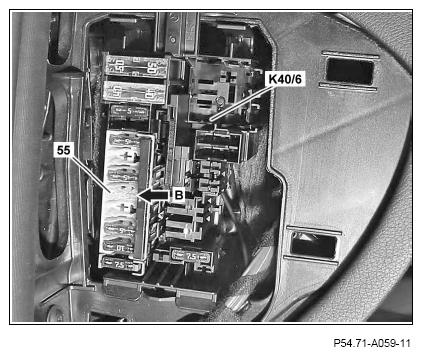

- Install electrical fuse (55) included in parts kit in slot 207 (arrow B) of driver's side fuse and relay module (K40/6).

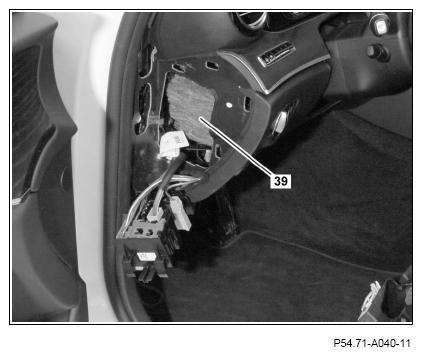

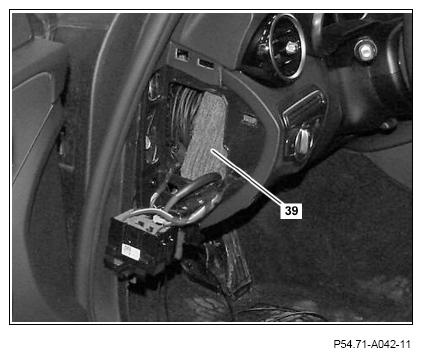

- Slide damping (39) to one side.
- Route line branch-off, which is no longer required, for rear Dashcam up to installation location of fuse and relay module on driver's side.
- Plug black plug (8.1) of Dashcam wiring harness (8) into a pocket (40) made of felt.
- Fasten pocket (40) to Dashcam wiring harness (8) with fabric tape (41).
- Strap line branch-off for rear Dashcam together and fix in place in installation space behind the driver's side fuse and relay module.
- Position damping (39).
- Strap down excess lengths of Dashcam wiring harness in area of A-pillar.
- Finally fasten Dashcam wiring harness on roof lining using felt tape.
