Retrofit Front Mercedes-Benz Dashcam - AZ54.71-P-0002LW

Model 205.0/1/2

except code E64 (ECALL RUSSIA (GLONASS))

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Release fuse and relay module on driver's side.
			AR54.15-P-0003LWX
2	Remove trim at bottom for instrument panel on driver's side.
			AR68.10-P-1500LW
3	Remove A-pillar trim on driver's side.
			AR68.30-P-4050LW
4	Remove top B-pillar trim on driver's side and place with attached seat belt to one side.
			AR68.30-P-4700LW
5	Remove front grab handle on driver's side.
			AR68.30-P-4330NKB
6	Remove covers over mounting eyes for front partitioning net on driver's side.	Model 205.2
		Long wedge	Fig 1
7	Remove overhead control panel control unit.
			AR82.20-P-1000LF
	Install
8	Retrofit front Dashcam mount.	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20 °C. All kinds of mechanical stress must be avoided during the first hour. Otherwise adhesion problems may occur.	AZ54.71-P-0001-00LWE
		Cleaner	*BR00.45-Z-1025-04A
	Remove
9	Remove cover of rain and light sensor.	Long wedge	Fig 1
10	Remove both sun visors.
			AR68.60-P-5480NKB
11	Remove front edge guard on driver's side in area of roof lining.
12	Release front roof lining on driver's side.
	Install
13	Retrofit Dashcam wiring harness.		AZ54.71-P-0002-01LW
	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A
		Left footwell ground point	*BA00.19-P-1028-01E
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2

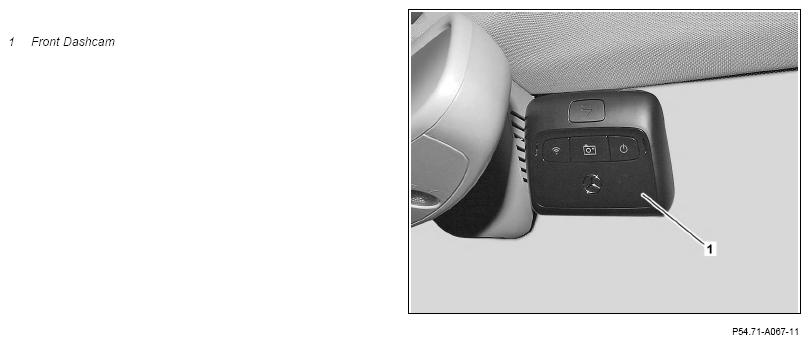

14	Engage front Dashcam (1) against arrow on Eject button in the Dashcam mount.	Assembly of the front Dashcam (1), at the earliest, one hour after bonding the Dashcam mount. Otherwise, the Dashcam mount may work its way loose.
15	Perform initial startup.		AZ54.71-P-0001-02LWE
	National settings for Mercedes-Benz dashcam		GF54.71-P-0010-02LWE
16	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
17	Attach note "Mercedes-Benz front Dashcam retrofitted as per " under field organization texts to DG 54, DG 67 and DG 68.		AZ54.71-P-0002LW
	Check
18	Perform function test.	See Owner's Manual.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
