Remove/Install Oil Pump From Transmission Housing - AR27.10-P-0400-02MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.1 in model 118, 177, 247

REFER TO CAPACITIES & SPECIFICATIONS Automatic transmission fluids (ATF) (specification 236.22)   BB00.40-P-0236-22A
Fig 1: Identifying Press-In Tool (724 589 00 35 00)
G14688591Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Extraction And Insertion Tool (724 589 01 43 00)
G14688592Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Puller (724 589 03 33 00)
G14688593Courtesy of MERCEDES-BENZ USA
G14688594Courtesy of MERCEDES-BENZ USA

Remove oil pump

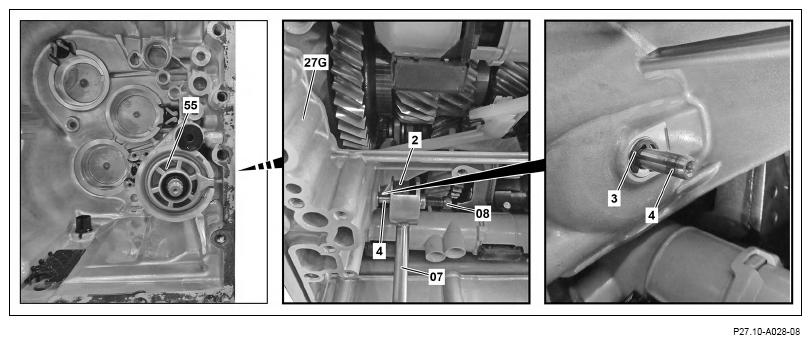

  1. Position SPECIAL TOOL puller (07) and apply to sensor rotor (2) by turning the screw (08).

    NOTES Do not remove retaining ring (3) at oil-pump drive shaft (4).

    The oil pump (55) may otherwise be damaged.

    NOTES Make sure that the SPECIAL TOOL puller (07) is correctly seated. Otherwise the oil pump (55) or sensor rotor (2) may be damaged.

  2. Detach sensor rotor (2) from oil-pump drive shaft (4) by turning the screw (08).
    G14688595Courtesy of MERCEDES-BENZ USA

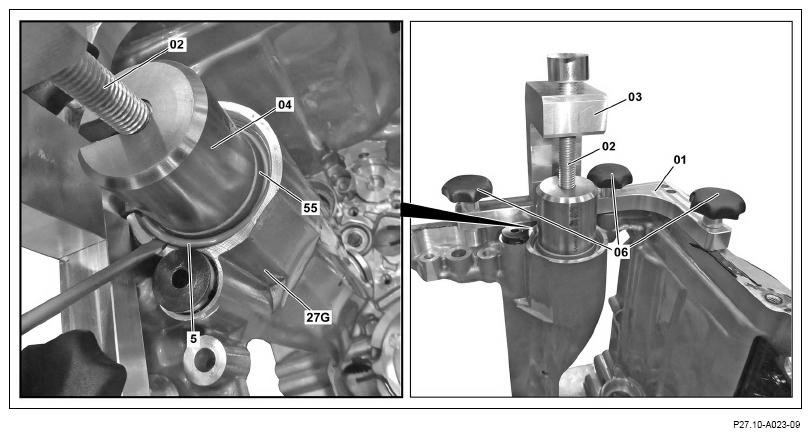

  3. Attach plate (01), spindle (02), bracket (03), knurled nuts (06) of SPECIAL TOOL extraction and insertion tool to transmission housing (27G) and fix in place.
  4. Insert thrust piece (04) from SPECIAL TOOL extraction and insertion tool at spindle (02) and attach to oil pump (55).
  5. Place thrust piece (04) at oil pump (55) by turning the spindle (02).

    NOTES Make sure that the thrust piece (04) is correctly seated.

    Otherwise the oil pump (55) may be damaged.

  6. Press oil pump (55) downwards by turning it at the spindle (02).

    IMPORTANT Turn far enough until the retaining ring (5) is relaxed and can be removed.

  7. Remove retaining ring (5) from transmission housing (27G) using a suitable tool.
  8. Turn spindle (02) back and remove thrust piece (04).

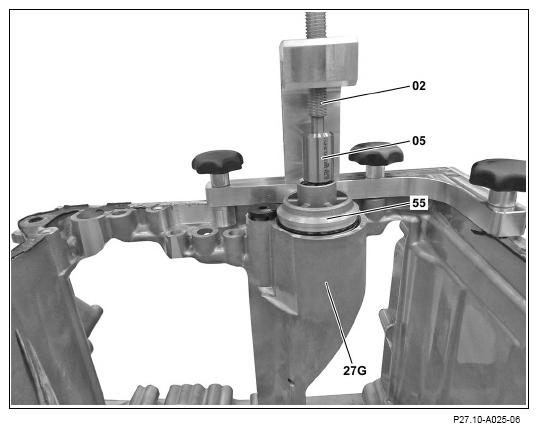

  9. Insert hitch-hook (05) from SPECIAL TOOL extraction and insertion tool at spindle (02) and attach to oil pump (55).
  10. Remove oil pump (55) from transmission housing (27G) by turning at spindle (02).
  11. Remove hitch-hook (05).
    G14688596Courtesy of MERCEDES-BENZ USA
    G14688597Courtesy of MERCEDES-BENZ USA

    Install oil pump

  12. Insert oil pump (55) in transmission housing (27G).

    IMPORTANT Apply oil to O-rings of oil pump (55).

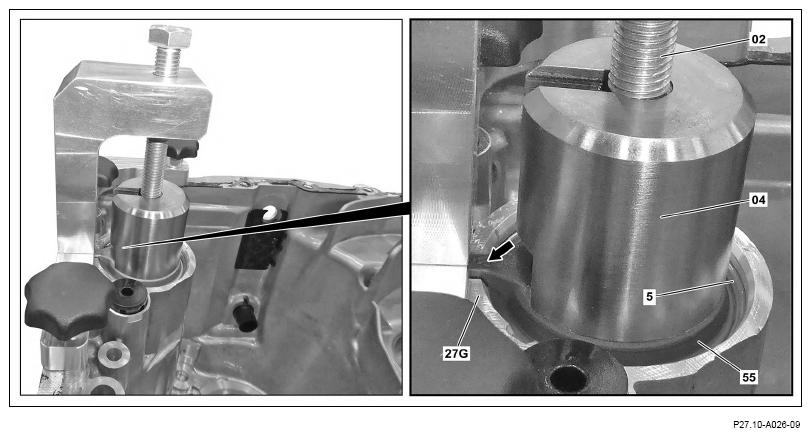

    The chamfer (arrow) on the oil pump (55) and the cutout on the transmission housing (27G) must point toward each other during assembly.

  13. Insert thrust piece (04) at spindle (02).
  14. Place thrust piece (04) at oil pump (55) by turning the spindle (02).

    NOTES Make sure that the thrust piece (04) is correctly seated.

    Otherwise the oil pump (55) may be damaged.

  15. Press oil pump (55) downwards by turning it at the spindle (02).

    IMPORTANT Turn far enough until the retaining ring (5) in transmission housing (27G) can be inserted.

  16. Install retaining ring (5).
  17. Turn spindle (02) back and remove thrust piece (04).
  18. SPECIAL TOOL Remove extraction and insertion tool from transmission housing (27G).
    G14688598Courtesy of MERCEDES-BENZ USA

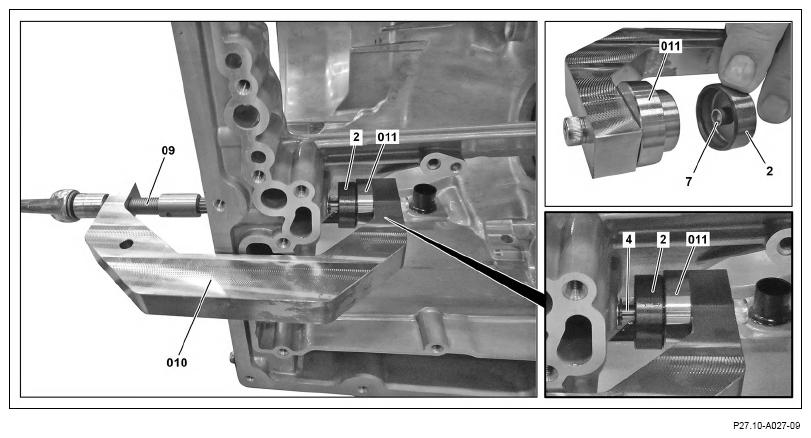

  19. Position spindle (09), bracket (010), sensor rotor support (011) of SPECIAL TOOL press-in tool and sensor rotor (2) as shown.
  20. Press sensor rotor (2) up to end stop on oil-pump drive shaft (4) by turning the spindle (09).

    IMPORTANT Ensure correct installation position of sensor rotor (2).

    The inner sleeve (7) of the sensor rotor (2) must point towards the sensor rotor support (011).

  21. SPECIAL TOOL Remove press-in tool.
