Remove/Install Dual Clutch - AR27.20-P-0070MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.0 in model 118, 177, 247

MODIFICATION NOTES

14.07.2018 Special tool inserted. Adapter (724 589 04 31 00) AR27.10-P-0600-01NKB
14.07.2018 Operation steps added. Operation step (5, 6) AR27.10-P-0600-01NKB

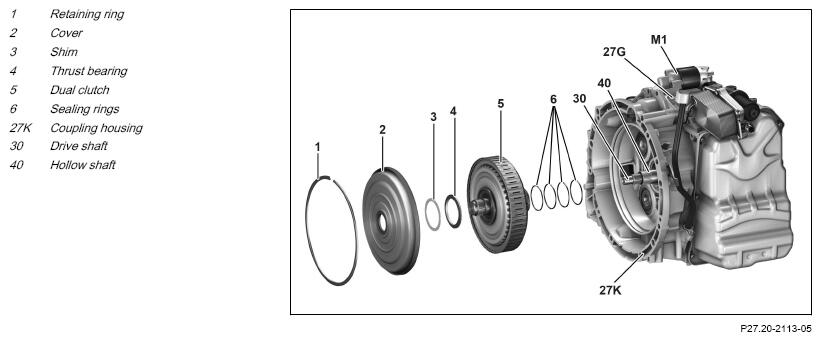

Fig 1: Dual Clutch Components Location - Transmission 724.0 In Model 118
G16063362Courtesy of MERCEDES-BENZ USA
G16063363Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.
AS00.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVING Remove
1 Remove transmission.   AR27.10-P-0009MFC
2 Install transmission at assembly stand.   AR27.10-P-0600-01NKB
REFER TO SPECIAL TOOLS 000 588 27 31 00 Assembly stand for cars   WS01.00-P-0262B
    SPECIAL TOOL Adapter Fig 5
    SPECIAL TOOL Assembly device Fig 4
    SPECIAL TOOL Assembly device Fig 6
3 Remove retaining ring (1). NOTES
Do not damage seat of retaining ring (1) and
sealing surface on clutch housing (27K).
Otherwise leaks may occur.
If slight damage is detected on the sealing
surface of the clutch housing (27K),

grind down sealing surface in area of retaining ring (1) on clutch housing (27K) using oily abrasive paper, then clean.

REFER TO CAPACITIES & SPECIFICATIONS   Automatic transmission fluid (ATF) (specification 236.21) BB00.40-P-0236-21A
    Assembly cleaner *BR00.45-Z-1028-04A
4 Pry off cap (2) using suitable tool.
5 Remove shim (3).
6 Remove axial bearing (4).
7 Check axial bearing (4) for damage. If damage is found,

replace axial bearing (4).

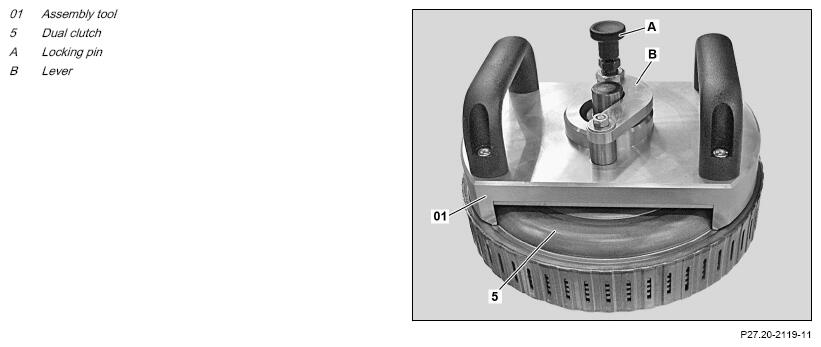

8 Pull locking pin (A) upwards. SPECIAL TOOL Assembly tool Fig 7
9 Open lever (B) all the way. SPECIAL TOOL Assembly tool Fig 7
10 Mount assembly tool (01) onto dual clutch (5). SPECIAL TOOL Assembly tool Fig 7
11 Lift up locking pin (A). SPECIAL TOOL Assembly tool Fig 7
12 Close lever (B) and latch locking pin (A) into assembly tool (01). SPECIAL TOOL Assembly tool Fig 7
13 Lift dual clutch (5) out of clutch housing (27K) using assembly tool (01). SPECIAL TOOL Assembly tool Fig 7
14 Remove sealing rings (6) from dual clutch (5).
INSTALLING Install
15 Replace sealing rings (6) of dual clutch (5) and install. IMPORTANT Check sealing rings (6) are correctly seated.
16 Insert dual clutch (5) carefully and without tilting it into the clutch housing (27K). SPECIAL TOOL Assembly tool Fig 7
17 Turn dual clutch (5) slightly until the toothing of the drive shaft (30) and the hollow shaft (40) engages correctly in the dual clutch (5). SPECIAL TOOL Assembly tool Fig 7
18 Remove assembly tool (01) from dual clutch (5). SPECIAL TOOL Assembly tool Fig 7
19 Install axial bearing (4).
20 Install shim (3).
INSPECT Check
21 Check the seat of the dual clutch (5) before making the adjustment.   AR27.20-P-0070-02NKB
    SPECIAL TOOL Parallel support Fig 8
MEASURING Measure
22 Measure installed dimension of dual clutch (5) and adjust.   AR27.20-P-0070-01NKB
    HAND-HELD TESTER Height distance from parallel gauges to thrust bearing *BE27.20-P-1001-02A
    SPECIAL TOOL Support Fig 3
    SPECIAL TOOL Parallel support Fig 8
23 Fit assembly sleeve onto drive shaft (30). SPECIAL TOOL Assembly sleeve Fig 2
24 Replace cap (2) and install.
25 Check retaining ring (1) for damage. If damage is found,

Install new retaining ring (1).

26 Install retaining ring (1). IMPORTANT Ensure the retaining ring (1) is seated correctly.
27 Remove transmission from assembly stand.   AR27.10-P-0600-01NKB
REFER TO SPECIAL TOOLS 000 588 27 31 00 Assembly stand for cars   WS01.00-P-0262B
    SPECIAL TOOL Adapter Fig 5
    SPECIAL TOOL Assembly device Fig 4
    SPECIAL TOOL Assembly device Fig 6
28 Install transmission.   AR27.10-P-0009MFC
INSPECT Check
29 Check transmission oil level, correct, if necessary.   AR27.00-P-0104MFC
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
30 Perform engine test run, while doing so check engine and transmission for proper operation and leak tightness.
CHECK VALUES FOR DUAL CLUTCH

Number Designation Transmission 724.0
BE27.20-P-1001-02A Height distance from parallel gauges to thrust bearing mm 14, 784...15, 724
Fig 2: Identifying Assembly Sleeve (724 589 00 14 00)
G16063364Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Support (724 589 01 31 00)
G16063365Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Assembly Device (724 589 02 40 00)
G16063366Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Adapter (724 589 04 31 00)
G16063367Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Assembly Device (724 589 00 40 00)
G16063368Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Assembly Tool (724 589 00 31 00)
G16063369Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Parallel Support (168 589 03 21 00)
G16063370Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
