Measure And Adjust Installed Dimension Of Dual Clutch - AR27.20-P-0070-01NKB

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.0 in model 117

Transmission 724.0 in model 118, 177, 247

Transmission 724.0 in model 156

Transmission 724.0 in model 176

Transmission 724.0 in model 242

Transmission 724.0 in model 246

Fig 1: Identifying Support (724 589 01 31 00)
G16063353Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Parallel Support (168 589 03 21 00)
G13657216Courtesy of MERCEDES-BENZ USA

IMPORTANT

The following special tools are required: 2x SPECIAL TOOL parallel gauge, SPECIAL TOOL mount.

IMPORTANT

When ordering the special tool SPECIAL TOOL parallel gauge please note that the scope of supply only includes one special tool.

IMPORTANT

A digital vernier caliper (02) is required to determine the shim size for the dual clutch (5).

Determine "dimension A"

  1. Install retaining ring (1).

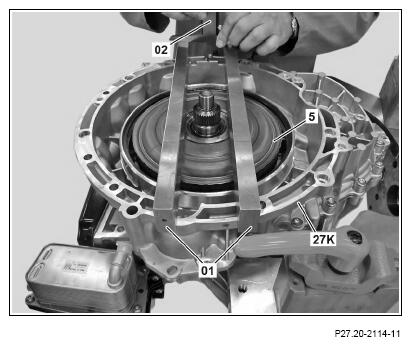

  2. SPECIAL TOOL Position parallel gauges (01) onto coupling housing (27K).
  3. Calibrate digital vernier caliper (02).

    IMPORTANT

    Position digital vernier caliper (02) on the SPECIAL TOOL parallel gauges (01) and measure down to coupling housing (27K) thereby making the zero adjustment.

    Make sure that the digital vernier caliper (02) is absolutely vertical to the contact surface on the coupling housing (27K).

    G15489074Courtesy of MERCEDES-BENZ USA

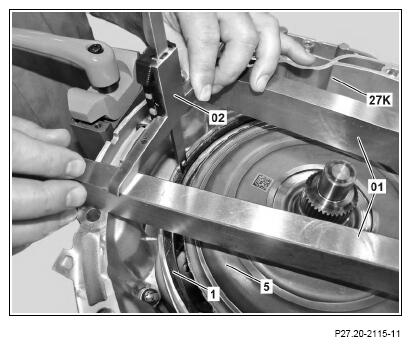

  4. Measure height between SPECIAL TOOL parallel gauges (01) and the retaining ring (1) of the coupling cover.

    IMPORTANT

    Perform measurement at three positions and calculate the mean value. Pull retaining ring (1) upwards during the measurement. Make sure that the digital vernier caliper (02) is absolutely vertical to the measurement surface on the retaining ring (1).

    G15489075Courtesy of MERCEDES-BENZ USA

    Determine "dimension B"

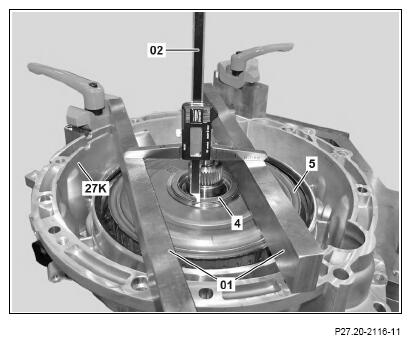

  5. Measure height between SPECIAL TOOL parallel gauges (01) and the thrust bearing (4) of the dual clutch (5).

    IMPORTANT

    Perform measurement at three positions and calculate the mean value. A shim must not be installed during the measurement. Make sure that the digital vernier caliper (02) is absolutely vertical to the measurement surface on the thrust bearing (4).

    G15489076Courtesy of MERCEDES-BENZ USA

    Determine "dimension C"

  6. Insert new coupling cover (2) into SPECIAL TOOL support (03).
  7. Calibrate digital vernier caliper (02).

    IMPORTANT

    Insert digital vernier caliper (02) into SPECIAL TOOL mount (03) and measure down to contact surface, thereby making the zero adjustment. Make sure that the digital vernier caliper (02) is absolutely vertical to the contact surface on the SPECIAL TOOL support (03).

    G15489077Courtesy of MERCEDES-BENZ USA
  8. Measure height difference between SPECIAL TOOL mount (03) and clutch cover (2).

    IMPORTANT

    Perform measurement at three positions and calculate the mean value. Make sure that the digital vernier caliper (02) is absolutely vertical to the measurement surface on the coupling cover (2).

    G15489078Courtesy of MERCEDES-BENZ USA
  9. Calculate shim size for adjusting the axial play of dual clutch (5):

    Shim size:

    Dimension B

    + Dimension C

    - Dimension A

    - Fixed dimension of retaining ring (3 mm)

    = Shim size "S" + oversize tolerance

    Example calculation:

    Shim size:

    14.80 mm (dimension B)

    + 20.06 mm (dimension C)

    - 30.65 mm (dimension A)

    - 3 mm (Fixed dimension of retaining ring)

    = 1.21 mm + oversize tolerance (0 to 0.2 mm)

    IMPORTANT

    An oversize tolerance of 0 to 0.2 mm must then be added to the calculated value. In the example calculation here a new shim with a thickness of 1.4 mm would be installed. The shims are available in a thickness of 0.8 to 2.6 mm in increments of 0.2 mm.

  10. Insertion of determined shims into thrust bearing.
  11. Remove retaining ring (1).

    IMPORTANT

    When removing the retaining ring (1) make sure that the seat of the retaining ring (1) and the sealing surface on the coupling housing (27K) are not damaged.
