Remove/Install Rear Multi-Link Axle Front And Rear Elastomer Bearing - AR35.10-P-0038MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
with code U55 (Multi-link axle)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Evaluation of elastomer bearings | AH00.10-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove rear axle. | AR35.10-P-0010MFA | |

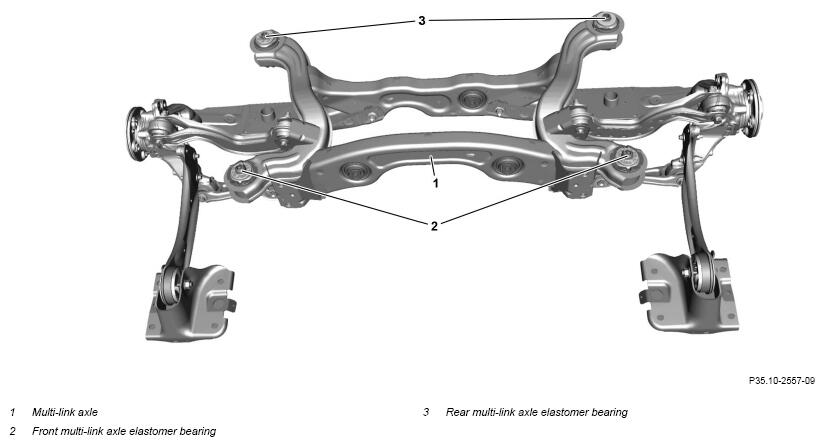

| 2 | Remove front multi-link axle elastomer bearings (2). | AR35.10-P-0038-01MFA | |
| Extraction and insertion tool | Fig 3 | ||
| Fig 4 | |||
| Fig 2 | |||
| Fig 5 | |||
| Fig 1 | |||
| 3 | Remove rear multi-link axle elastomer bearings (3). | AR35.10-P-0038-02MFA | |
| Fig 3 | |||
| Fig 4 | |||
| Fig 2 | |||
| Fig 5 | |||
| Fig 1 | |||
| 4 | Install in the reverse order. |
