Remove/Install Rear Door Frame Seal - AR72.12-P-0002MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118

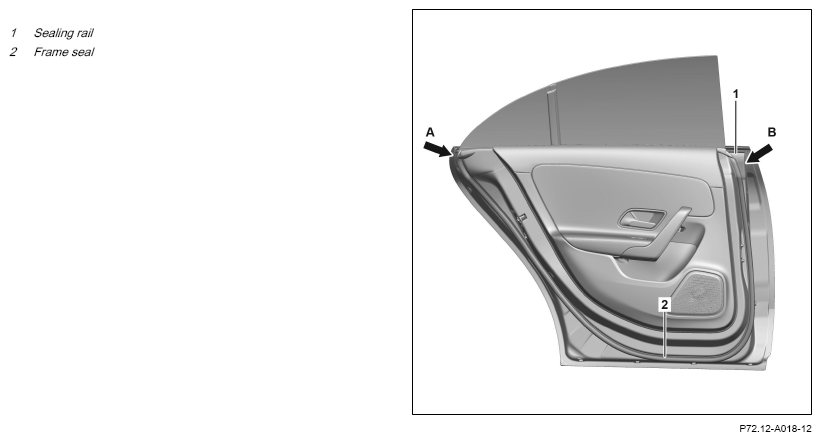

Shown on model 118.3 at left rear door
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks | AH00.00-P-0013-01AK | |
| Remove/install | |||
| 1 | Open corresponding door. | ||
| 2 | Remove sealing rail (1) at outer areas (arrow A, B) of sealing frame (2). | Ensure sealing rail (1) is correctly seated. Otherwise leaks may occur. |
|
| 3 | Remove sealing frame (2). | Fig 1 | |
| 4 | Remove adhesive residues on inner door panel using a surface conditioning disk and clean bonding surface. | Bonding surfaces must be free from dust, oil, grease, wax, dirt residues and other adhesive components. Otherwise there may be adhesion problems. Surface conditioning disk Ø 100 mm with attachment shaft 3M Deutschland GmbH D-41453 Neuss Cleaner |
*BR00.45-Z-1025-04A |
| 5 | Install in the reverse order. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
