Remove/Install Door Module - AR72.10-P-0900MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6, 177, 243, 247
Shown on mode 177.0
Shown on model 177.0 on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove side window from the front door. | Model 177, 243, 247 | AR67.30-P-0008MFA |
| Model 118.3/6 | AR67.30-P-0008MFC | ||
| 2 | Disconnect ground line from battery. | AR54.10-P-0003MFA | |

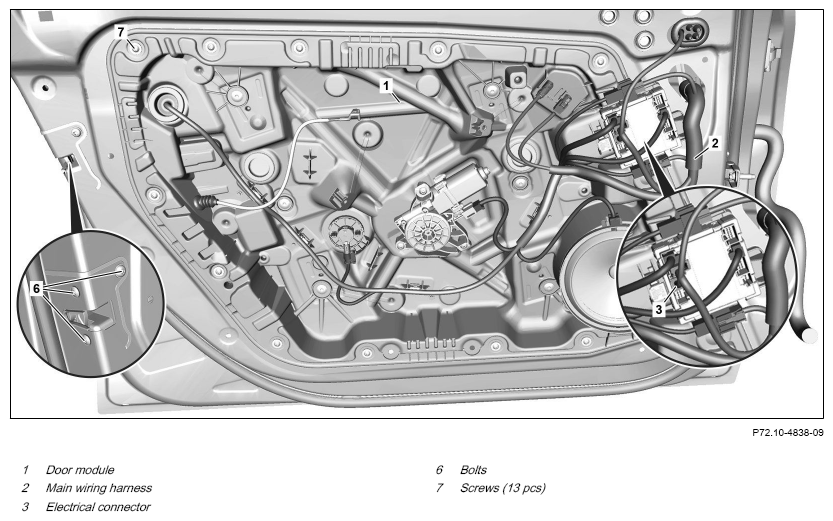

| 3 | Release and disconnect all electrical connectors coming out of the main wiring harness (2). | ||
| 4 | Expose main wiring harness (2) of the door module (1). | ||
| 5 | Release and disconnect electrical connector (3) of the outside mirror from the control unit. | ||
| 6 | Remove outside door handle from front door. | AR72.10-P-2400MFA | |

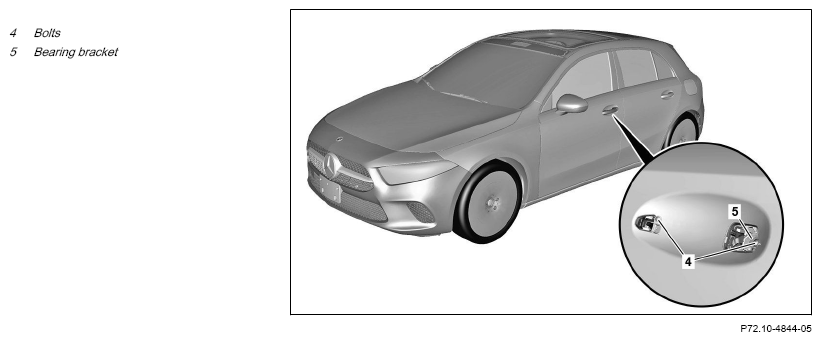

| 7 | Loosen bolts (4). | ||
| 8 | Push bearing bracket (5) toward the front and unhook from door paneling. | ||
| 9 | Remove screws (6) from the door lock. | *BA72.10-P-1007-01ZA | |
| 10.1 | Remove screws (7) from the door module (1). | When fastening door module (1) with screws (7). If screws (7) turn freely, screws with a larger diameter are available from EPC for fastening the door module (1). Repair stage 2: If larger screws turn freely, rivets are available from EPC for fastening the door module (1). |
|
| 10.2 | Drill out rivet heads of rivets on the door module (1). | When fastening the door module (1) using rivets. |
|
| 11 | Remove door module (1) from front door. | ||
| 12 | Remove door module (1) together with the locking system from the front door. | ||
| 13 | Drill out rivet residues, press out the remaining rivet residues on the inner door panel, and completely remove the rivet residues and shavings from the front door. | When fastening the door module (1) using rivets. |
Fig 1 |
| 14 | Install in the reverse order. |
FRONT DOOR
| Number | Designation | Model 118 | Model 177, 247 | |
|---|---|---|---|---|
| BA72.10-P-1007-01ZA | Screw/bolt, door lock to front door | Nm | 6 | 6 |
FRONT DOOR
| Number | Designation | Model 243 | |
|---|---|---|---|
| BA72.10-P-1007-01ZA | Screw/bolt, door lock to front door | Nm | 6 |
