Determine Crankshaft Bearing Axial Play - AR03.20-P-4291-03MR

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 133, 139, 260, 270, 274, 282

TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE

Number	Designation			Engine 133	Engine 139
BE03.20-P-1001-04H	Crankshaft bearing clearance	Radial measurement when new	mm	0, 019...0, 043	0, 019...0, 043
BE03.20-P-1001-04H	Crankshaft bearing clearance	Axial measurement when new	mm	0, 120...0, 300	0, 120...0, 300

TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE

Number	Designation			Engine 260	Engine 270
BE03.20-P-1001-04H	Crankshaft bearing clearance	Radial measurement when new	mm	0, 019...0, 043	0, 019...0, 043
BE03.20-P-1001-04H	Crankshaft bearing clearance	Axial measurement when new	mm	0, 120...0, 300	0, 120...0, 300

TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE

Number	Designation			Engine 274
BE03.20-P-1001-04H	Crankshaft bearing clearance	Radial measurement when new	mm	0, 019...0, 043
BE03.20-P-1001-04H	Crankshaft bearing clearance	Axial measurement when new	mm	0, 120...0, 300

TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE

Number	Designation			Engine 282
BE03.20-P-1001-04K	Crankshaft bearing clearance	Radial measurement when new	mm	0, 032...0, 051
BE03.20-P-1001-04K	Crankshaft bearing clearance	Axial measurement when new	mm	0, 098...0, 300

Fig 1: Identifying Assembly Stand (000 588 00 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dial Indicator Holder (363 589 02 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Mount Dial Indicator (001 589 93 21 00)

Courtesy of MERCEDES-BENZ USA

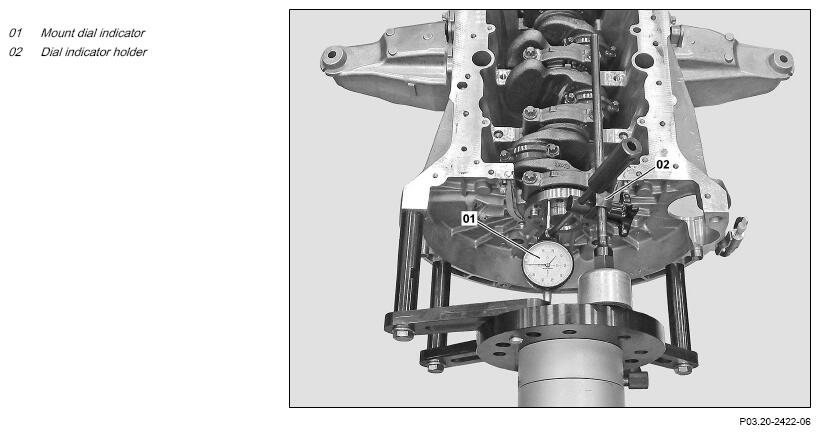

Shown on engine 274 on assembly stand

Courtesy of MERCEDES-BENZ USA

Attach dial indicator holder (02) to assembly stand.
Insert dial indicator (01) in dial indicator holder (02) and set a preload of at least 3 mm.
The measuring tip of the dial indicator (01) must be aligned in a right angle to the crankshaft flange.
Press on crankshaft in an axial direction to one side up to the attachment and hold.
Set dial indicator scale to zero.
Press on crankshaft in an opposite axial direction to one side up to the attachment and hold.
- 6.1 Engine 133, 139, 260, 270, 274
  Read off measurement value on dial indicator (01) and compare with specified value .

  The read off measurement value corresponds to the crankshaft end play.
- 6.2 Engine 282
  Read off measurement value on dial indicator (01) and compare with specified value .

  The read off measurement value corresponds to the crankshaft end play.
