Remove/Install Valves - AR05.30-P-3511MFG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
Example illustration
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| General information on checking valves, valve seats and valve guides | AH05.30-P-1000-02SZ | ||
| Remove/install | |||
| 1 | Remove valve springs. | AR05.30-P-3021MFG | |

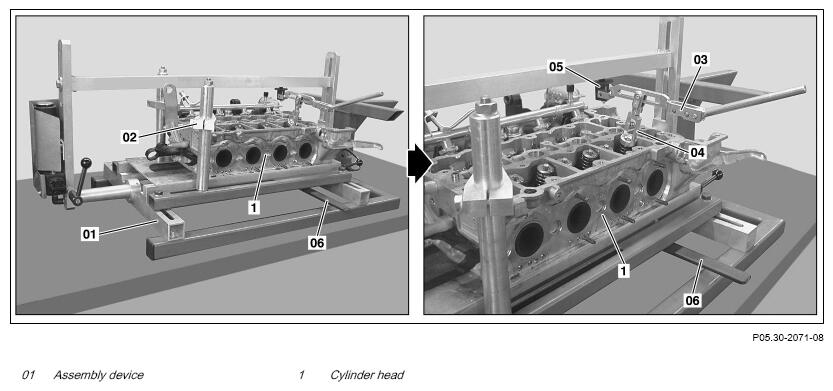

| 2 | Close compressed air valve of the assembly device (01) and disconnect compressed-air hose from assembly device (01). | Fig 1 | |

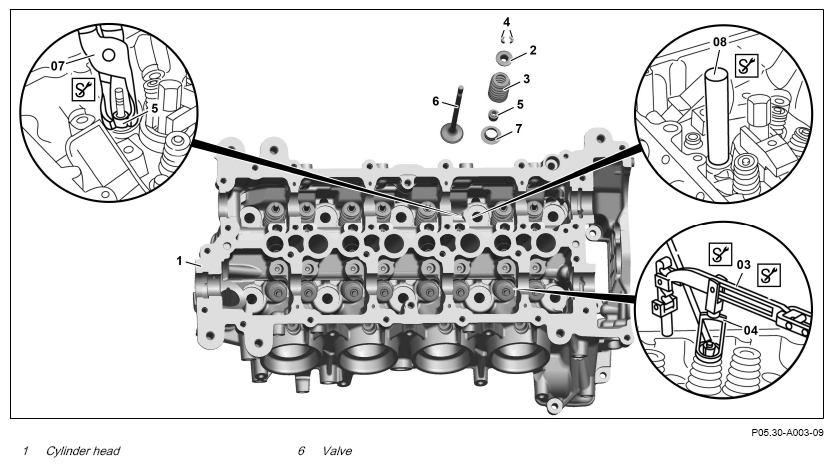

| 3 | Remove cylinder head (1) from assembly device (01) and remove valves (6). | Fig 1 | |
| Check | |||
| 4 | Check valve stems for formation of burrs and pitting. | If ridging is present, ↓ Deburr valve stems. If pitting is present, ↓ Replace valves (6). |
|
| 5 | Check the valve seats for pitting and cracks. | If pitting or cracks are present, ↓ Replace cylinder head (1). |
AR01.30-P-5800MFG |
| 6 | Install in the reverse order. |
