Remove/Install Valves - AR05.30-P-3511MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247
Example illustration
Example illustration
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove valve springs (3). | AR05.30-P-3021MFC | |

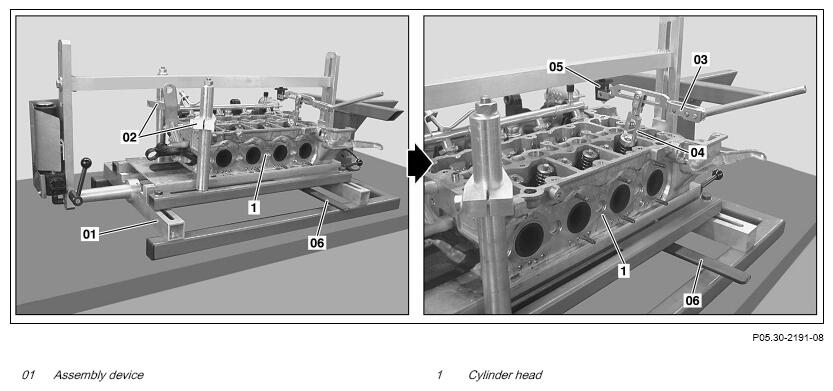

| 2 | Close compressed air valve of the assembly device (01) and disconnect compressed-air hose from assembly device (01). | Fig 1 | |

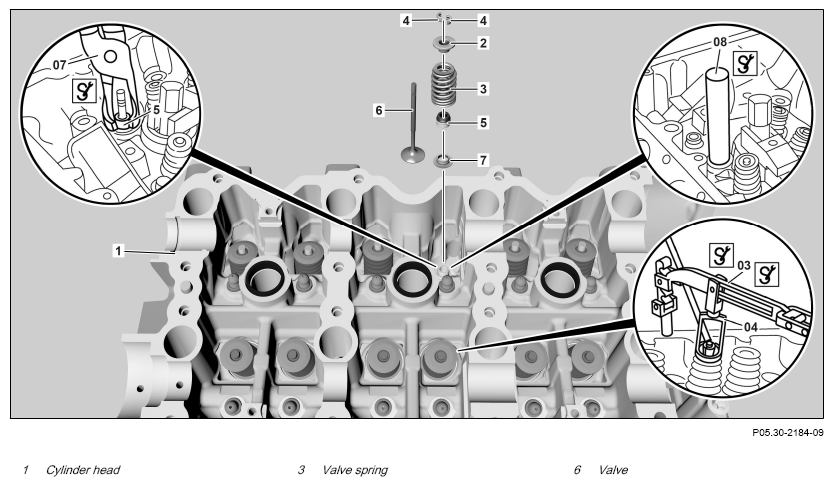

| 3 | Remove cylinder head (1) from assembly device (01) and remove valves (6). | Fig 1 | |
| General information on checking valves, valve seats and valve guides | AH05.30-P-1000-02SZ | ||
| 4 | Check surface of valve stems for roughness and ridging (visual inspection or with nail). | If there are problems, ↓ replace corresponding valves (6). |
|
| 5 | Install in the reverse order. |
