Check Basic Position Of Camshafts - AR05.20-P-6010MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118, 177, 247

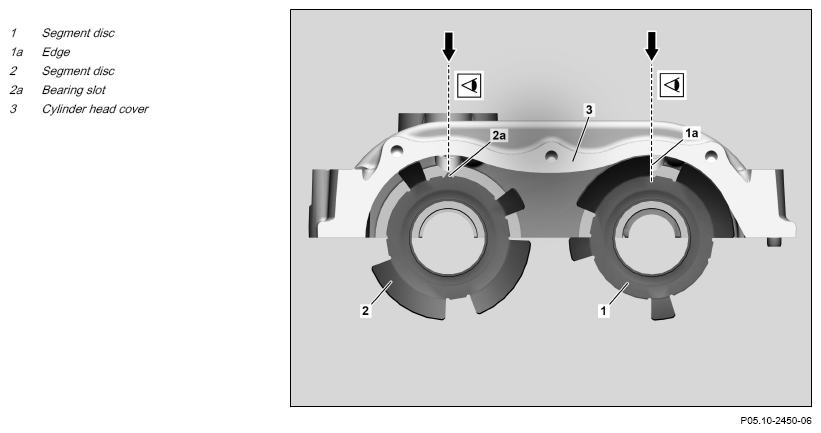

Example illustration

Courtesy of MERCEDES-BENZ USA

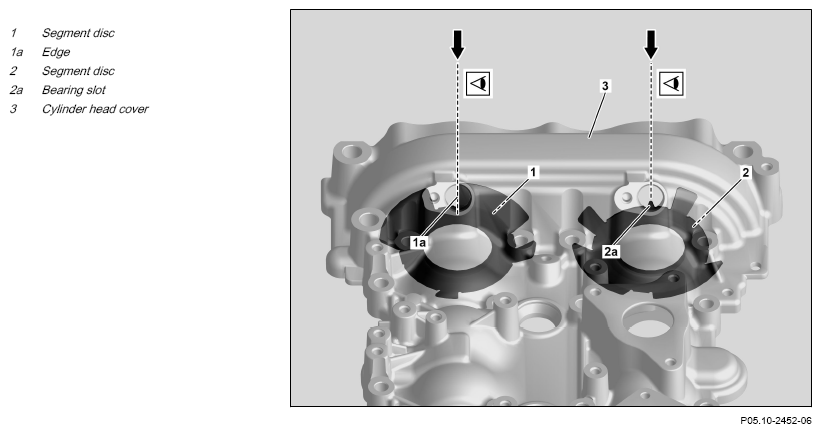

Example illustration

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove Hall sensor of the intake camshaft.		AR07.04-P-0056MFC
2	Remove Hall sensor of the exhaust camshaft.		AR07.04-P-0057MFC
3	Remove front right fender liner.		AR88.10-P-1301MFA
4	Turn engine at the center bolt of the crankshaft in the direction of engine rotation to top dead center (ignition TDC) on cylinder 1.	The TDC marking on belt pulley/vibration damper must be aligned with positioning edge on timing case cover. Socket wrench bit	Fig 1
	Check
5	Check basic position of camshafts.	The basic position of the camshafts is checked by a visual inspection over the Hall sensor openings on cylinder head cover (3). To check the exhaust camshaft adjustment, the edge (1a) of the partial segment of the segment disk (1) must be visible in the center of the Hall sensor opening. To check the intake camshaft adjustment the bearing slot (2a) of the segment disc (2) must stand in the middle in the Hall sensor opening (picture). If the basic setting is not correct, ↓ Set basic position of camshafts.	AR05.20-P-6020MFC
6	Install in the reverse order.

Fig 1: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
