Assembly And Covering Work When Painting The Liftgate - Ar98.00-P-2011MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6
Model 177.0/1/9
Model 247.0
MODIFICATION NOTES
| 12.08.2019 | Document completely revised. |

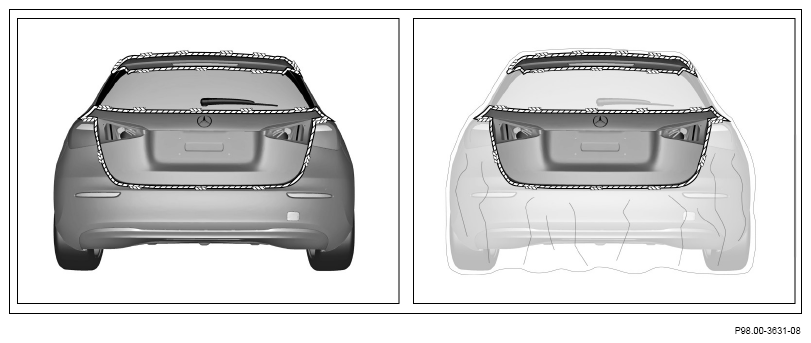

Liftgate in paint stage 2/3 in installed condition, shown on model 177.0

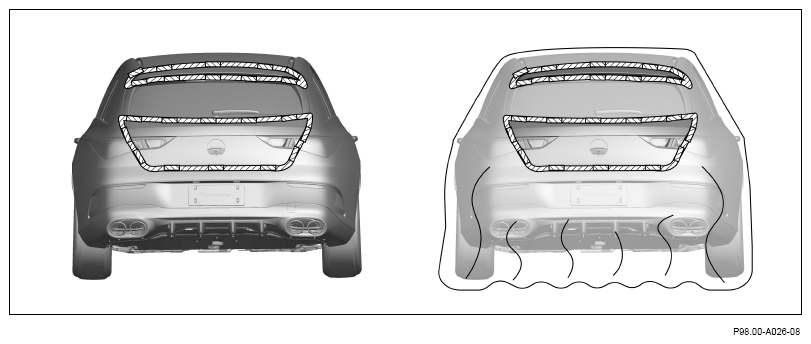

Liftgate in paint stage 2/3 in installed condition, shown on model 177.1

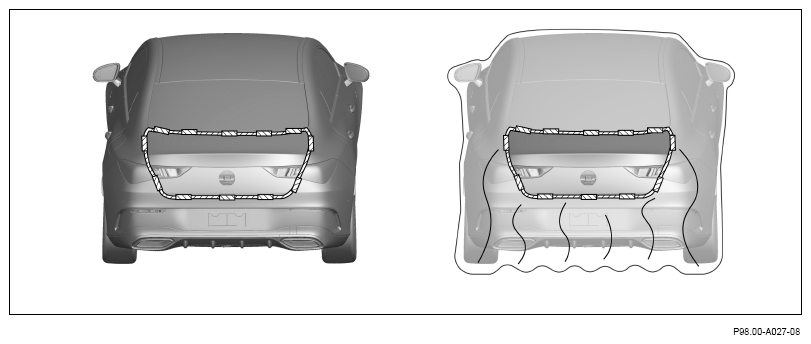

Liftgate in paint stage 2/3 in installed condition, shown on model 247.0

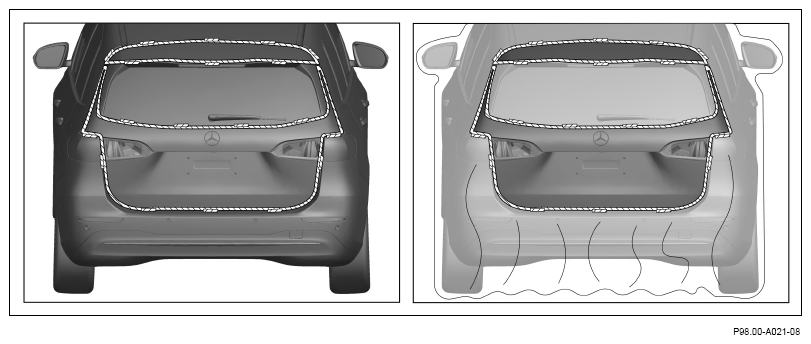

Liftgate in paint stage 2/3 in installed condition, shown on model 118.3

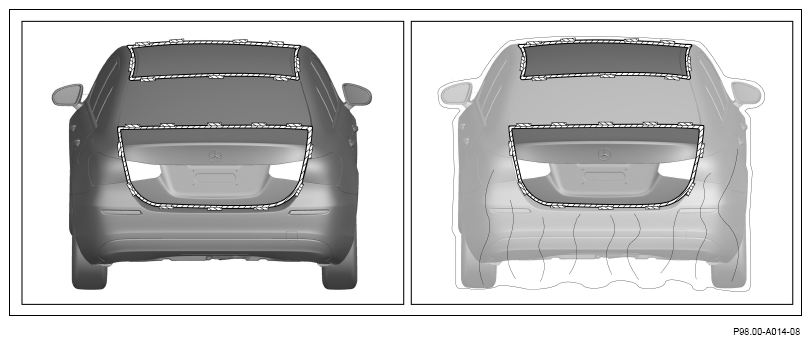

Liftgate in paint stage 2/3 in installed condition, shown on model 118.6
| Topical note | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on masking for paintwork | AH98.00-P-0200-01BK | ||
| Masking off and covering | |||
| 1 | Remove additional brake lamp. | Model 118.6, 177.0, 247.0 | AR82.10-P-5376MFA |
| 2 | Remove license plate lamps. | Model 177.1/9 | AR82.10-P-5161MFV |
| 3.1 | Remove trunk lid lock actuation. | Model 118.3/6 | AR88.50-P-5090MFE |
| 3.2 | Remove Mercedes star and retaining grommets. | Model 177.0/1/9 Model 247.0 |
Fig 1 |
| 4 | Remove rear left inner lamp unit (E3/1) and rear right inner lamp unit (E4/1) from liftgate. | Model 118.6Model 177.0 Model 247.0 |
AR82.10-P-4926MFA |
| Model 118.3Model 177.1/9 | AR82.10-P-4927MFV | ||
| 5 | Remove model badges from liftgate. | If installed. |
|
| 6 | Mask off all openings at liftgate using masking tape. | Under category "Guidelines for paint technology". |
|
| 7 | Mask off liftgate all the way round. | Under category "Guidelines for paint technology". |
|
| 8 | Cover areas of vehicle that are not to be painted using film. | Under category "Guidelines for paint technology". |
