Remove/Install Trunk Lid Lock Actuator - AR88.50-P-5090MFE
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Shown without code 501 (360° camera)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

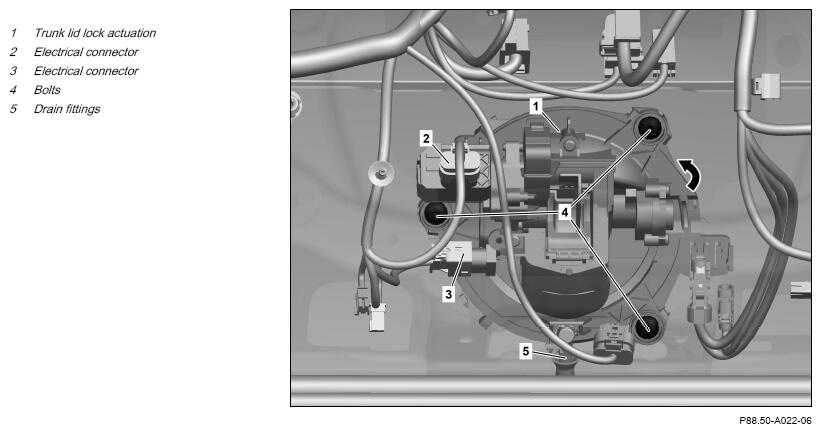

| 1 | Open trunk lid and secure against unintentional locking. | ||
| 2 | Remove trunk lid trim. | Model 118.3 | AR68.30-P-8151MFV |
| Model 118.6 | AR72.20-P-6618MFA | ||
| 3 | Release and disconnect electrical connector (2). | ||
| 4 | Release and disconnect electrical connection (3). | ||
| 5 | Remove screws/bolts (4). | ||
| 6 | Detach hose from the drainage fitting (5) of the trunk lid lock actuation (1). | ||
| 7 | Turn trunk lid lock actuation (1) in the direction of the arrow and remove. | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check function of the trunk lid lock actuation (1). |
