Assembly And Covering Work When Painting The Front Fender - Ar98.00-P-0205MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Model 177
Model 247

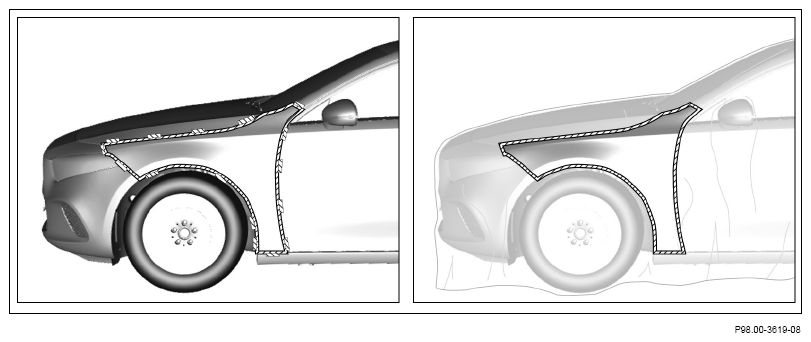

Shown on left fender model 177.0 in paint stage 2/3 in installed condition
| Notice | Cleaning plastic cover plates of lamps | AH82.10-P-1002-01A | |
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| General information on masking for paintwork | AH98.00-P-0200-01BK | ||
| Masking, taping | |||
| 1.1 | Loosen front bumper. | Paint stage 3 if the damaged area is not in the vicinity of front bumper or paint stage 2. | AR88.20-P-2000MFA |
| 1.2 | Remove front bumper. | Paint stage 3, if the damaged area is in the vicinity of the front bumper. | AR88.20-P-2000MFA |
| 2.1 | Loosen longitudinal member panel. | Paint stage 3, if the damaged area is not in the area of the longitudinal member panel or paint stage 2. | AR88.80-P-6000MFA |
| 2.2 | Remove longitudinal member panel. | Paint stage 3, if the damaged area is in the vicinity of the longitudinal member panel. | AR88.80-P-6000MFA |
| 3 | Remove front lamp unit. | Paint stage 3, if the damaged area is in the area of the front lamp unit. | AR82.10-P-4733MFA |
| 4 | Loosen drip rail in area of A-pillar. | AR88.80-P-4000MFA | |
| 5 | Mask off fender all the way round. | ||
| 6 | Cover areas of vehicle that are not to be painted using film. |
