Remove/Install Radial Shaft Sealing Ring On Output Flange Of Power Take-Off - AR27.45-P-0021MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.0 in model 118, 177, 247
with code M005 (Vehicles with 4MATIC/all-wheel drive)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||
| 1 | Remove power take-off. | AR27.45-P-0010MFC | |

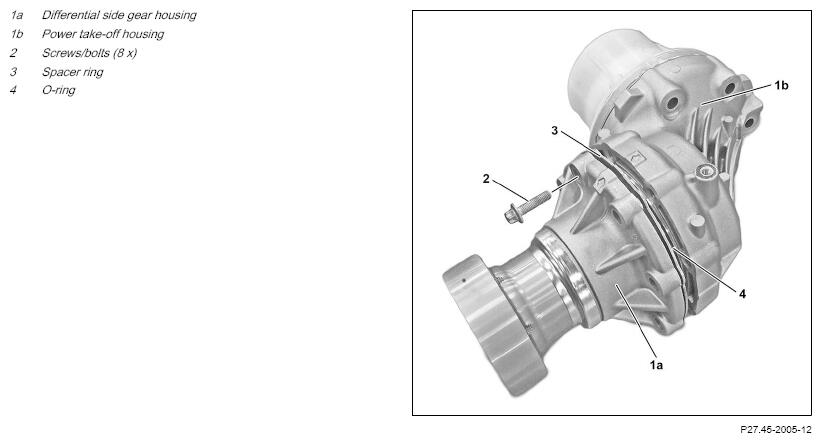

| 2 | Clean power take-off in area around connecting point of differential side gear housing (1a) and power take-off housing (1b). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 3 | Remove bolts (2). | ||
| 4 | Detach differential side gear housing (1a) from power take-off housing (1b) then remove spacer ring (3). | ||

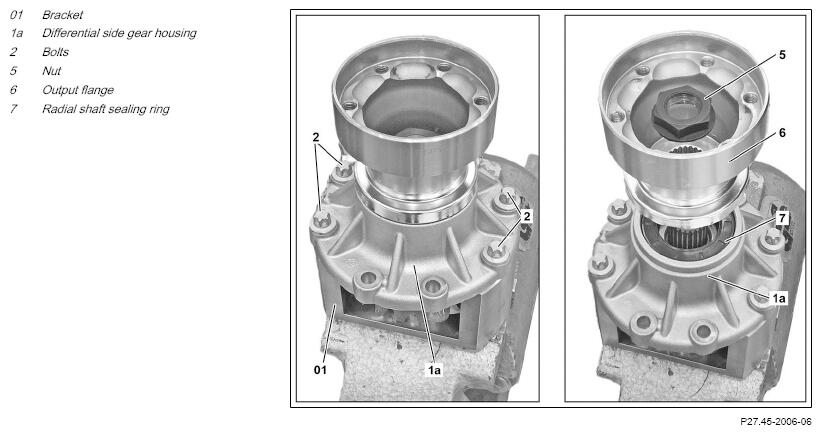

| 5 | Clamp holder (01) into vise. | Fig 2 | |
| 6 | Place differential side gear housing (1a) into holder (01) and tighten 4 bolts (2) lightly by hand. | ||
| 7 | Unscrew nut (5) and remove output flange (6). | Fig 2 | |
| Fig 3 | |||
| 8 | Pry radial shaft sealing ring (7), using suitable tool, out of differential side gear housing (1a). | Carefully remove radial shaft sealing ring (7) and do not damage seat in differential side gear housing (1a). Otherwise leaks may occur. |
|
| 9 | Clean seat of radial shaft sealing ring (7) in differential side gear housing (1a). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 10 | Check seat of radial shaft sealing ring (7) for damage. | If damage is found, ↓ replace differential side gear housing (1a). |
|
| Install | |||
| 11 | Moisten sealing lip of radial shaft sealing ring (7) with universal hypoid gear oil. | ||
| Universal hypoid gear oils (specification 235.7) | BB00.40-P-0235-07A | ||
| 12 | Use drift to press in radial shaft sealing ring (7) far enough, so that the drift makes contact with the differential side gear housing (1a). | Fig 1 | |
| 13 | Position output flange (6) on differential side gear housing (1a). | ||
| 14 | Position nut (5) and tighten it. | *BA27.10-P-1019-04F | |
| Fig 2 | |||
| Fig 3 | |||
| 15 | Unscrew 4 bolts (2) from holder (01) and remove differential side gear housing (1a) from holder (01). | Fig 2 | |
| 16 | Remove holder (01) from vise. | Fig 2 | |
| 17 | Coat O-ring (4) lightly with universal hypoid gear oil. | ||
| Universal hypoid gear oils (specification 235.7) | BB00.40-P-0235-07A | ||
| 18 | Position spacer ring (3) and attach differential side gear housing (1a) to power take-off housing (1b). | ||
| 19 | Tighten screws (2). | *BA27.10-P-1020-04F | |
| 20 | Install power take-off. | AR27.45-P-0010MFC |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 724.0 | |
|---|---|---|---|
| BA27.10-P-1019-04F | Nut, output flange to power take-off | Nm | 265 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 724.0 | ||
|---|---|---|---|---|
| BA27.10-P-1020-04F | Screw/bolt, differential side gear housing to power take-off | M8 | Nm | 34 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
