Disassemble/Assemble Clutch Housing - AR27.40-P-0520MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.1 in model 118, 177, 247

MODIFICATION NOTES

10.01.2020

Document completely revised.

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB

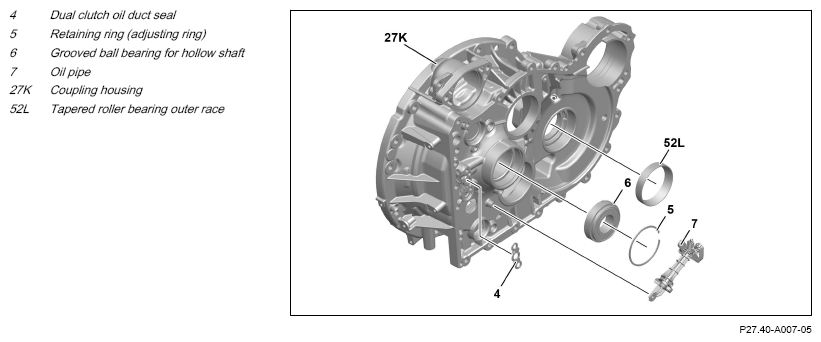

	Disassemble
1	Disassemble transmission and remove clutch housing (27K).		AR27.10-P-0510MFA
2	Remove radial shaft sealing rings from axle shafts.		AR27.40-P-0211MFA
3	Remove tapered roller bearing outer race (52L) of differential.		AR27.40-P-0520-01MFA
		Assembly cleaner	*BR00.45-Z-1028-04A
		Internal extractor	Fig 1
		Countersupport	Fig 3
4	Remove dual clutch oil duct seal (4).
5	Use suitable tool to remove retaining ring (adjusting ring) (5) from coupling housing (27K).
6	Press deep-groove ball bearing hollow shaft (6) out of coupling housing (27K).	Replace hollow shaft deep-groove ball bearing (6) after every removal Drift	Fig 2
7	Remove oil pipe (7) from coupling housing (27K).
	Check
8	Check dual clutch oil duct seal (4) and oil pipe (7) for damage.	If dual clutch oil duct seal (4) or oil pipe (7) is damaged ↓ Replace dual clutch oil duct seal (4) or oil pipe (7).
	Assemble
9	Moisten all parts with transmission oil before installation.
	Automatic transmission fluids (ATF) (specification 236.22)		BB00.40-P-0236-22A
	Measure
10	Measure and adjust end play of hollow shaft deep-groove ball bearing (6).	Commercially available devices/tools Digital vernier caliper	AR27.50-P-0650-03MFA
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Parallel support	Fig 6
11	Press hollow shaft deep-groove ball bearing (6) into coupling housing (27K).	Replace hollow shaft deep-groove ball bearing (6) after every removal Drift	Fig 5
12	Use suitable tool to install determined retaining ring (5) into coupling housing (27K).	Replace retaining ring (5) after each removal.
13	Attach oil pipe (7) to coupling housing (27K).	Screw, oil pipe to coupling housing	*BA27.10-P-1012-06C
14	Install dual clutch oil duct seal (4).
15	Install tapered roller bearing outer race (52L) of differential.	Replace tapered roller bearing outer race (52L) after each removal.	AR27.40-P-0520-02MFA
		Insertion tool	Fig 4
16	Install radial shaft sealing ring of axle shafts.		AR27.40-P-0211MFA
17	Assemble transmission and install coupling housing (27K).		AR27.10-P-0510MFA

AUTOMATIC TRANSMISSION COMPLETE

Number	Designation		Transmission 724.1
BA27.10-P-1012-06C	Screw, oil pipe to coupling housing	Nm	8

Fig 1: Identifying Internal Extractor (000 589 68 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Drift (711 589 08 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Countersupport (000 589 35 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Insertion Tool (724 589 01 35 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Drift (203 589 03 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Parallel Support (168 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
BR00.45-Z-1038-04A	Loctite 7200	A 010 989 90 71
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
