Remove/Install Turbocharger With Exhaust Manifold - AR09.40-P-6036MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118 up to model year 2022

Engine 260 in model 177, 247 up to model year 2021

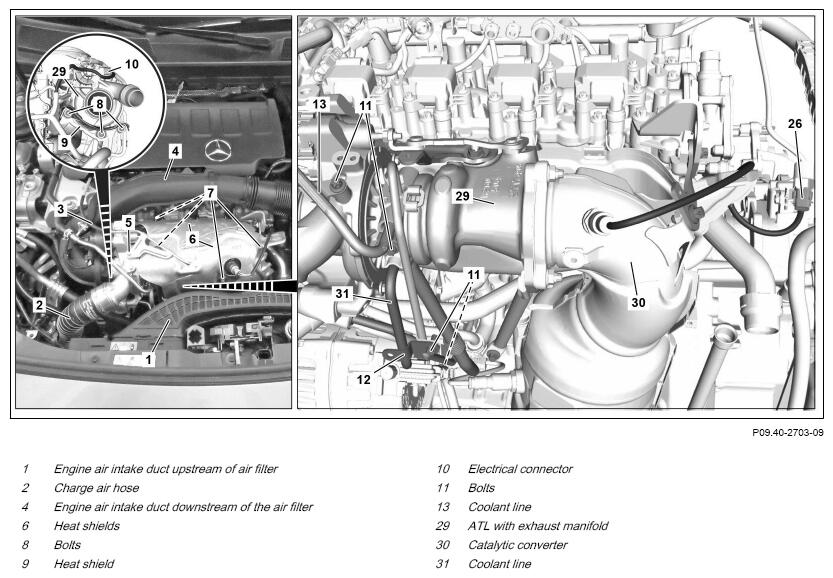

Fig 1: Turbocharger With Exhaust Manifold Components Location - Engine 260 In Model 118 Up To Model Year 2022 (Shown On Model 177 Except Code M016)
G16048373Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine except code M016 (Performance-enhanced engine)

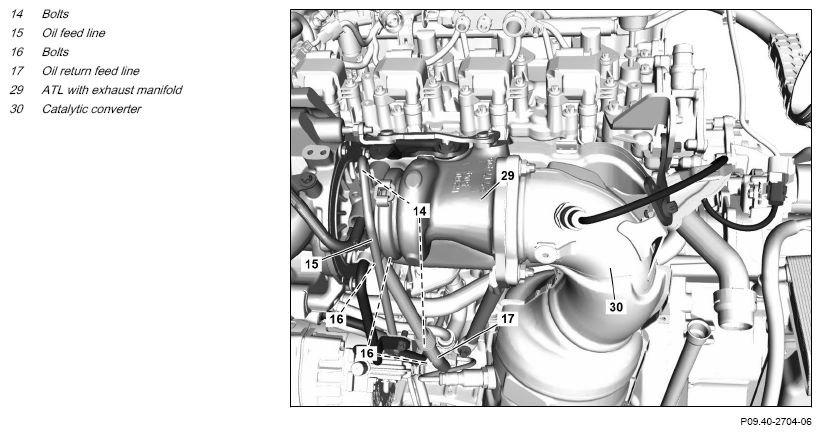

G16048374Courtesy of MERCEDES-BENZ USA

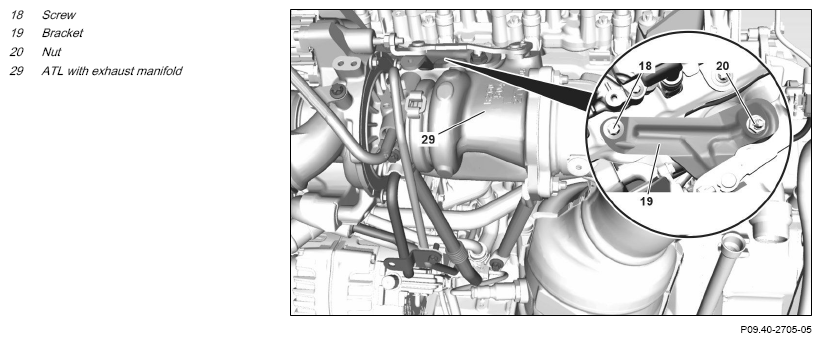

G16048375Courtesy of MERCEDES-BENZ USA

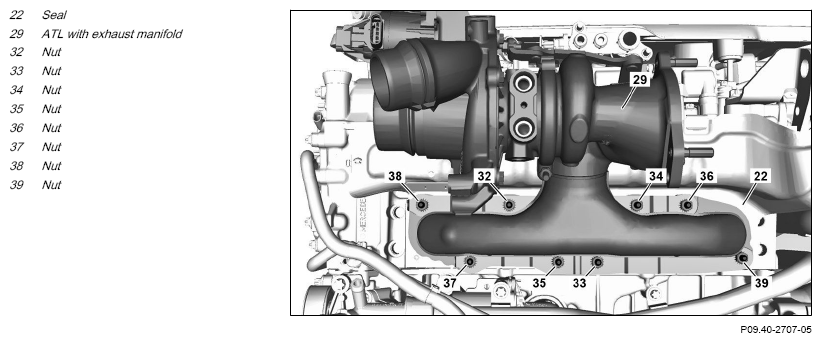

G16048376Courtesy of MERCEDES-BENZ USA

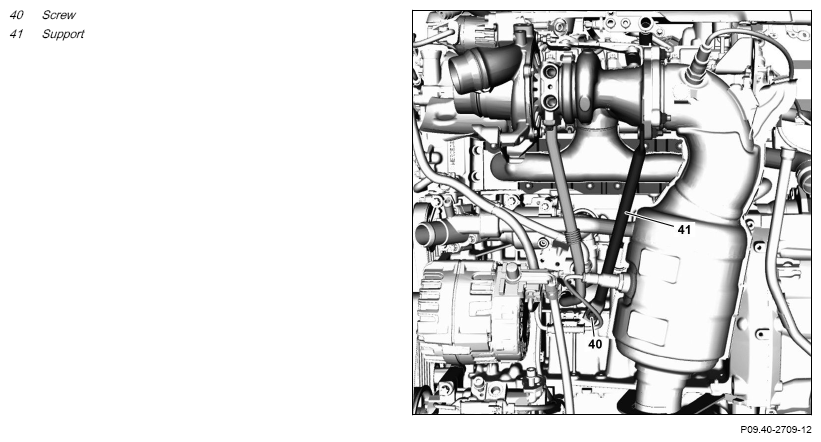

G16048377Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of burn  injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/install
1 Drain off coolant. INSTALLATION IMPORTANT : Only install lower engine compartment paneling after leak test. AR20.00-P-1142MFC
2 Remove engine air intake duct upstream of air filter (1). Engine 260 in model 118 up to model year 2022 except code M016 (Uprated engine)
Engine 260 in model 177, 247 up to model year 2021 except code M016 (Uprated engine)

3 Remove charge air hose (2). Engine 260 in model 118 up to model year 2022 except code M016 (Uprated engine)
Engine 260 in model 177, 247 up to model year 2021 except code M016 (Uprated engine)
AR09.41-P-1311-01AL
    SPECIAL TOOL Set of protective covers Fig 4
4 Remove engine air intake duct downstream of air filter (4). INSTALLATION IMPORTANT : Do not install upper engine cover until after the leak test. AR09.40-P-6045MFC
5 Remove heat shields (6) from exhaust gas turbocharger with exhaust manifold (29).   AR09.10-P-8130MFC
6 Release and disconnect electrical connector (10).
7 Unscrew screws (8) and remove lower heat shield (9). TORQUE SPECIFICATION Bolt/nut, heat shield to turbocharger *BA09.40-P-1009-02G
8 Remove screws (11). TORQUE SPECIFICATION Bolt, coolant return line to oil line *BA09.40-P-1003-02G
    TORQUE SPECIFICATION Bolt, feed line/return line to turbocharger/crankcase *BA09.40-P-1002-02G
9 Remove coolant lines (13, 31) at exhaust gas turbocharger with exhaust manifold (29) and place to one side. INSTALLATION IMPORTANT : Replace seals.
    SPECIAL TOOL Assembly tool Fig 2
    SPECIAL TOOL Record plug Fig 3
10 Unscrew screws (14) and remove oil feed line (15). INSTALLATION IMPORTANT : Replace seals.
    TORQUE SPECIFICATION Bolt, feed line/return line to turbocharger/crankcase *BA09.40-P-1002-02G
    SPECIAL TOOL Assembly tool Fig 2
    SPECIAL TOOL Record plug Fig 3
11 Unscrew screws (16) and remove oil return feed line (17). INSTALLATION IMPORTANT : Replace seals.
    TORQUE SPECIFICATION Bolt, feed line/return line to turbocharger/crankcase *BA09.40-P-1002-02G
    SPECIAL TOOL Assembly tool Fig 2
    SPECIAL TOOL Record plug Fig 3
12 Remove catalytic converter (30) from engine and at exhaust gas turbocharger with exhaust manifold (29). IMPORTANT The screws from the catalytic converter (30) to the exhaust system remain on the vehicle. AR49.20-P-0100MFC
13 Remove screw (18) from upper holder (19). TORQUE SPECIFICATION Bolt, holder for heat shield on exhaust gas turbocharger to cylinder head *BA09.40-P-1007-02G
14 Remove nut (20) and remove upper holder (19). TORQUE SPECIFICATION Nut, holder for heat shield to exhaust gas turbocharger *BA09.40-P-1006-02G
15 Remove nuts (32 to 39) with retaining plates at exhaust gas turbocharger with exhaust manifold (29) in reverse numerical sequence. INSTALLATION IMPORTANT : Replace nuts (32 to 39) with retaining plates.
TORQUE SPECIFICATION Nut, turbocharger/exhaust manifold to cylinder head
*BA09.40-P-1001-02G
16 Remove nut of support (41) at exhaust gas turbocharger with exhaust manifold (29). TORQUE SPECIFICATION Nut, turbocharger support brace to turbocharger *BA09.40-P-1004-02G
17 Remove screw (40) and remove support (41). TORQUE SPECIFICATION Bolt, turbocharger support brace to crankcase *BA09.40-P-1005-02G
18 Slightly press catalytic converter (30) to side and remove exhaust gas turbocharger with exhaust manifold (29). INSTALLATION IMPORTANT : Replace seal of catalytic converter (30).
IMPORTANT Aid of helper required.

19 Remove seal (22) and check stud bolts on cylinder head for damage. INSTALLATION IMPORTANT : Replace seal (22).
TORQUE SPECIFICATION Stud bolt for exhaust manifold
If there are problems on the stud bolts on the cylinder head:

Replace stud bolts on cylinder head.
*BA01.30-P-1004-01Y
20 Install in the reverse order.
INSPECT Check
21 Check engine oil level and correct if necessary.
REFER TO MAINTENANCE   NOTES Vehicle must be horizontal and standing on its wheels.
Measurement errors occur otherwise.
NOTES Never pour in engine oil to above the maximum value.
Engine damage will occur otherwise.
AP18.00-P-1812MFA
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
22 Carry out engine test run and check function and leak tightness of the engine.
CYLINDER HEAD

Number Designation Engine 260
BA01.30-P-1004-01Y Stud bolt for exhaust manifold Nm 11
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1001-02G Nut, turbocharger/exhaust manifold to cylinder head Nm 15
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1002-02G Bolt, feed line/return line to turbocharger/crankcase Stage 1 Nm 8
Stage 2 ∠° 60
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1003-02G Bolt, coolant return line to oil line Nm 5
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1004-02G Nut, turbocharger support brace to turbocharger Nm 30
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1005-02G Bolt, turbocharger support brace to crankcase Stage 1 Nm 15
Stage 2 ∠° 90
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1006-02G Nut, holder for heat shield to exhaust gas turbocharger Nm 30
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1007-02G Bolt, holder for heat shield on exhaust gas turbocharger to cylinder head Nm 20
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1009-02G Bolt/nut, heat shield to turbocharger Nm 8
Fig 2: Identifying Assembly Tool (000 589 93 63 00)
G12939678Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Set Of Protective Covers (001 589 12 91 00)
G14790201Courtesy of MERCEDES-BENZ USA
