Remove/Install Boost Pressure Control Flap Actuator - AR09.50-P-8845MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118 up to model year 2022
Engine 260 in model 177, 247 up to model year 2021

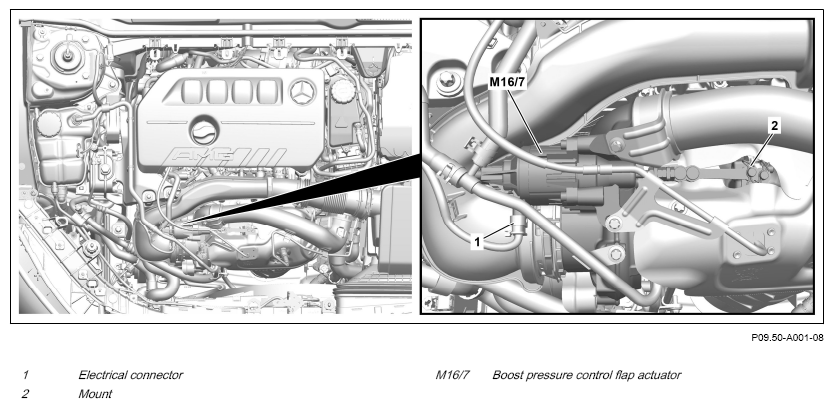

Fig 1: Boost Pressure Control Flap Actuator Components Location - Engine 260 In Model 118 Up To Model Year 2022 (Shown With Code M016)
Shown on engine with code M016 (Uprated engine)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove engine air intake duct downstream of air filter. | AR09.10-P-8130MFC | |
| 2 | Remove upper heat shield from exhaust gas turbocharger. | Engine 260 in model 118 up to model year 2022 except code M016 (Uprated engine) Engine 260 in model 177, 247 up to model year 2021 except code M016 (Uprated engine) | AR09.40-P-6045MFC |
| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Remove mount (2). | ||

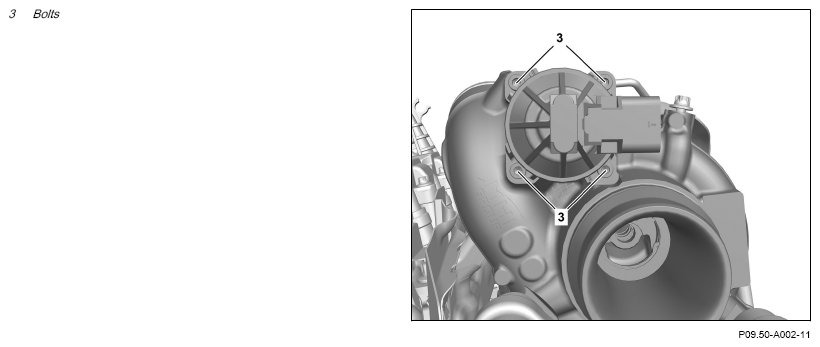

| 5 | Remove screw/bolts (3). | *BA09.40-P-1011-02G | |
| 6 | Remove boost pressure control flap actuator (M16/7). | ||
| 7 | Install in the reverse order. | ||
| 8 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA |
TURBOCHARGER
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BA09.40-P-1011-02G | Screw, boost pressure control flap actuator to exhaust gas turbocharger | Nm | 3 |
