Remove/Install Boost Pressure Control Flap Actuator - AR09.50-P-8845MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118 as of model year 2023
Engine 260 in model 177, 247 as of model year 2022

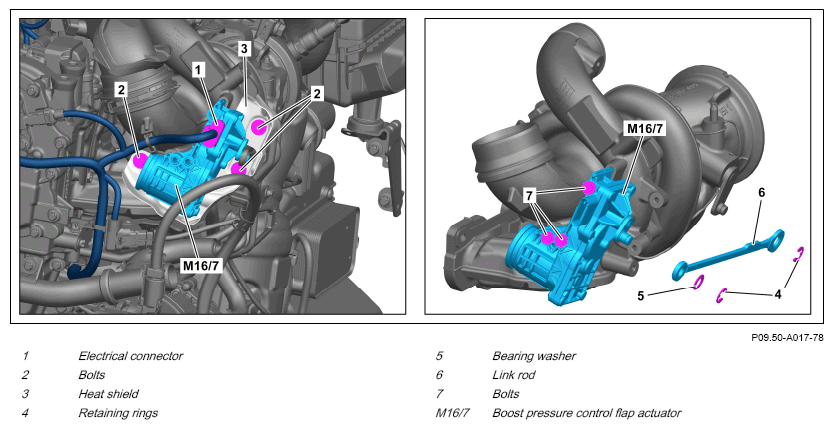

Fig 1: Boost Pressure Control Flap Actuator Components Location - Engine 260 In Model 118 As Of Model Year 2023
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove heat shield from exhaust gas turbocharger. | AR09.40-P-6045MFC | |
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Unscrew screws (2) and remove heat shield (3). | *BA09.40-P-1009-02G | |
| 4 | Remove retaining rings (4) using suitable tool. | ||
| 5 | Remove bearing washer (5). | ||
| 6 | Remove link rod (6). | ||
| 7 | Remove screws (7). | *BA09.40-P-1011-02G | |
| 8 | Remove boost pressure control flap actuator (M16/7) from exhaust gas turbocharger. | ||
| 9 | Install in the reverse order. |
TURBOCHARGER
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BA09.40-P-1009-02G | Bolt/nut, heat shield to turbocharger | Nm | 8 |
TURBOCHARGER
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BA09.40-P-1011-02G | Screw, boost pressure control flap actuator to exhaust gas turbocharger | Nm | 3 |
