Remove/Install Front Axle Steering Knuckle - AR33.25-P-0400MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
MODIFICATION NOTES
| 26.07.2023 | Remove nut (8) at tie rod joint and remove tie rod joint from steering knuckle (1). | Operation step 13. | |
| 18.10.2023 | Nut, spring strut to steering knuckle | Model 177, 247 (except 247.6/7) | BA32.25-P-1003-04J |

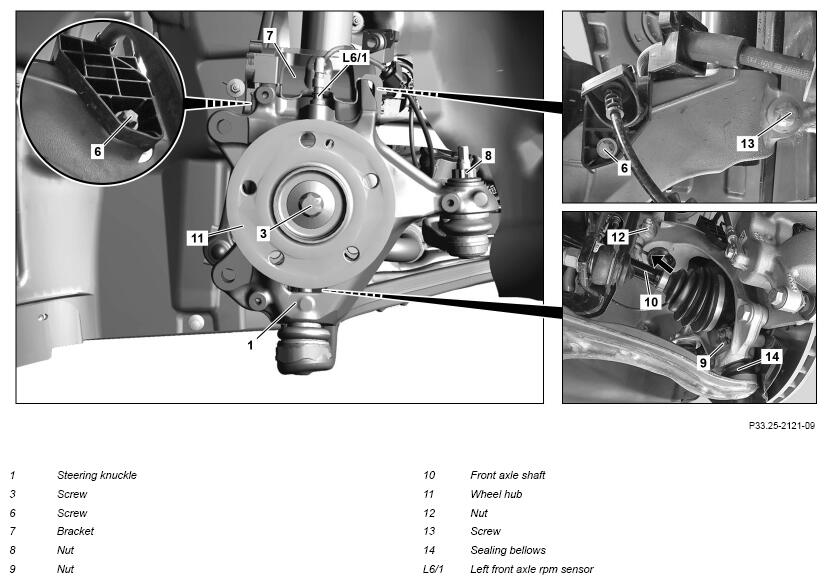

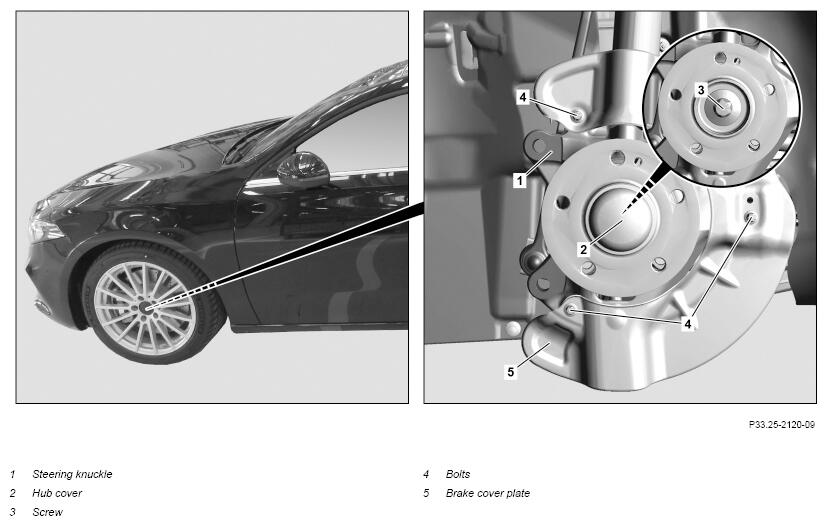

Fig 1: Front Axle Steering Knuckle Components Location - Model 118 (Shown On Model 177.0 On Left Side Of Vehicle)
Shown on model 177.0 on left side of vehicle
Shown on model 177.0 on left side of vehicle
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Move transmission to neutral position and release the parking brake. | ||
| 2 | Remove corresponding front wheel and tire assembly. | AR40.10-P-1102MFA | |
| 3 | Remove hub cap (2). | If installed. | |
| Fig 2 | |||
| 4 | Remove bolt (3). | Otherwise, the angular-contact ball bearing will be damaged. |
|
| *BA33.30-P-1001-02G | |||
| 5 | Unclip brake hose from holder (7). | ||
| 6 | Remove brake disk. | AR42.10-P-0220MFA | |
| 7 | Remove guide pin and secure brake caliper with brake hose connected to prevent it from falling down. | Model 118.351/353/354/651/653/654, 177.051/053/054/151/951, 247.651/751/753/754 This will result in damage to the brake hose and can impair its function. |
|
| Fig 5 | |||
| 8 | Remove screws (4). | *BA42.10-P-1002-06K | |
| 9 | Remove brake cover plate (5). | ||
| 10 | Remove left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2). | AR42.30-P-0713MFA | |
| 11 | Remove bolts (6). | ||
| 12 | Remove wiring harness with holder (7) from steering knuckle (1). | ||
| 13 | Remove nut (8) at tie rod joint and remove tie rod joint from steering knuckle (1). | AR46.40-P-0211MFA | |
| 14 | Remove nut (9) from supporting joint. | Otherwise, the ball head or steering knuckle (1) will be damaged. Commercially available devices/tools Combination wrench |
|
| *BA33.15-P-1005-01F | |||
Model 247.6/7 |
Fig 7 | ||
| Counterholder | |||
Model 247.6/7 |
Fig 3 | ||
| Socket wrench | |||
| 15 | Remove supporting joint from steering knuckle (1). | ||
| 16 | Release front axle shaft (10) from wheel hub (11). | Do not knock seized front axle shaft (10) out of wheel hub (11). Otherwise, the angular-contact ball bearing will be damaged. If the front axle shaft (10) is seized ↓ press front axle shaft (10) out of wheel hub (11). |
|
| Fig 6 | |||
| 17 | Unscrew nut (12) from suspension strut and remove screw (13). | *BA32.25-P-1003-04J | |
| 18 | Pull front axle shaft (10) out of wheel hub (11), place to one side and fix in place. | Do not pull front axle shaft (10) too far out of the inner constant velocity joint. Otherwise, the inner constant velocity joint will be damaged. |
|
| 19 | Spread steering knuckle (1) apart (arrow) and remove suspension strut. | Fig 4 | |
| 20 | Remove wheel hub (11) and double-row angular-contact ball bearing. | If the steering knuckle (1) is replaced. | |
| Model 118, 177, 247 | AR33.20-P-0315MFA | ||
| Model 243 | AR33.20-P-0315EQA | ||
| Check | |||
| 21 | Check condition of seal bellows (14) on supporting joint. | If any problems are found, ↓ replace transverse control arm. |
|
| 22 | Install in the reverse order. | AR33.20-P-0510MFA |
SUSPENSION STRUTS
| Number | Designation | Model 118, 247.6/7 | Model 177, 247 (except 247.6/7) | ||
|---|---|---|---|---|---|
| BA32.25-P-1003-04J | Nut, spring strut to steering knuckle | Stage 1 | Nm | 80 | 50 |
| Stage 2 | ∠° | 45 | 90 | ||
SUSPENSION STRUTS
| Number | Designation | Model 243 | ||
|---|---|---|---|---|
| BA32.25-P-1003-04J | Nut, spring strut to steering knuckle | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | 90 | ||
TRAILING ARMS, TRANSVERSE CONTROL ARMS
| Number | Designation | Model 118, 177, 247 | Model 243 | |||
|---|---|---|---|---|---|---|
| BA33.15-P-1005-01F | Nut, supporting ball joint/transverse control arm to steering knuckle | M14 | Stage 1 | Nm | 90 | 90 |
| Stage 2 | ∠° | 90 | 90 | |||
FRONT AXLE SHAFT
| Number | Designation | Model 118, 177, 247 | Model 243 | |||
|---|---|---|---|---|---|---|
| BA33.30-P-1001-02G | Bolt, front axle shaft to wheel bearing | M14 | Stage 1 | Nm | 100 | 100 |
| Stage 2 | ∠° | 45 | 45 | |||
BRAKE DISKS, BRAKE COVER PLATE
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA42.10-P-1002-06K | Bolt, front axle brake cover plate to steering knuckle | M6 | Nm | 20 | 20 |
BRAKE DISKS, BRAKE COVER PLATE
| Number | Designation | Model 243 | Model 247 | ||
|---|---|---|---|---|---|
| BA42.10-P-1002-06K | Bolt, front axle brake cover plate to steering knuckle | M6 | Nm | 20 | 20 |
