Remove/Install Front Axle Wheel Hub And Double-Row Angular-Contact Ball Bearing - AR33.20-P-0315MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
Shown on left side of vehicle, model 177.0

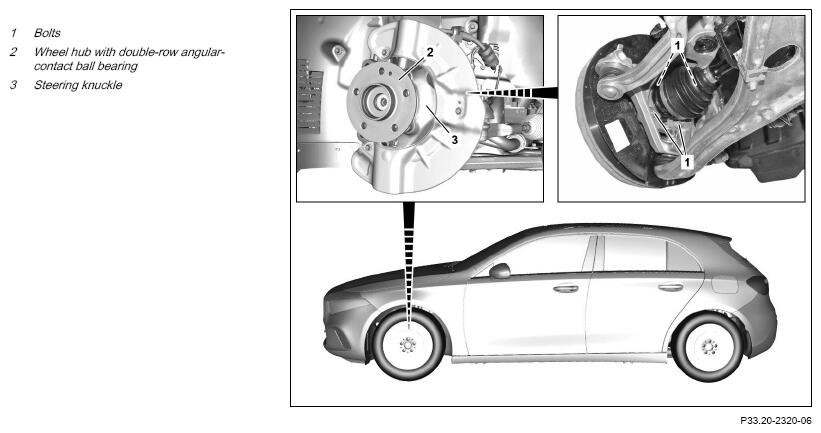

Fig 1: Front Axle Wheel Hub And Bearing Components Location - Model 118 (Shown On Left Side On Model 177.0)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove left or right front brake disk. | AR42.10-P-0220MFA | |
| 2 | Remove front axle shaft. | AR33.30-P-0620MFA | |
| 3 | Remove bolts (1). | ||
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| *BA33.20-P-1001-02D | |||
| 4 | Remove wheel hub with double-row angular-contact ball bearing (2). | ||
| 5 | Install in the reverse order. |
FRONT AXLE WHEEL BEARING
| Number | Designation | Model 118, 177, 243, 247 | |||
|---|---|---|---|---|---|
| BA33.20-P-1001-02D | Bolt, wheel bearing to steering knuckle | M12 | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | 45 | |||
