Remove/Install TV Antenna Amplifier Under Left A-Pillar Trim - AR82.62-P-8308MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
with code 498 (Japanese version)
with code 865 (digital TV)
Shown on model 177.0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left A-pillar trim. | AR68.30-P-4050MFA | |
| 2 | Loosen screw/bolt (1). | ||

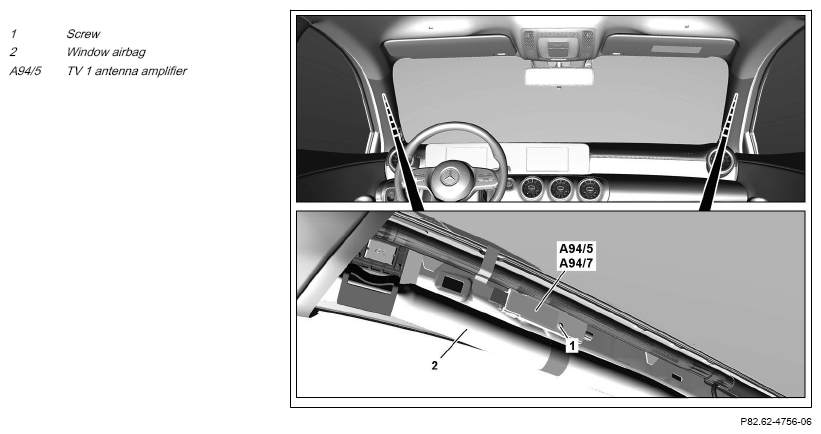

| 3 | Unclip TV 1 antenna amplifier (A94/5) and release and disconnect electrical connector. | Fig 1 | |
| 4 | Install in the reverse order. |
