Turn Engine To Top Dead Center Position - AR01.10-P-1000-01MT

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 133, 260, 270

Fig 1: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on Engine 260

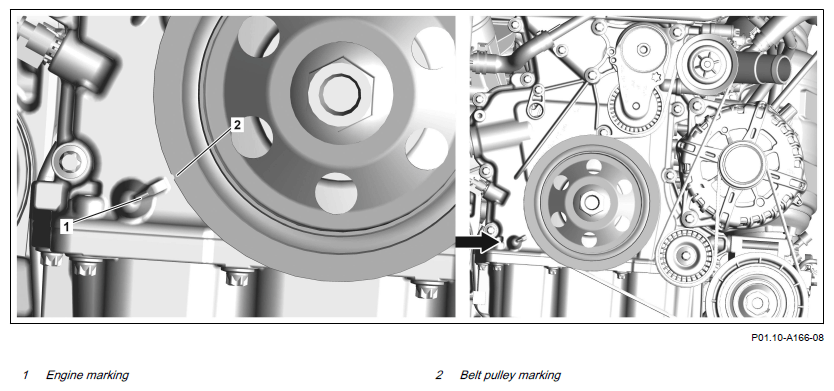

Turn Engine at the center bolt with the socket wrench socket in the direction of Engine rotation until the marking on the belt pulley (2) matches the marking on the Engine (1).
Do not turn Engine against the direction of Engine rotation.

Otherwise, the timing chain will jump and Engine damage will occur.

Check the precise alignment of the marking on the belt pulley (2) and the marking on the Engine (1) using a mirror.
